16

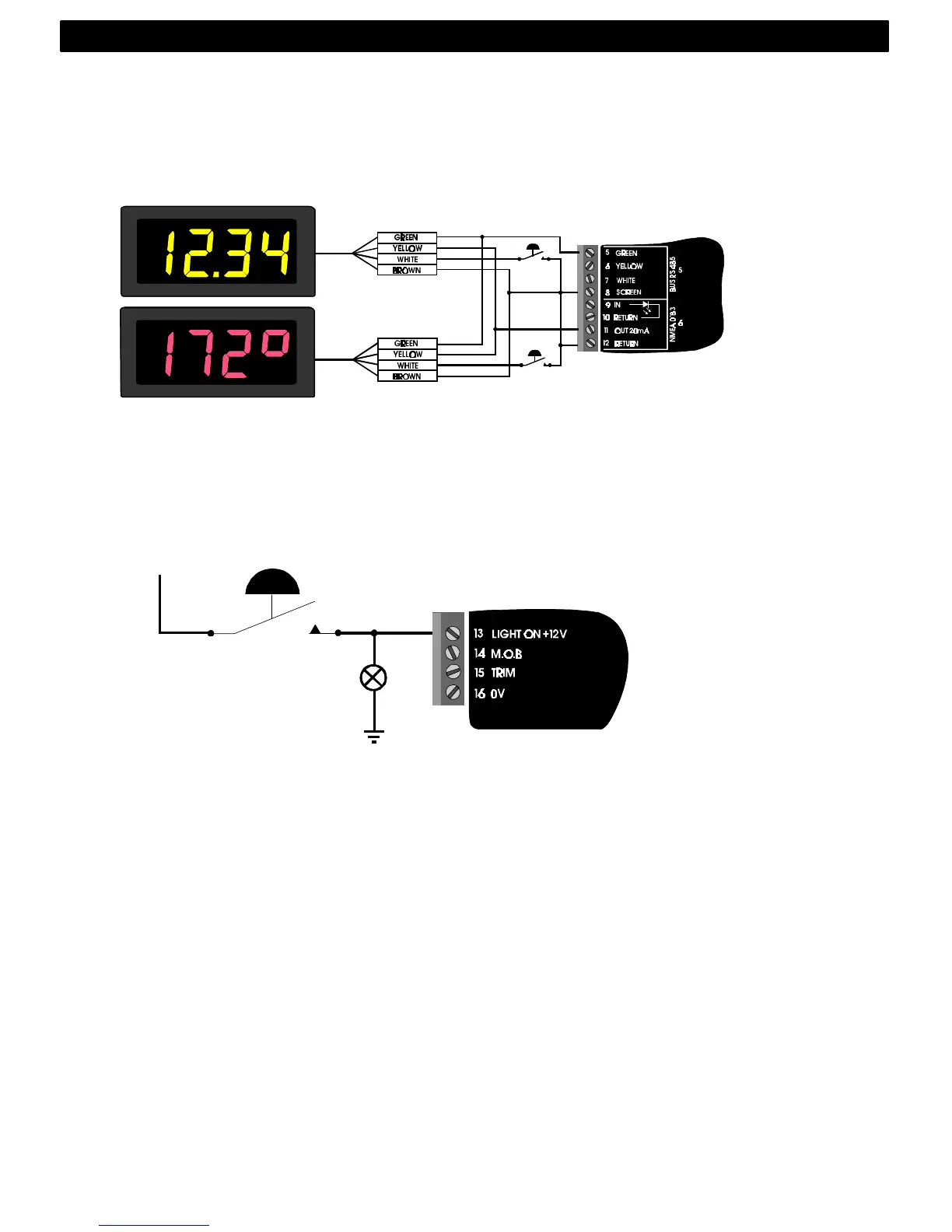

2.6.5 Maxi repeater
Electro mechanical Maxi repeaters with good readability and
contrast, digit height: 45mm Red digits Art. no. 19941. Yellow
digits Art. no. 19841. Up to 10 Maxi repeaters can be connected.
2.7 Connecting instrument lighting
The instrument lighting can be controlled from the boats general
lighting switch.
Connect the wire from the electrical panels instrument light switch
to Server pin 13 (LIGHT ON +12 V).
2.8 Connecting a NMEA instrument IN to the Server
Products transmitting NMEA, for example:
GPS, Decca, Loran, NMEA compass and wind transducer etc.
If a NMEA instrument is connected, most information will be
available and can be displayed on the Nexus Network.
You must know which 2 cables from your other NMEA instrument
carry the NMEA out signal. If you have trouble call the dealer you
bought your NMEA instrument from. He should know the wiring
colour and will probably sell the ”plug set” which may be required.
We do not have this information.
Connect NMEA out signal from the NMEA instrument to Server pin
9 (IN).
Connect NMEA return signal from the NMEA instrument to Server
pin 10 (RETURN). (For list of NMEA receive sentences, see
12.6.3).
INSTALLATION
+12 V
Compass
light
