Nexus Multi Control - Compass Calibration; C41 (0.10 Arc); C42 (Rdr). C43 (Ap1). C44 (Ap2); C45 (Pilot SEA)

60
12.3.12 C41 (0.10 ARC)
Arrival Circle. Set the radius of the arrival circle, from 0,01 to 9,99
NM.
12.3.13 C42 (RDR). C43 (AP1). C44 (AP2)
These 3 calibration codes are reserved for the Nexus autopilot: .
12.3.14 C45 (Pilot SEA)
Damping for the optional analogue steer pilot instrument.
LOW = 1.3 sec, MID = 2.8 sec. and MAX = 11 sec.
(Available for analogue steer pilot instruments, from version 1.3).
12.3.15 C46 (000 LGD)
Local geodetic datum. Used to set local geodetic datum for
the Nexus GPS antenna from the Multi Control instrument.
A list for geodetic datum is supplied with each Nexus GPS
antenna.
The antenna is factory set for local geodetic datum WGS-84.
12.3.16 C47 (OFF MAG)
(Available from Multi version 2.0)
(ON) = All headings and bearings will be magnetic.
(OFF) = All headings and bearings will be true.
Note a: In the (Goto WP) function, the bearing for every leg will
always be displayed as true bearing.
Note b: The setting is only affects the independent Multi Control
instrument in which is set.
12.4 12.4 Compass calibration
12.4.1 Automatic compass deviation compensation (Auto DEV)
(Auto DEV) is performed by driving the boat in a circle up to 1¼
turn, so that the magnetic deviation can be measured, and by that
lso compensated.
Select calibration code C33 (Auto DEV).

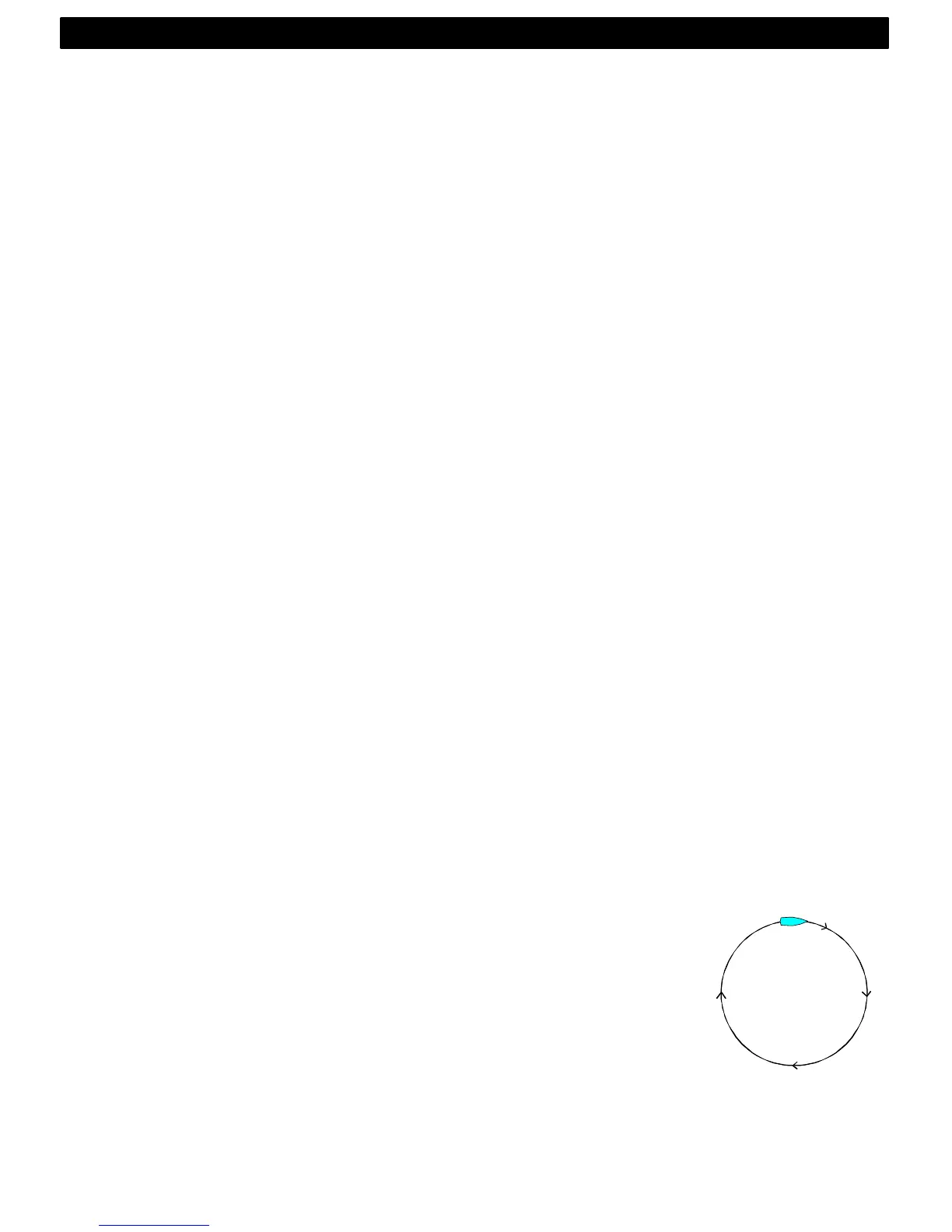

Drive the boat in a circle for 1 1/4 turn in calm water. When you
start the circle manoeuvre, press KEY.
The un-deviated compass course will be shown in the display as
you turn. Complete the circle up to 1 ¼ turn.
When the manoeuvre is ready, press KEY to store the deviation
value.
If the deviation is corrected (Auto DEV) will be displayed.
CALIBRATION
