8.5 General Specifications
DF1906
8-9

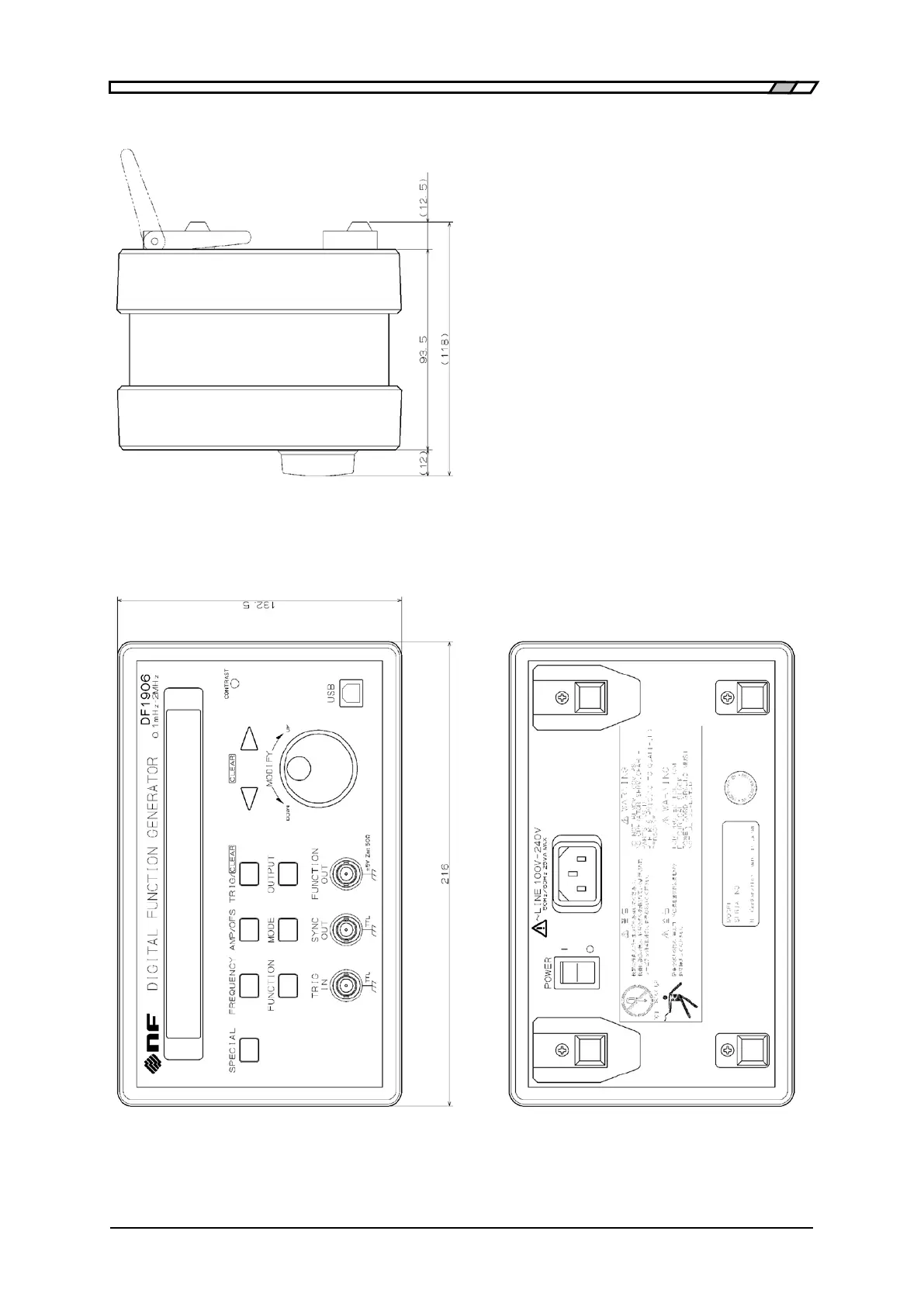

Figure 8-1 External Dimensions Diagram
Surface Treatment
Front Panel: Plastic sheet, ultra-light gray (Munsell 6PB9 2/0.1)
Rear Panel: Paint, light gray (Munsell 6PB7 6/1.2 semi gloss)
Cover: Paint, light gray (Munsell 6PB7 6/1.2 leather tone)
