Nibe FIGHTER 1140 - Option 1 Immersion Heater and Water Heater

Docking
25
FIGHTER 1140

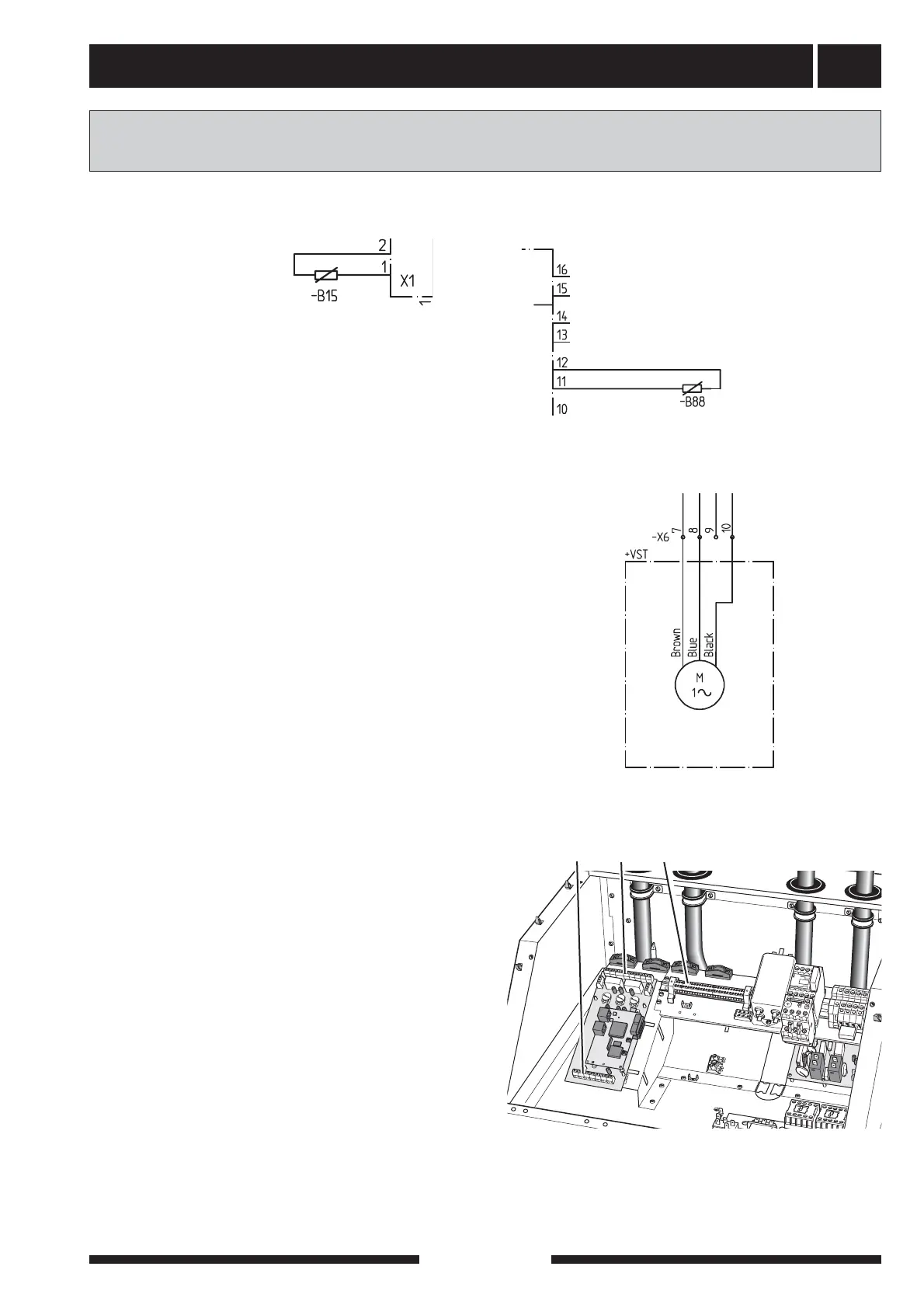

Option 1 - FIGHTER 1140 docked with immersion heater
and hot water heater (floating condensing)
* Accessories. The figures show how the connection
should appear when completed. For full information
about the connections see respective “Installation
instructions”.
X4
Connection of the outside temperature
sensor
Connection of hot water sensor
Connection VST 11*
Outside temperature
sensor (UG)
Shuttle valve
Hot water, jacket (VVG)
-M19
X4
X1
-X6
