Nidec MCE iControl User Manual

System Options
5-30 Manual # 42-02-7223 C1

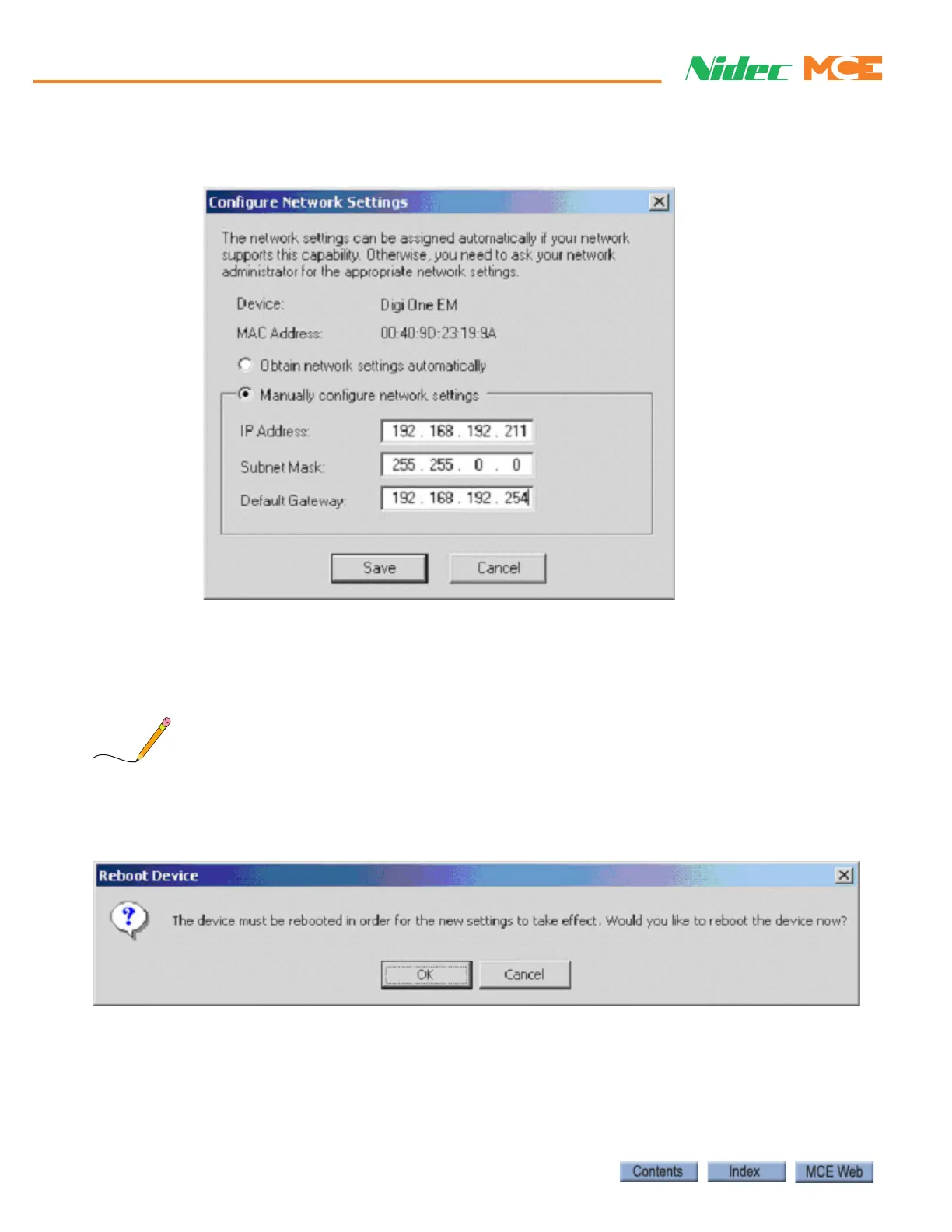

3. In the Configure Network Settings dialog that appears, select Manually configure net-
work settings.
4. Check the drawing package for the dispatcher or the Ethernet Address examples draw-
ing in the manual.
5. If the IP address of the device is incorrect, set it appropriately.
Note
When entering the IP address, do not enter leading zeros. For example, in the address 192.168.192.056,
056 is entered as 56, with no leading zero.
6. Click Save. A Reboot Device dialog will appear:
7. Wait for ten to fifteen seconds (until the Diagnostic LED on the serial/Ethernet assem-
bly blinks for eight to ten seconds and then goes off), then click OK.
8. Restart the iCue PC.
