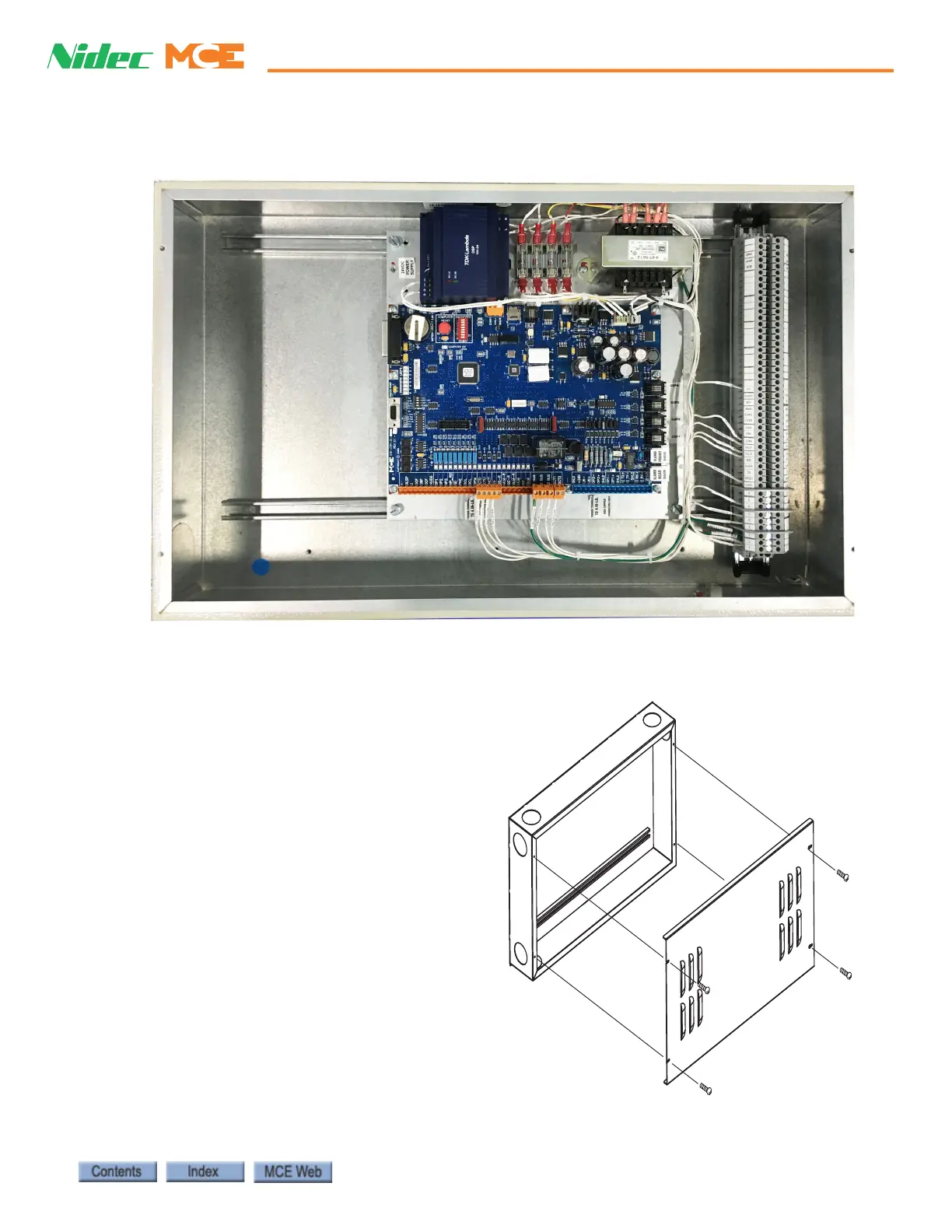

Figure 3.1 iLink Circuitry and Wiring
iLink Enclosure Installation
The iLink enclosure is typically mounted on
the left side (as you face the car) of the cartop,
opposite the iLand system. The enclosure has
several partially-punched knockouts to
accommodate two-inch conduit connections.
Mount the iLink enclosure on or between the
crosshead beams.
Vertical mounting, as shown, is preferred.
Mounting the iLink horizontally is acceptable
only if it is well protected from metal filings or
other debris that might accumulate and
damage electrical components. The
dimensions of the iLink enclosure depend
upon how many input and/or output boards
are required for a particular job.
