Chapter 5 Laser Unit

5.3 C-LU3EX Three-laser Unit EX

1-141

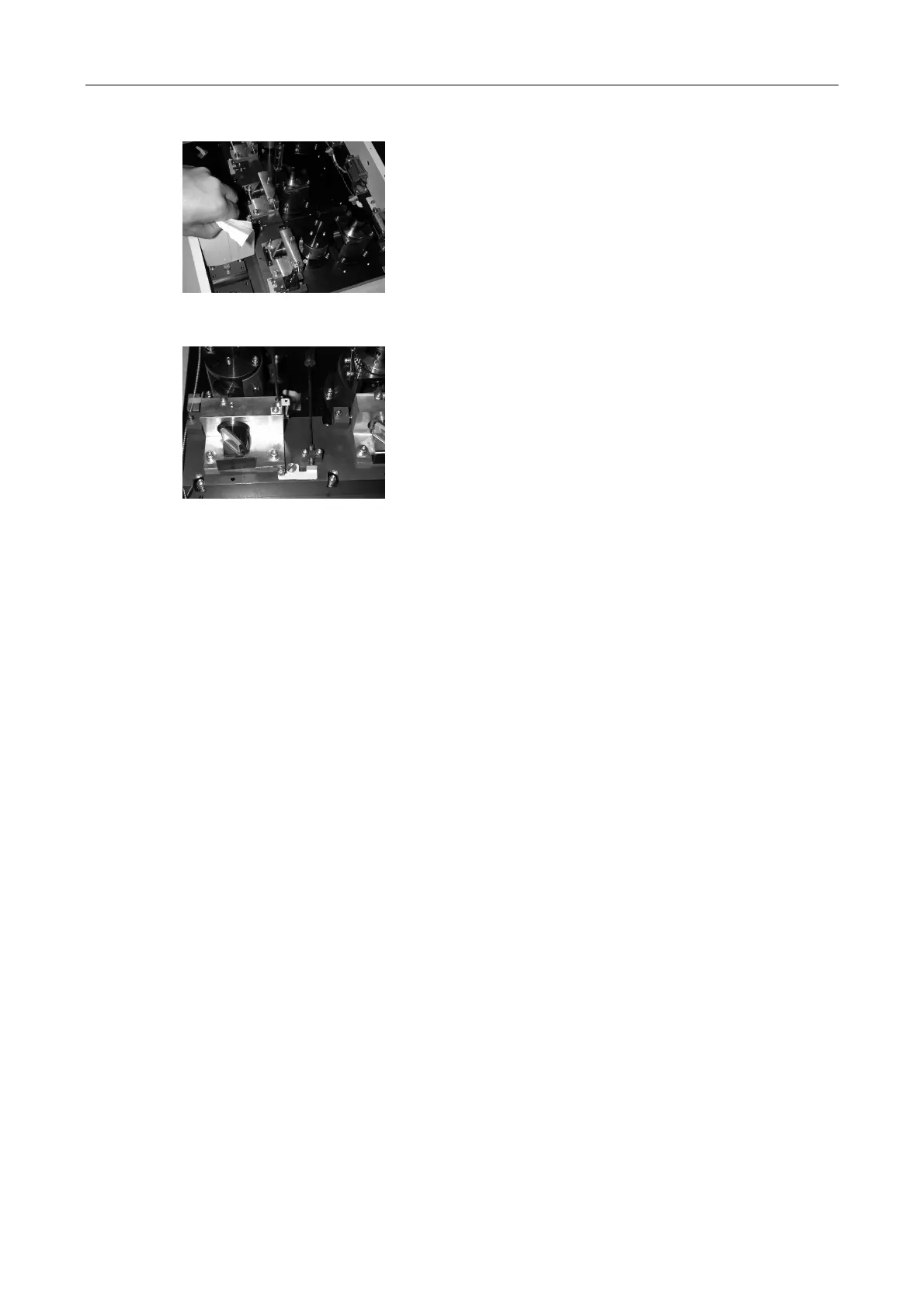

Figure 5.3-44

5. Adjust the vertical axis setscrew and align the

vertical axis of the laser light with the tool opening

position.

Figure 5.3-45

6. Carefully tighten the horizontal clamp screws.

7. If the beam becomes misaligned from the center

after tightening, fine-adjust the vertical setscrew to

align the beam with the tool opening.

8. Carefully tighten the vertical clamp screw.

This completes the adjustment of the Ar dichroic mirror adjustment unit.
