Chapter 5 Laser Unit
5.5 Setting Up the LU-LR Four-laser PS Rack
1-204
2. Positions of cables

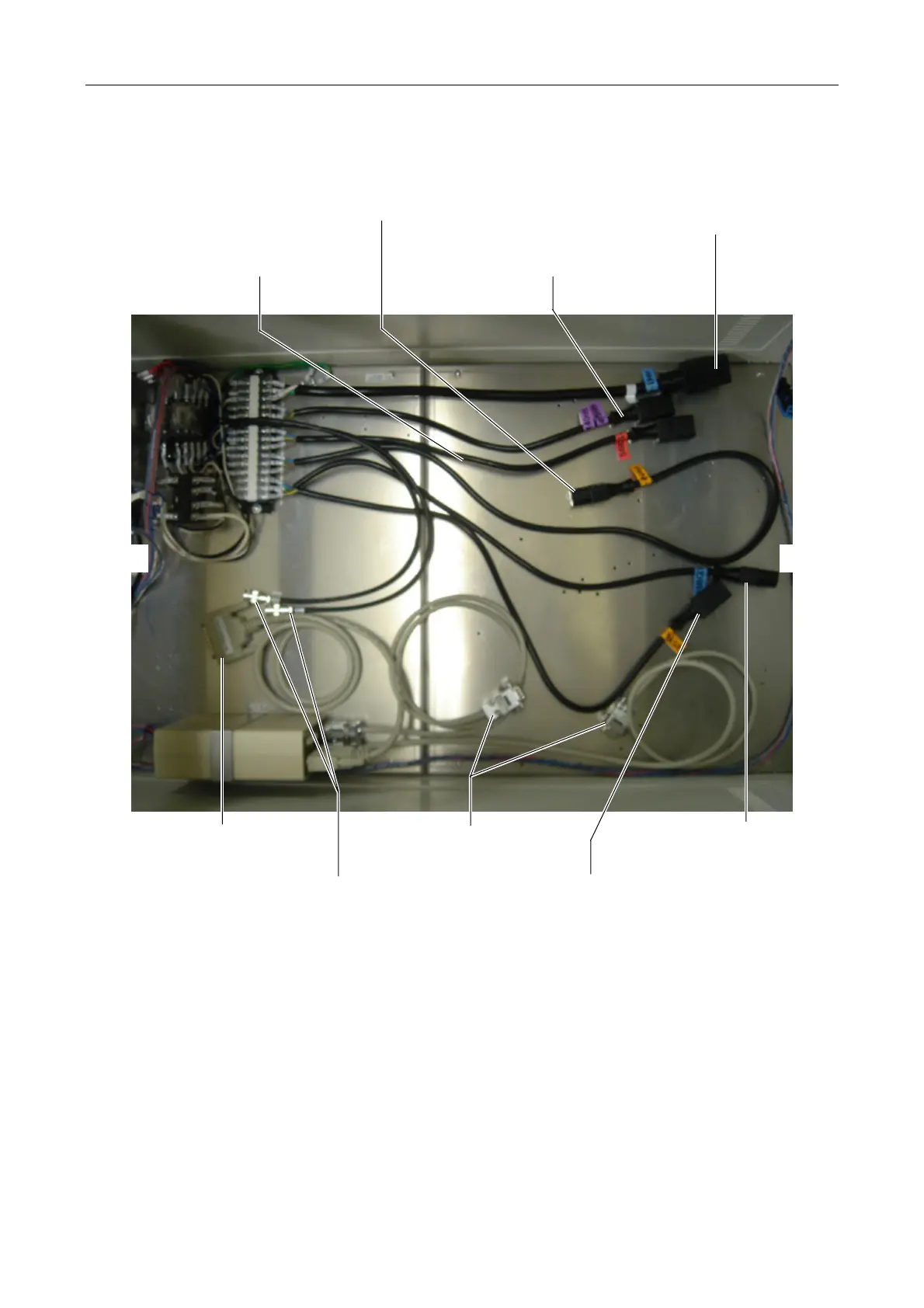

Figure 5.5-14
[1] Laser diode power cable
(56ICS-638nm)
[5] RC cable for the Ar laser
(IMA REMOTE CONT)
Front
Rear
[2] Laser diode power cable
(56ICS-405nm, 56ICS-440nm)
[3] Ar laser power cable
(IMA Ar Laser)
[4] HeNe laser power cable
(HeNe 543 nm)
[6] IT cables for the DPSS laser
(85BCD/YCA INTERLOCK)
[7] RC cables for the DPSS laser
(85BCD/YCA RS232C)
[8] DPSS laser power cable
(85YCA-561nm)
[9] DPSS laser power cable
(85BCD-488nm)
