2 Getting to Know the Camera
The Camera Body (Continued)

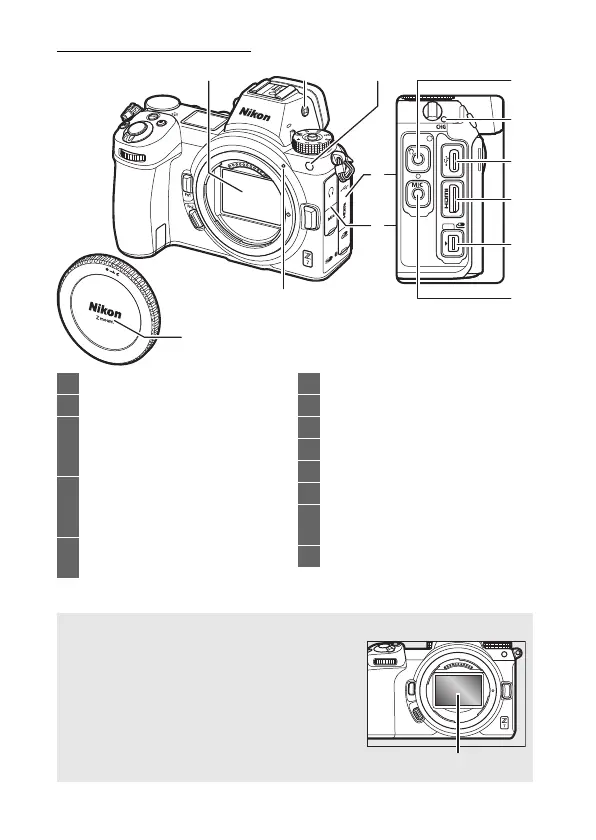

1 Image sensor ............................... 419
2 Monitor mode button ...........8, 296
3 AF-assist illuminator ............43, 254
Red-eye reduction lamp
... 105, 352
Self-timer lamp ..............................84
4 Cover for accessory terminal
and USB and HDMI
connectors
5 Cover for headphone and
microphone connectors
6 Lens mounting mark ....................36
7 Headphone connector.............. 243
8 CHARGE lamp.................................29
9 USB connector .......... 335, 411, 415
10 HDMI connector ....... 343, 411, 415
11 Accessory terminal..................... 411
12 Connector for external
microphone ............................... 411
13 Body cap.................................36, 411
D Do Not Touch the Image Sensor
Under no circumstances should you exert
pressure on the image sensor, poke it with
cleaning tools, or subject it to powerful air
currents from a blower. These actions could
scratch or otherwise damage the sensor. For
information on cleaning the image sensor,
see “Image Sensor Cleaning” (0 419).
