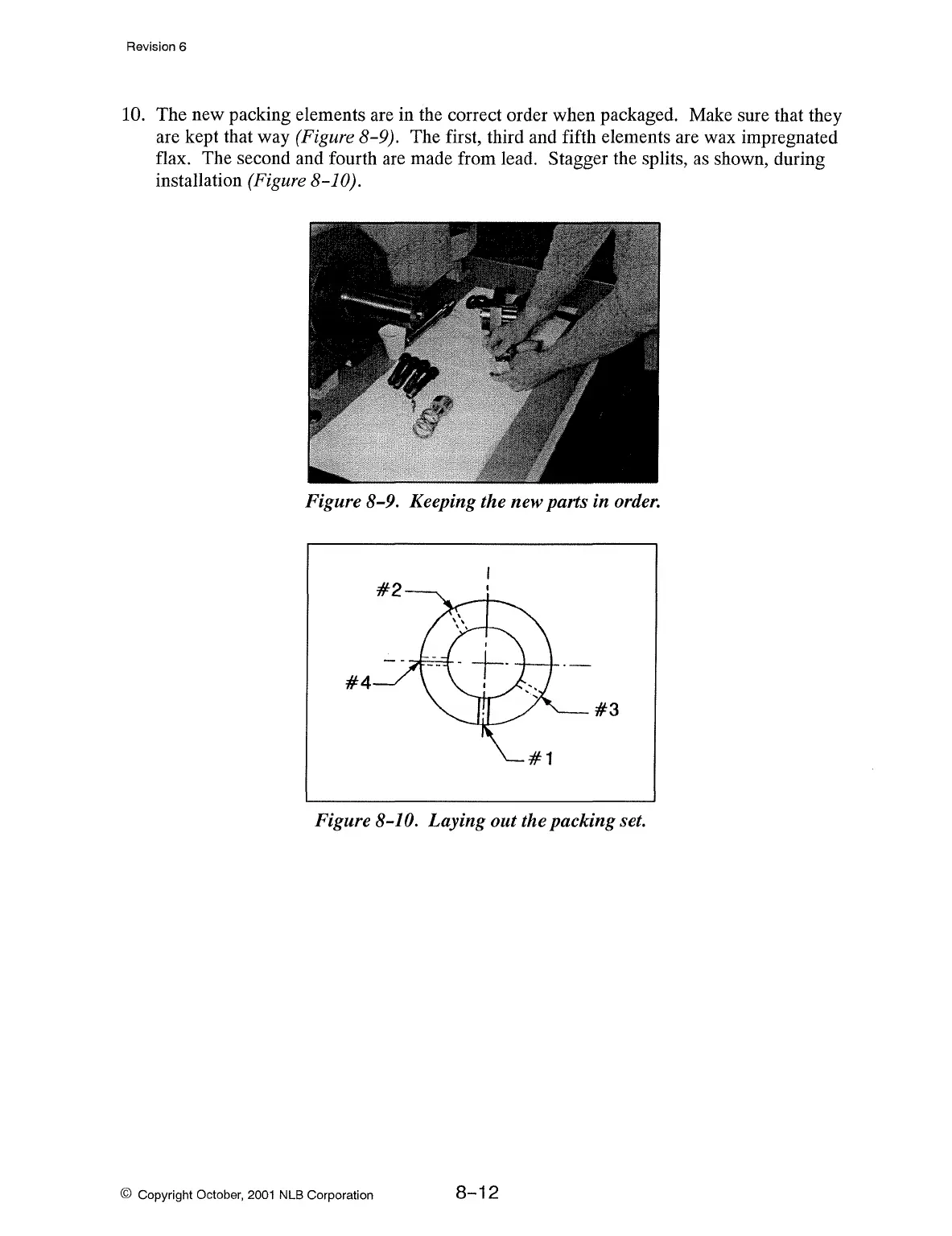

10. The new packing elements are in the correct order when packaged. Make sure that they
are kept that way
(Figure 8-9). The first, third and fifth elements are wax impregnated
flax. The second and fourth are made from lead.
Stagger the splits, as shown, during
installation
(Figure 8-10).
Figure 8-9. Keeping the new parts in order.
#4
#3
Figure 8-10. Laying out the packing set.
