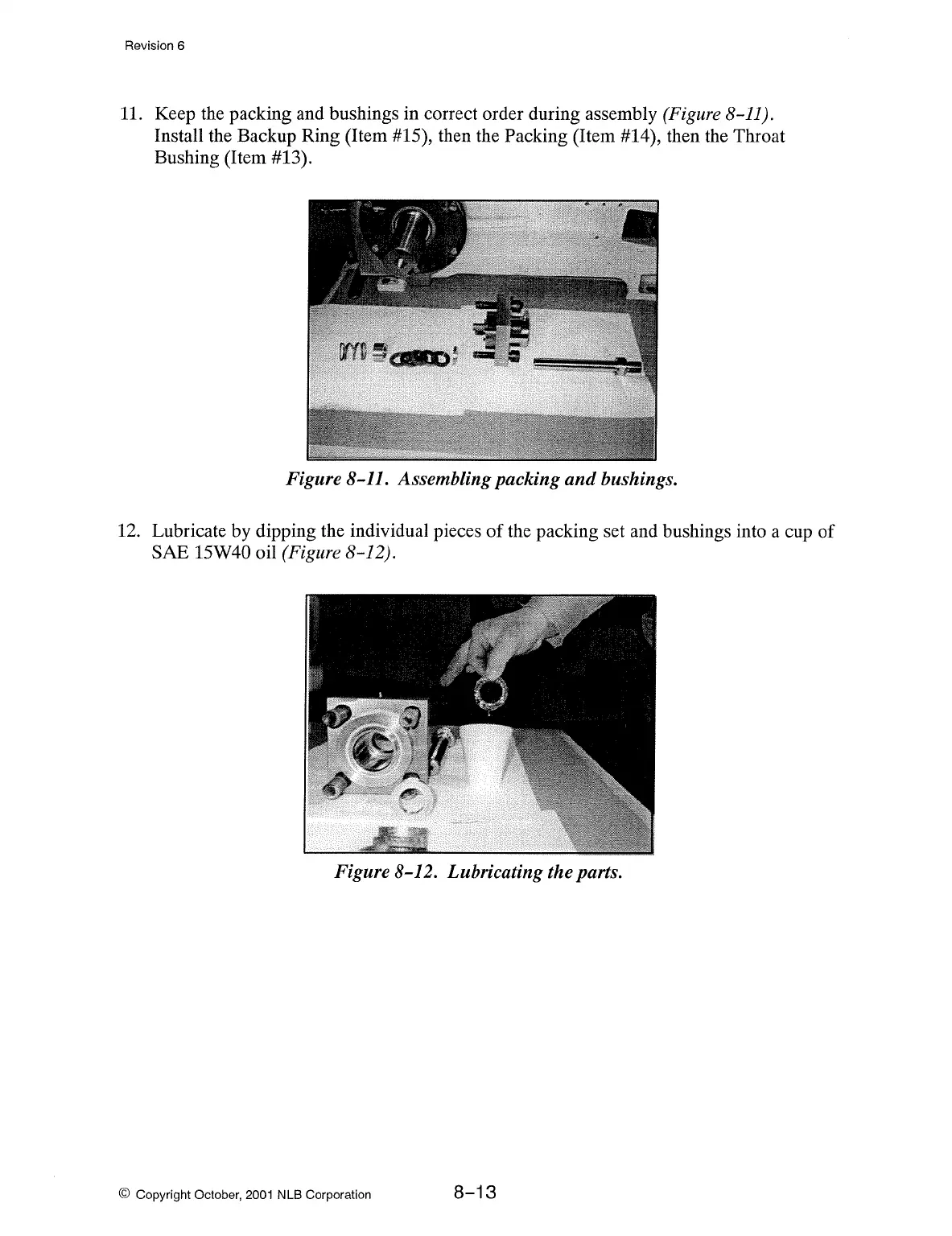

Keep the packing and bushings in correct order during assembly (Figure 8-11).
Install the Backup Ring (Item #15), then the Packing (Item #14), then the Throat
Bushing (Item #13).
Figure 8-11. Assembling packing and bushings.
12.
Lubricate by dipping the individual pieces
of
the packing set and bushings into a cup of
SAE 15W40 oil (Figure 8-12).
Figure 8-12. Lubricating the parts.
