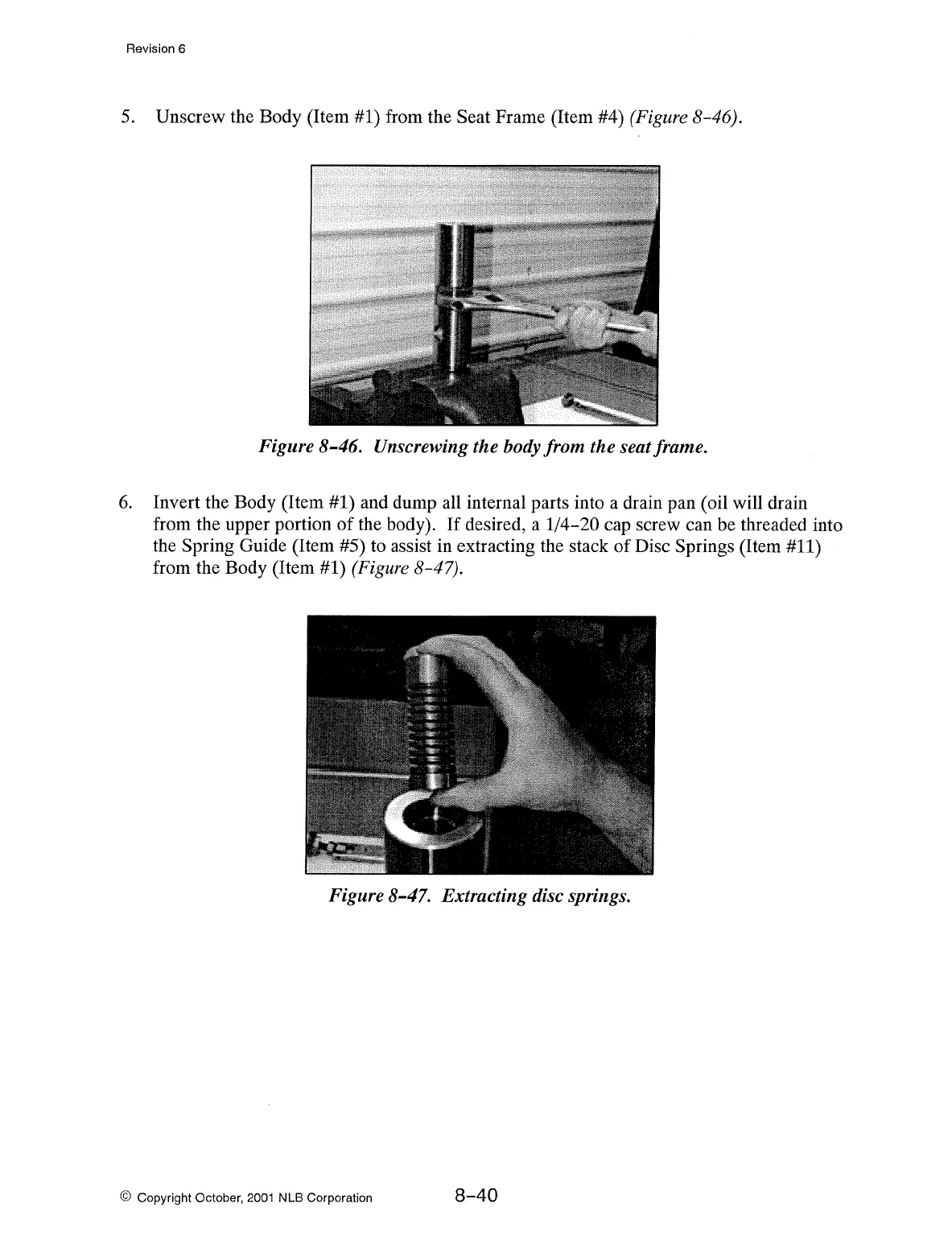

Unscrew the Body (Item #1) from the Seat Frame (Item #4) (Figure 8-46).
Figure 8-46. Unscrewing the body from the seat frame.
6.
Invert the Body (Item #1) and dump all internal parts into a drain pan (oil will drain
from the upper portion
of
the body).
If
desired, a 1/4-20 cap screw can be threaded into
the Spring Guide (Item #5) to assist in extracting the stack of Disc
Springs (Item #11)
from the Body (Item #1) (Figure 8-47).
Figure 8-47. Extracting disc springs.
