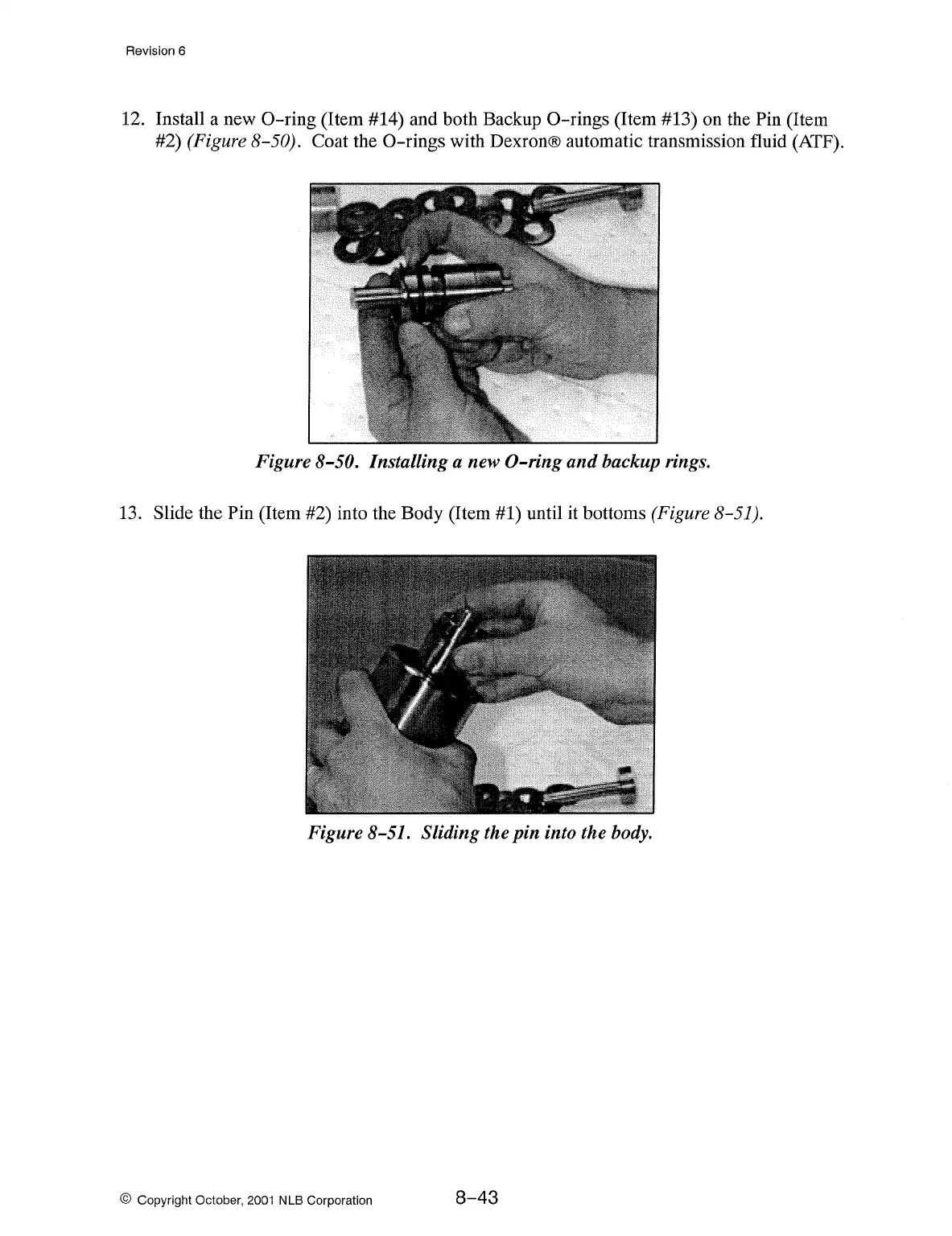

Revision 6
12.
Install a new
0-ring
(Item #14) and both Backup
0-rings
(Item #13)
on
the Pin (Item
#2) (Figure 8-50). Coat the
0-rings
with Dexron® automatic transmission fluid (ATF).
Figure 8-50. Installing a new
0-ring
and backup rings.
13.
Slide the Pin (Item #2) into the Body (Item #1) until
it
bottoms (Figure 8-51).
Figure 8-51. Sliding the pin into the body.
© Copyright October,
2001
NLB Corporation
8-43
