Revision 6

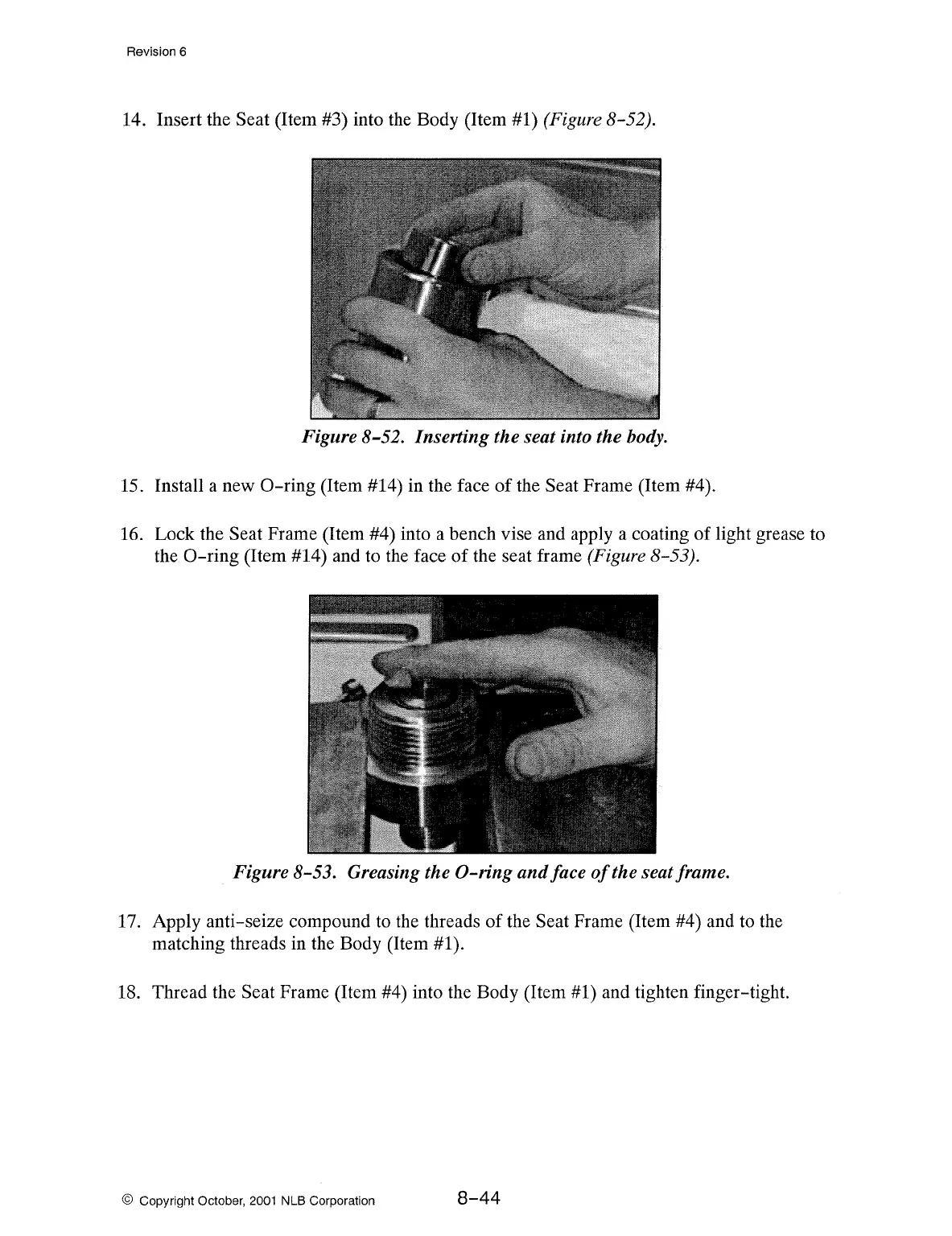

14. Insert the Seat (Item #3) into the Body (Item #1) (Figure 8-52).
Figure 8-52. Inserting the seat into the
body.
15. Install a new
0-ring
(Item #14) in the face
of
the Seat Frame (Item #4).
16. Lock the
Seat Frame (Item #4) into a bench vise and apply a coating of light grease to
the
0-ring
(Item #14) and to
the
face
of
the seat frame (Figure 8-53).
Figure 8-53. Greasing the
0-ring
and face
of
the seat frame.
17. Apply anti-seize compound to the threads of the Seat Frame (Item #4) and
to
the
matching threads in the Body (Item #1).
18.
Thread the Seat Frame (Item #4) into the Body (Item #1) and tighten finger-tight.
© Copyright October,
2001
NLB Corporation
8-44
