Revision 6

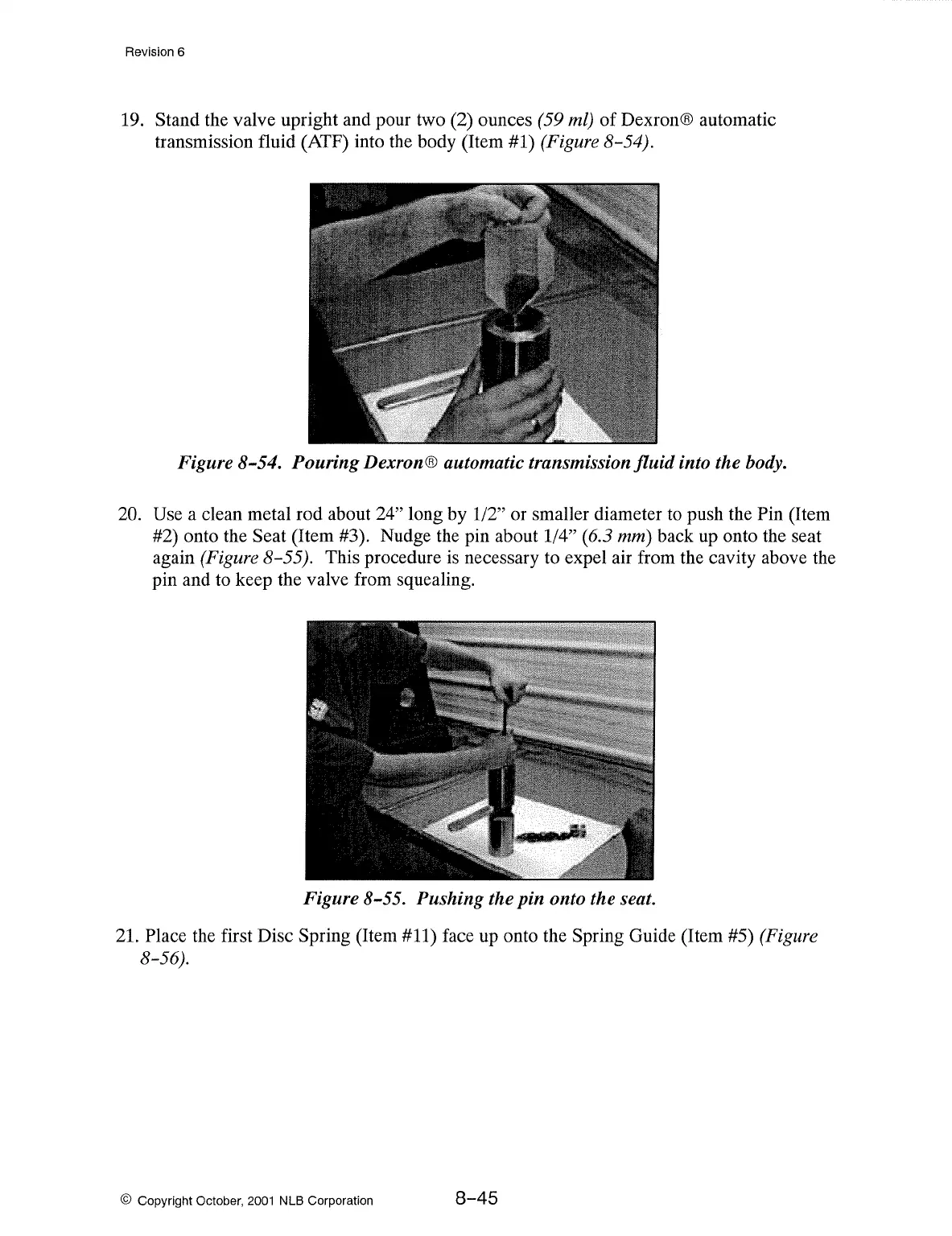

19. Stand the valve upright and pour two (2) ounces (59 ml)
of
Dexron® automatic
transmission fluid (ATF) into the body (Item #1) (Figure 8-54).
Figure 8-54. Pouring Dexron® automatic transmission fluid into the
body.
20. Use a clean metal rod about 24" long by 1/2" or smaller diameter to push the Pin (Item
#2) onto the
Seat (Item #3). Nudge the pin about 1/4" (6.3 mm) back
up
onto the seat
again (Figure 8-55). This procedure
is
necessary to expel air from the cavity above the
pin and to keep the valve from squealing.
Figure 8-55. Pushing the pin onto the seat.
21. Place the first Disc Spring (Item #11) face up onto the Spring Guide (Item #5) (Figure
8-56).
© Copyright October,
2001
NLB Corporation
8-45
