NLB 1012D - Page 152

Revision 6

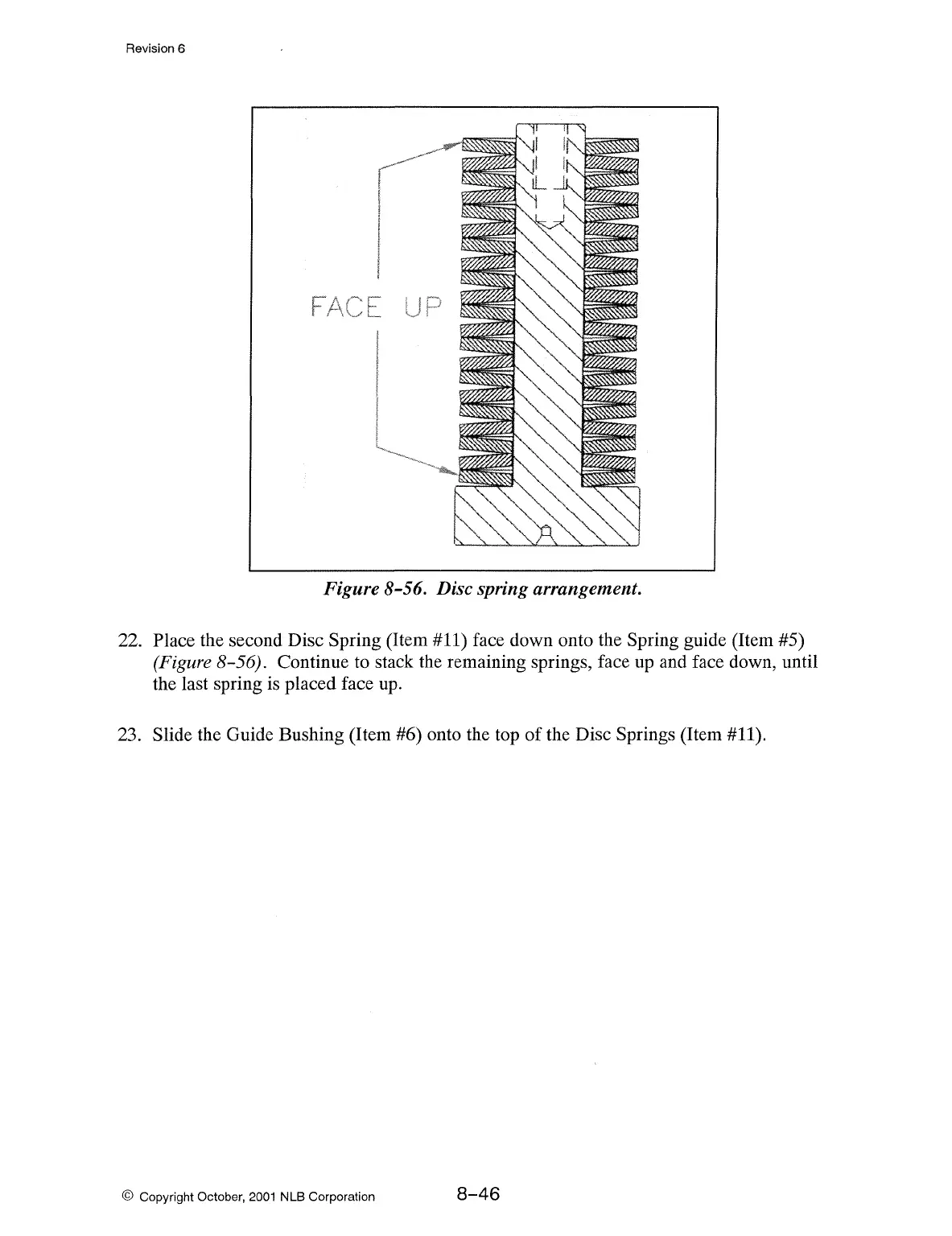

Figure 8-56. Disc spring arrangement.
22. Place the second Disc Spring (Item #11) face down onto the Spring guide (Item #5)
(Figure 8-56). Continue to stack the remaining springs, face up and face down, until
the last spring
is placed face up.
23. Slide the Guide Bushing (Item #6) onto the top of the Disc Springs (Item #11).
© Copyright October, 2001 NLB Corporation
8-46
