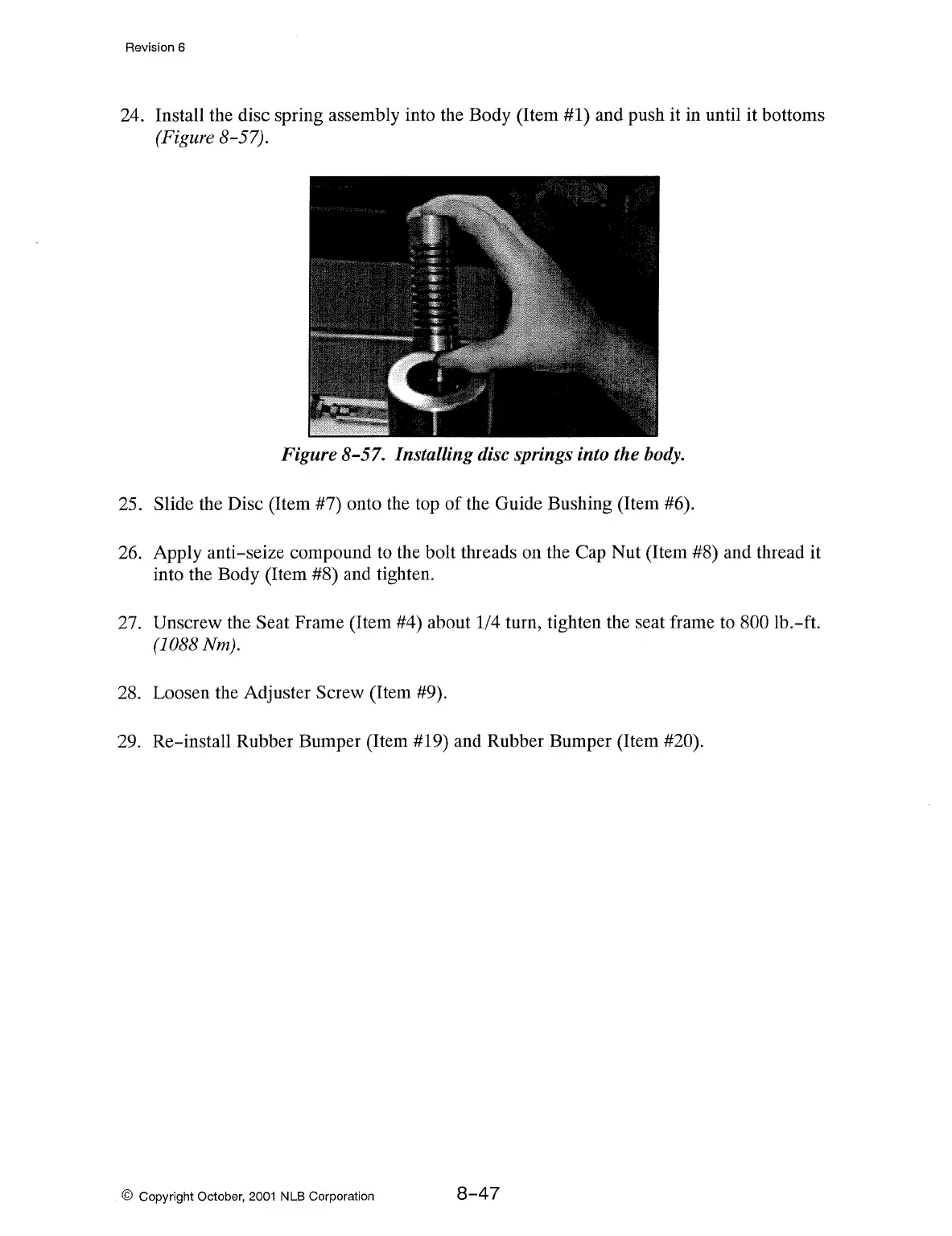

24. Install the disc spring assembly into the Body (Item #1) and push it in until it bottoms
(Figure 8-57).
Figure 8-57. Installing disc springs into the body.
25. Slide the Disc (Item #7) onto the top
of
the Guide Bushing (Item #6).
26. Apply anti-seize compound to the bolt threads on the Cap Nut (Item #8) and thread it
into the Body (Item #8) and tighten.
27. Unscrew the
Seat Frame (Item #4) about 1/4 turn, tighten the seat frame
to
800 lb.-ft.
(1088 Nm).
28. Loosen the Adjuster
Screw (Item #9).
29. Re-install Rubber Bumper (Item #19) and Rubber Bumper (Item
#20).
