Revision 6
3.

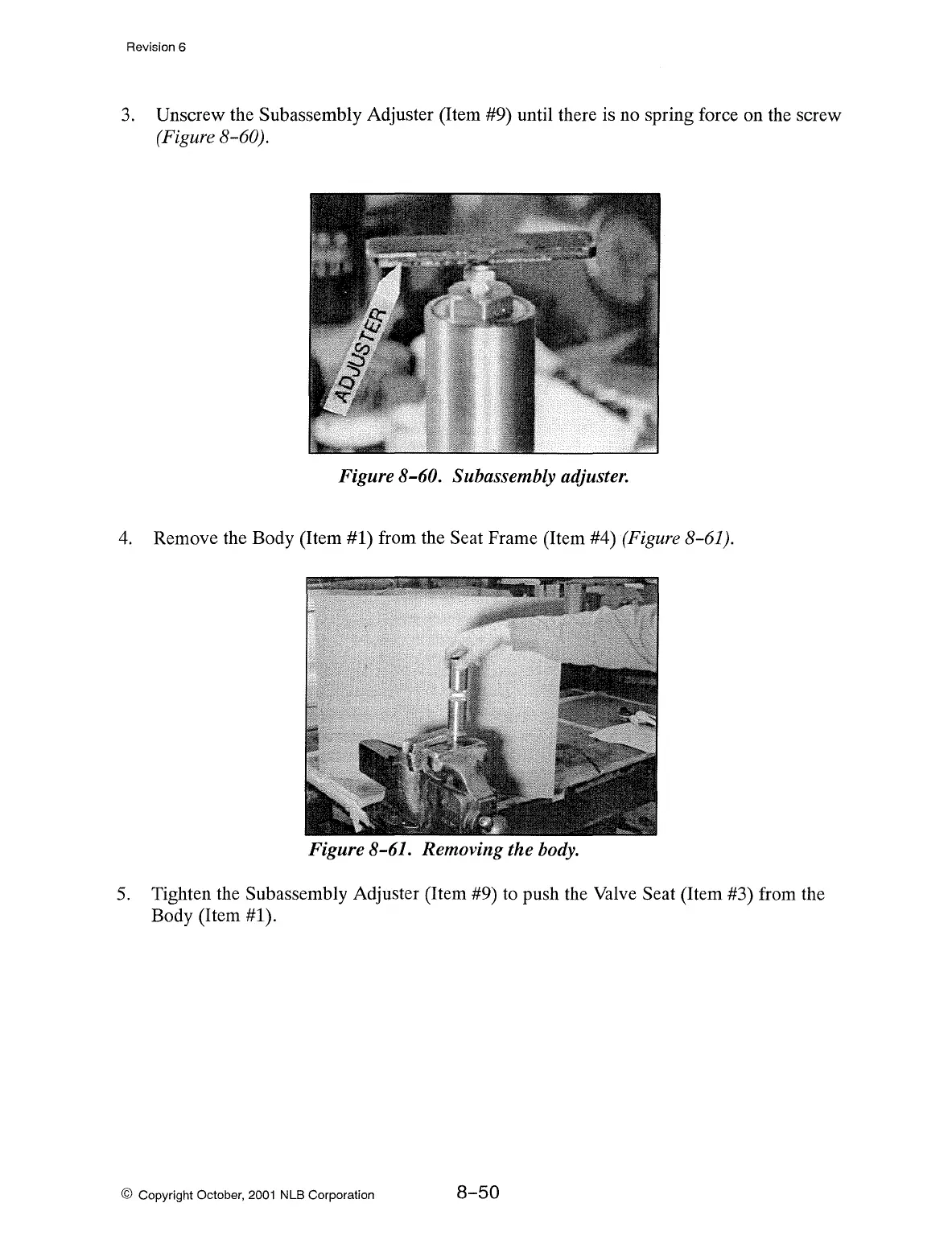

Unscrew the Subassembly Adjuster (Item #9) until there is no spring force on the screw
(Figure 8-60).
Figure 8-60. Subassembly adjuster.
4.
Remove the Body (Item #1) from the Seat Frame (Item #4) (Figure 8-61).
Figure 8-61. Removing the
body.
5.
Tighten the Subassembly Adjuster (Item #9) to push the
Valve
Seat (Item #3) from the
Body (Item #1).
© Copyright October,
2001
NLB Corporation
8-50
