7368 ISAM ONT G-240W-C Product Guide G-240W-C unit data sheet
Issue: 01 3FE-46256-AAAA-TCZZA 47

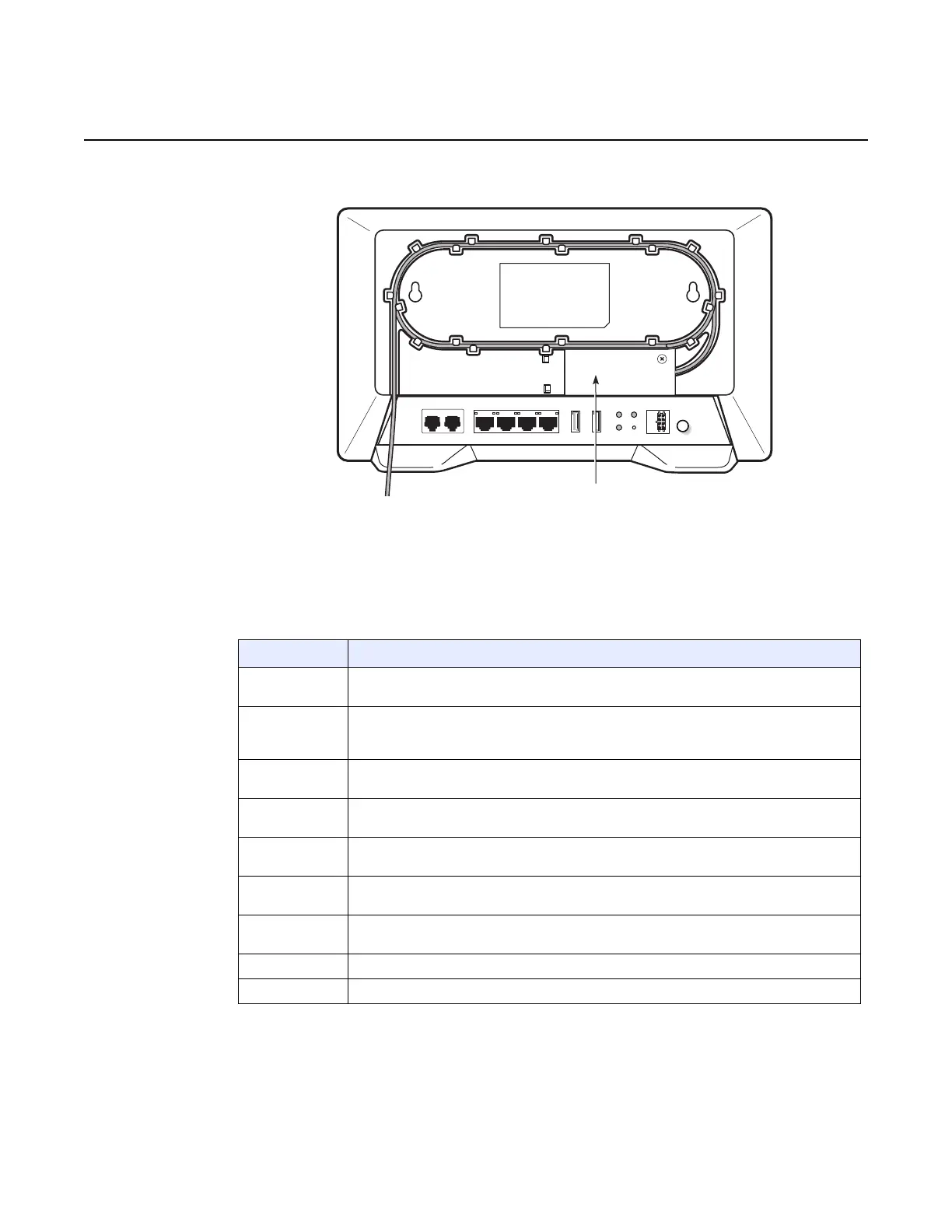

Figure 11 G-240W-C ONT with fiber cover
Table 6 describes the physical connections for G-240W-C indoor ONTs.
Table 6 G-240W-C indoor ONT physical connections
Note
(1)
The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the power
connector.
Connection
(1)
Description
POTS ports This connection is provided through RJ-11 ports. Up to two POTS connections are
supported.The POTS ports support voice services.
Ethernet ports This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000
Base-T Ethernet interfaces are supported.The Ethernet ports can support both data and
in-band video services on all four interfaces.
USB ports This connection is provided through 2 USB ports. The ONT supports external USB hard
drives that can be made accessible to all LAN devices.
WPS buttons The Wi-Fi Protected Setup buttons are labeled WPS2.4G and WPS5G. These buttons
enable and disable WLAN data encryption.
WLAN button Wi-Fi service is compliant with IEEE 802.11 standards and is enabled and disabled using
the WLAN button.
Reset button Pressing the Reset button for less than 10 seconds reboots the ONT; pressing the Reset
button for 10 seconds resets the ONT to the factory defaults, except for the LOID and SLID.
Power input This connection is provided through the power connector. A power cable fitted with a barrel
connector is used to make the connection.
On/Off button This button turns the ONT on or off.
Fiber optic port This port provides the connection for the fiber optic cable.
25274
ON/OFFPOWER
USB2USB1LAN4LAN3LAN2LAN1
TEL1 TEL2
WLAN
RESET
WPS2.4G
WPS5G
Fiber optic connector
(covered)
Release 06.01.00 | March 2019 | Edition 12
