Configure a G-240W-C indoor ONT
80
7368 ISAM ONT G-240W-C Product Guide
3FE-46256-AAAA-TCZZA Issue: 01
3 Click Refresh to update the displayed information.
4 STOP. This procedure is complete.
Procedure 12 Optics module status retrieval
1 Select Status > Optics Module Status from the top-level menu in the GPON Home Gateway
window, as shown in Figure 25.

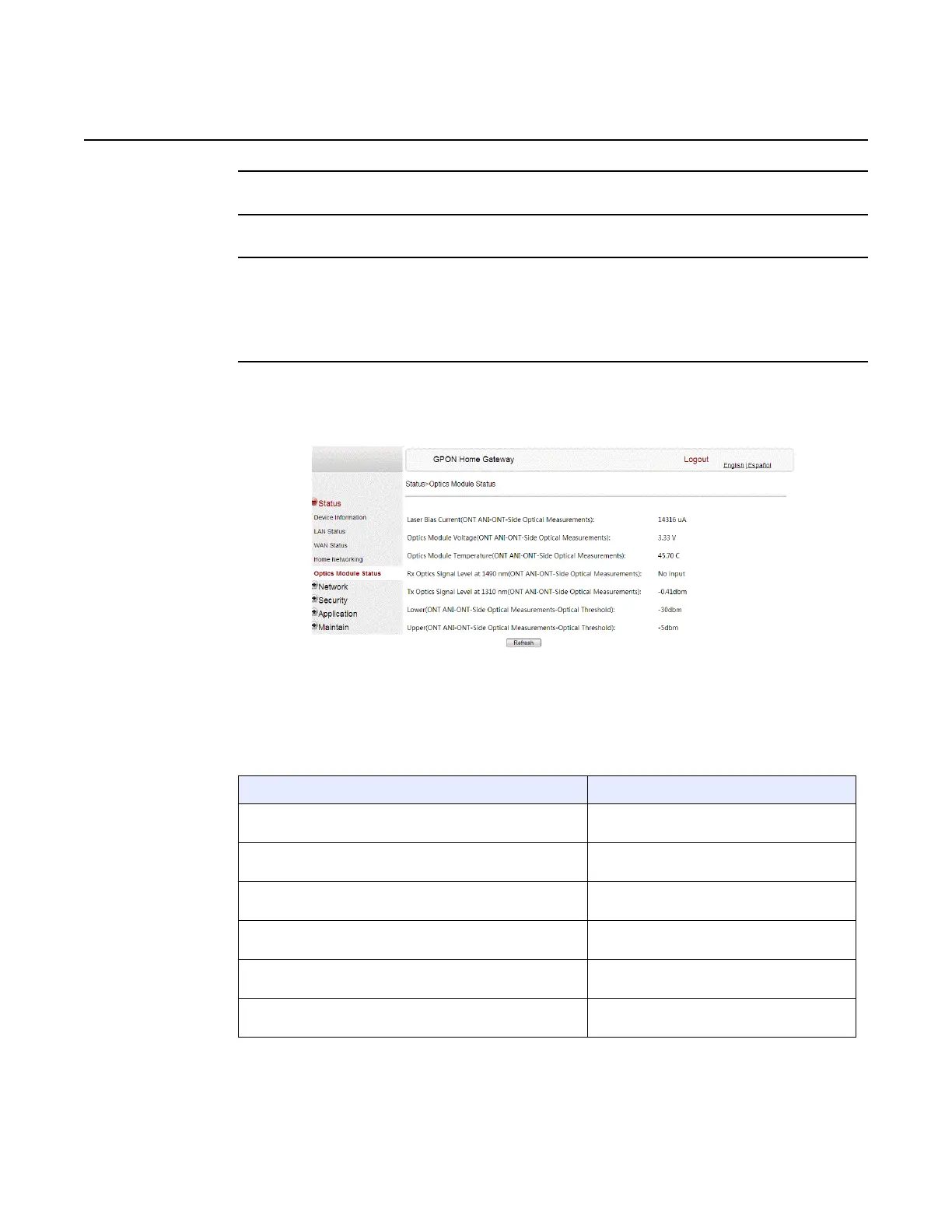

Figure 25 Optics module status window
Table 22 describes the fields in the Optics module status window.
Table 22 Optics module status parameters
Field Description
Laser Bias Current (ONT ANI-ONT-Side Optical
Measurements)
Laser bias current, measured in uA
Optics Module Voltage (ONT ANI-ONT-Side Optical
Measurements)
Optics module voltage, measured in V
Optics Module Temperature (ONT ANI-ONT-Side Optical
Measurements)
Optics module temperature, measured in C
Rx Optics Signal Level at 1490 nm (ONT ANI-ONT-Side
Optical Measurements)
Received optics signal level at 1490 nm,
measured in dBm
Tx Optics Signal Level at 1310 nm (ONT ANI-ONT-Side
Optical Measurements)
Transmitted optics signal level at 1310 nm,
measured in dBm
Lower (ONT ANI-ONT-Side Optical Measurements-Optical
Threshold)
Lower optical threshold, measured in dBm
(1 of 2)
Release 06.01.00 | March 2019 | Edition 12
