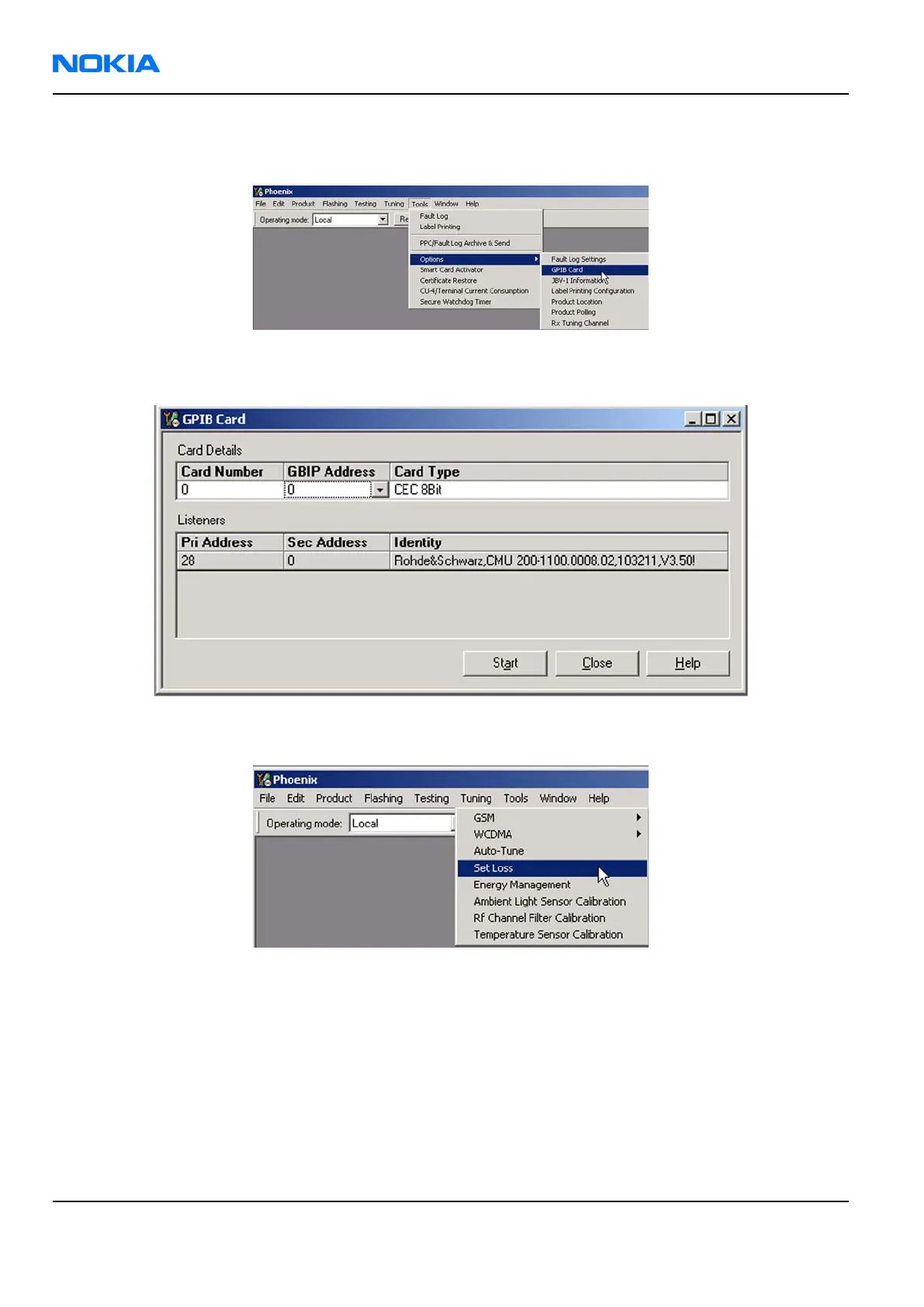

2. Start Phoenix service software.
3. From the Tools menu, choose Options -> GPIB Card.
4. In the Card Type line, select CEC8Bit, then click Start.
After clicking Start, the name of the communication tester appears in the list of found Listeners.
5. To specify the cable loss from module jig to the communication tester, choose "Set Loss" from the Tuning
menu.
6. Click the Cable tab and add the extra cable attenuation.
Note: Cable losses have to be determined on the basis of a cable used.
