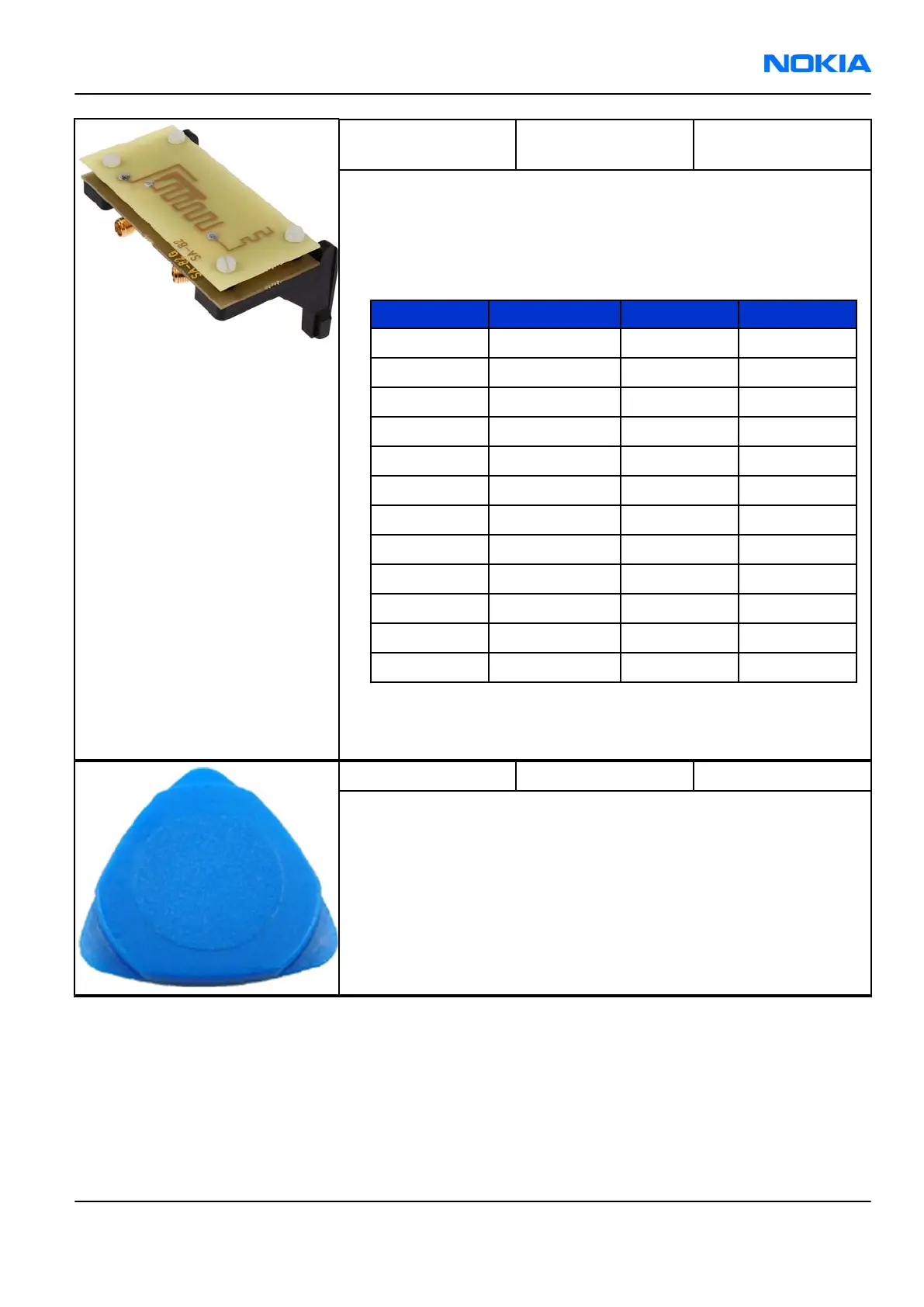

Nokia E62 Service Manual

SA-82 Flash adapter
antenna coupler
RM-88/RM-89 specific flash adapter antenna coupler.
• Flash adapter antenna coupler SA-82 attenuation table for NOKIA
E62, measured with Universal Radio Communication Tester
CMU-200.
Table 8 Attenuation table for antenna coupler SA-82
System Channel Tx-att. (dB) Rx-att. (dB)
GSM 850 128 5.8 4
190 5.3 3
251 5.3 3
GSM 900 975 5.8 4
38 5 4
124 5 4
GSM 1800 512 7.7 6
698 7.4 6
885 7.2 5
GSM 1900 512 7.9 6
700 6.2 6
810 5.6 6
Note: Tx-attenuation tolerance is +/-0.5 dB.
Rx-attenuation tolerance is +/-1.0dB.
SRT-6 Opening tool
SRT-6 is used to open phone covers and B-to-B connectors.
RM-88
Service Tools and Service Concepts Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 4 –9
Copyright © 2006 Nokia. All rights reserved.
