1 Overview
18 IP390 Security Platform Installation Guide

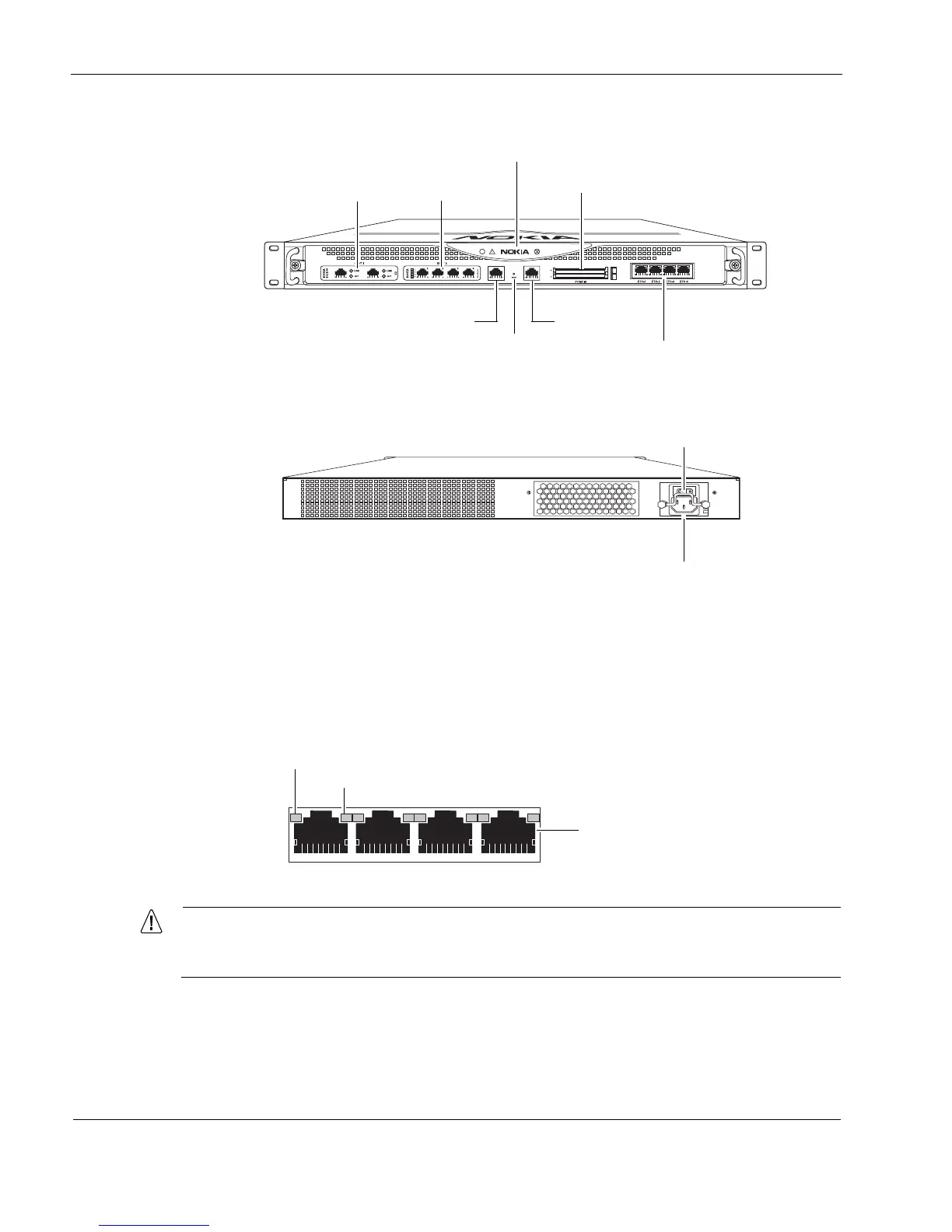

Figure 1 Component Locations Front View
Figure 2 Component Locations Rear View
Built-In Gigabit Ethernet Ports
The four built-in Gigabit Ethernet ports are located on the front of the appliance. Figure 3 shows
the layout of the built-in Gigabit Ethernet ports and status LEDs.
Figure 3 Built-In Gigabit Ethernet Ports Details
Caution
Cables that connect to the Gigabit Ethernet ports must be IEEE 802.3 compliant to
prevent potential data loss.
00525
IP390
System status LEDs
AUX port
Console port
Four-port Gigabit Ethernet
Flash-memory PC card slots
PMC NIC slots (slots 1 and 2)
unpopulated in base bundle
Reset button
00527
Power socket
Power switch
00547
Activity LED (blinking yellow)
Link LED (solid yellow for 10/100 Mbps, solid green for 1000 Mbps)
RJ-45 connectors
