Configuring and Activating Interfaces
IP390 Security Platform Installation Guide 55
11. Tighten the retaining screws that hold the chassis tray assembly.
Configuring and Activating Interfaces
The IP390 appliance automatically detects any new NIC when the appliance is restarted. Use
Network Voyager to configure and activate the logical and physical interfaces on the NIC.
For information about how to access Network Voyager and the related reference materials, see
“Using Nokia Network Voyager” on page 33.
Monitoring Network Interface Cards
You can asses the general operating condition of the NICs in your appliance by looking at the
LED status indicators on the NICs. The status indicators for each NIC are explained in the NIC
reference chapter.
For status indicator information for the built-in Gigabit Ethernet ports, see “Built-In Gigabit
Ethernet Ports” on page 18.
For status indicator information for the four-port Ethernet NIC, see “Four-Port 10/100 Mbps
Ethernet Network Interface Card” on page 37.
For status indicator information for the two-port copper Gigabit Ethernet NIC, see “Two-Port
Copper Gigabit Ethernet Network Interface Card” on page 40.
For status indicator information for the two-port fiber-optic Gigabit Ethernet NIC, see “Two-
Port Fiber-Optic Gigabit Ethernet Network Interface Card” on page 42.
For status indicator information for the four-port T1 NIC, see “Four-Port T1 Network Interface
Card” on page 45.
Use Network Voyager to access detailed port information. For information about accessing
Network Voyager, see “Using Nokia Network Voyager” on page 33. You can also use the Nokia
IPSO tcpdump command to examine the track on a specific port.
00525
IP390

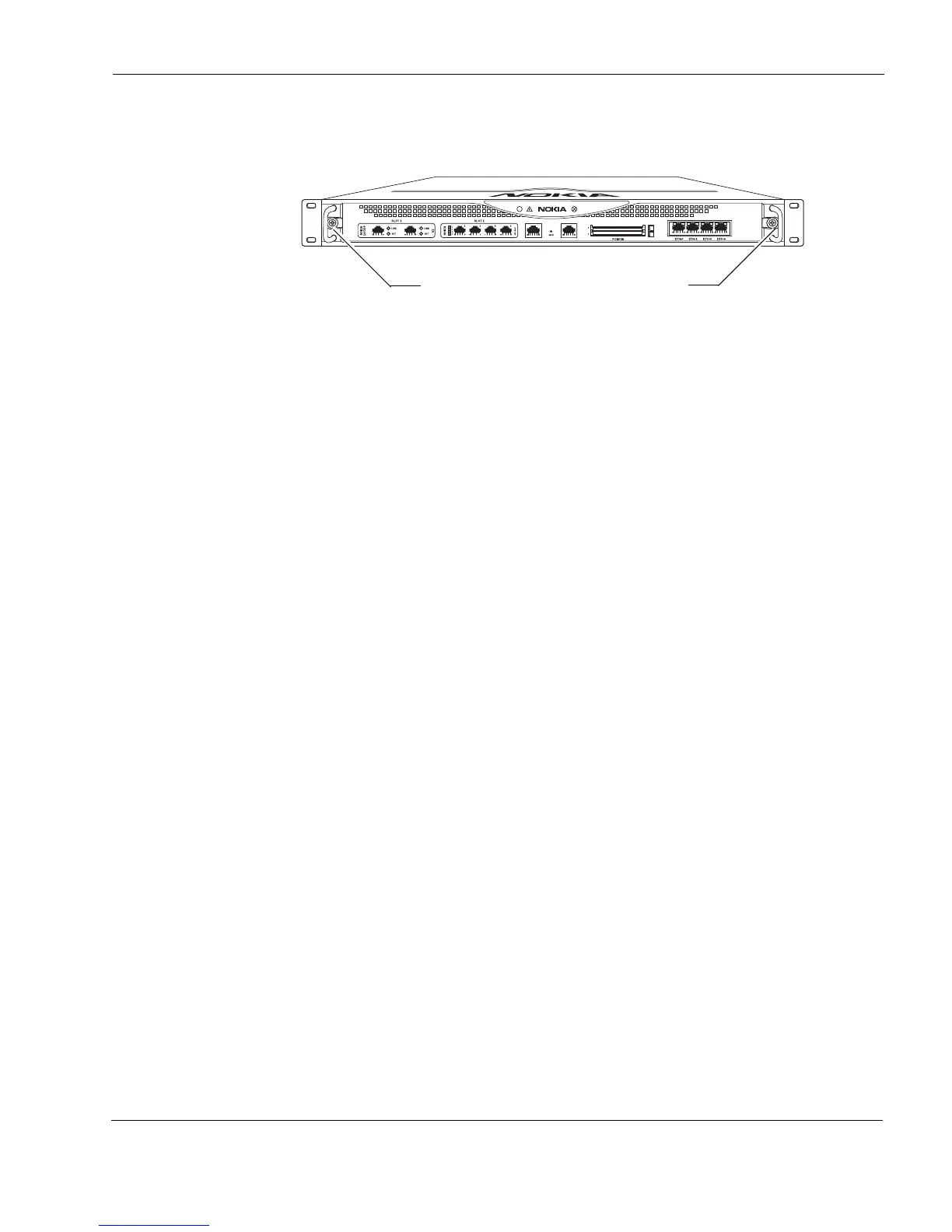

Chassis tray assembly retaining screws
