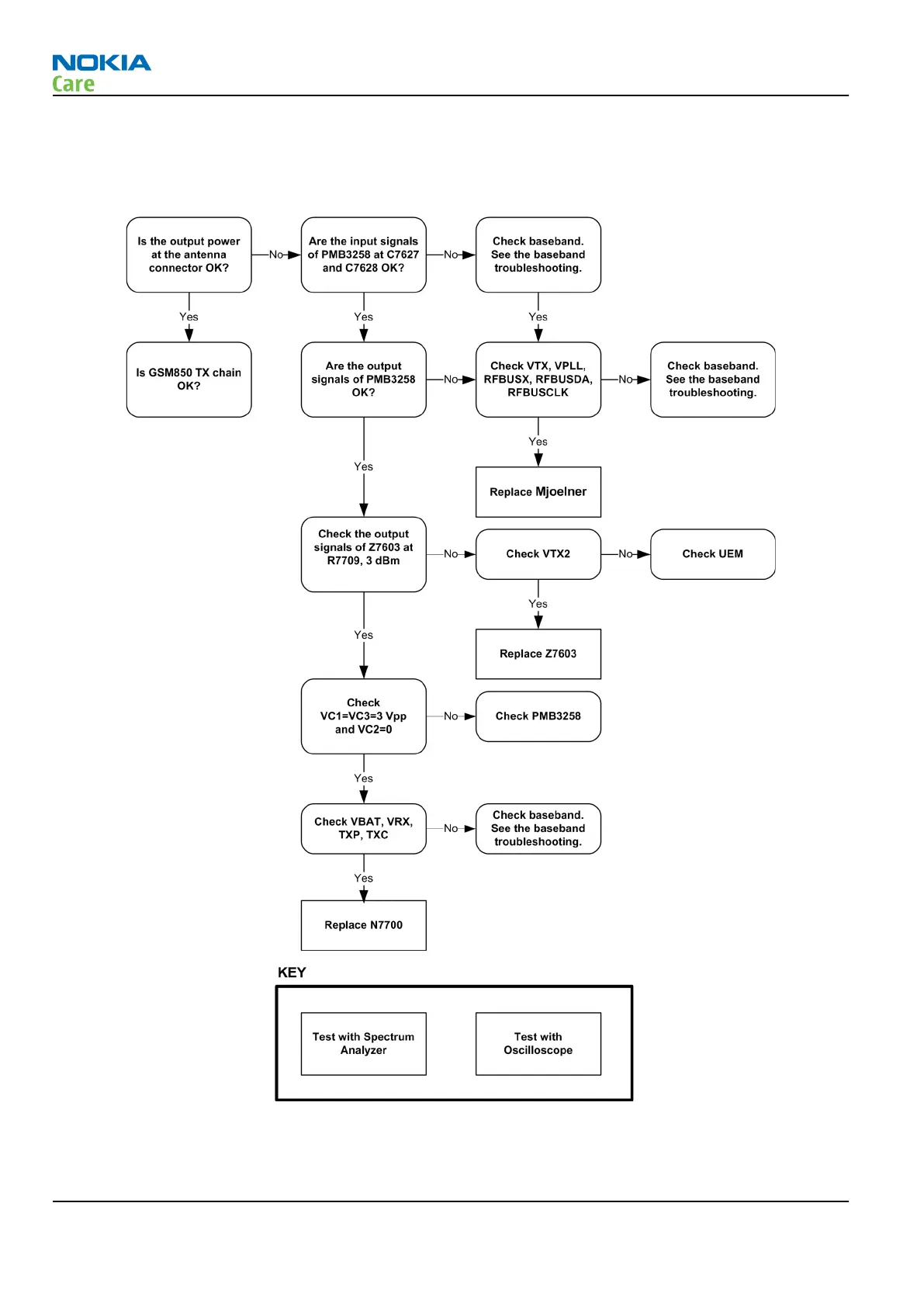

Troubleshooting diagram for GSM850 transmitter
Troubleshooting flow
Figure 70 GSM850 transmitter troubleshooting
RM-512; RM-513; RM-514; RM-515; RM-543
RF Troubleshooting Instructions
Page 4 –38 COMPANY CONFIDENTIAL Issue 2
