Troubleshooting flow

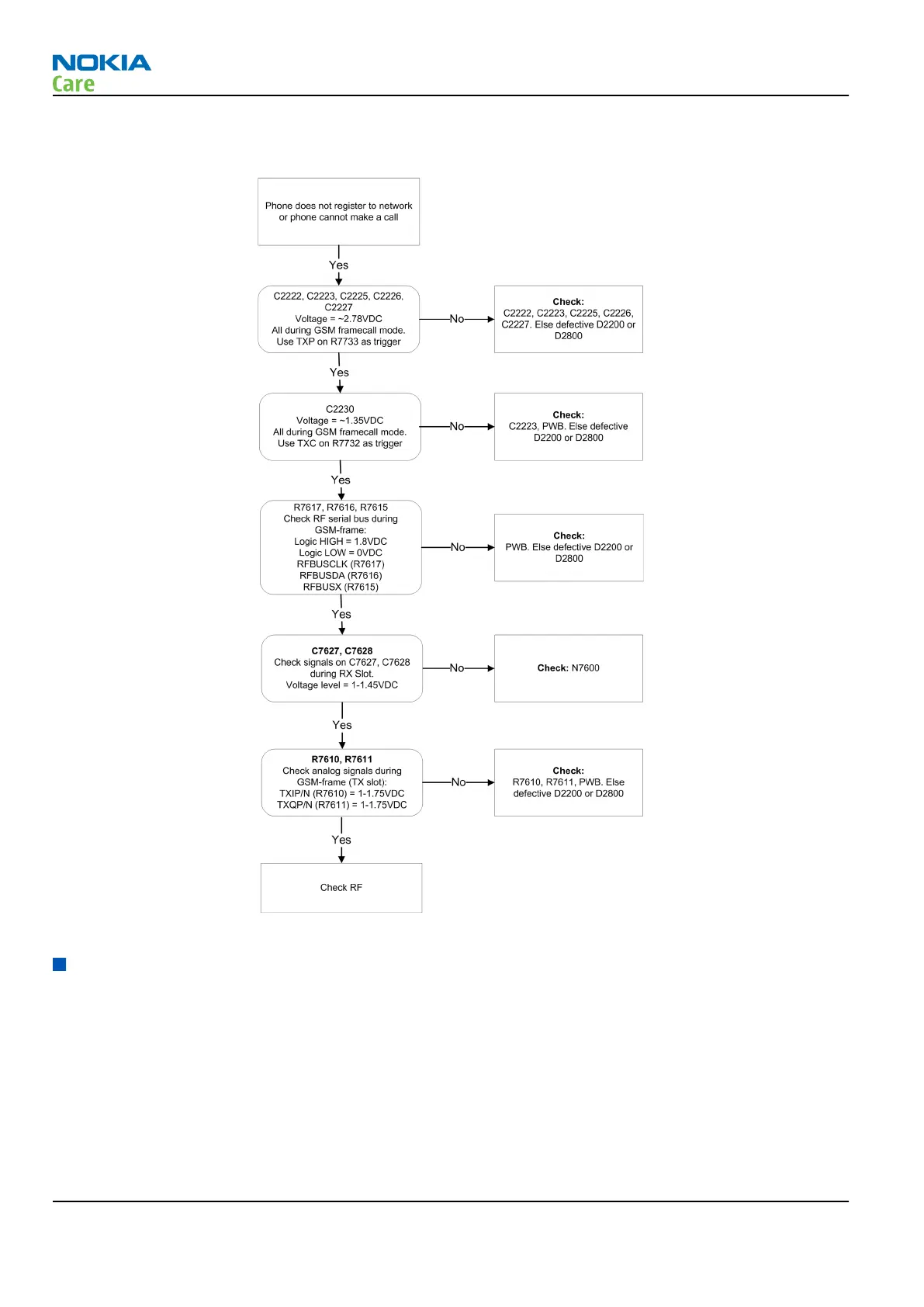

Figure 18 No registering or call
SIM related faults
Insert SIM card fault
Troubleshooting flow
The hardware of the SIM interface from Liteplus (D2200) to the SIM connector (X2700) can be tested without
a SIM card. When the power is switched on the phone first check for a 1.8V SIM card and then a 3V SIM card.
The phone will try this four times, where after it will display ”Insert SIM card”.
RM-512; RM-513; RM-514; RM-515; RM-543
Baseband Troubleshooting Instructions
Page 3 –12 COMPANY CONFIDENTIAL Issue 2
Copyright © 2009 Nokia. All rights reserved.
