Figure 21 Signal diagram
User interface
Blank display
Context

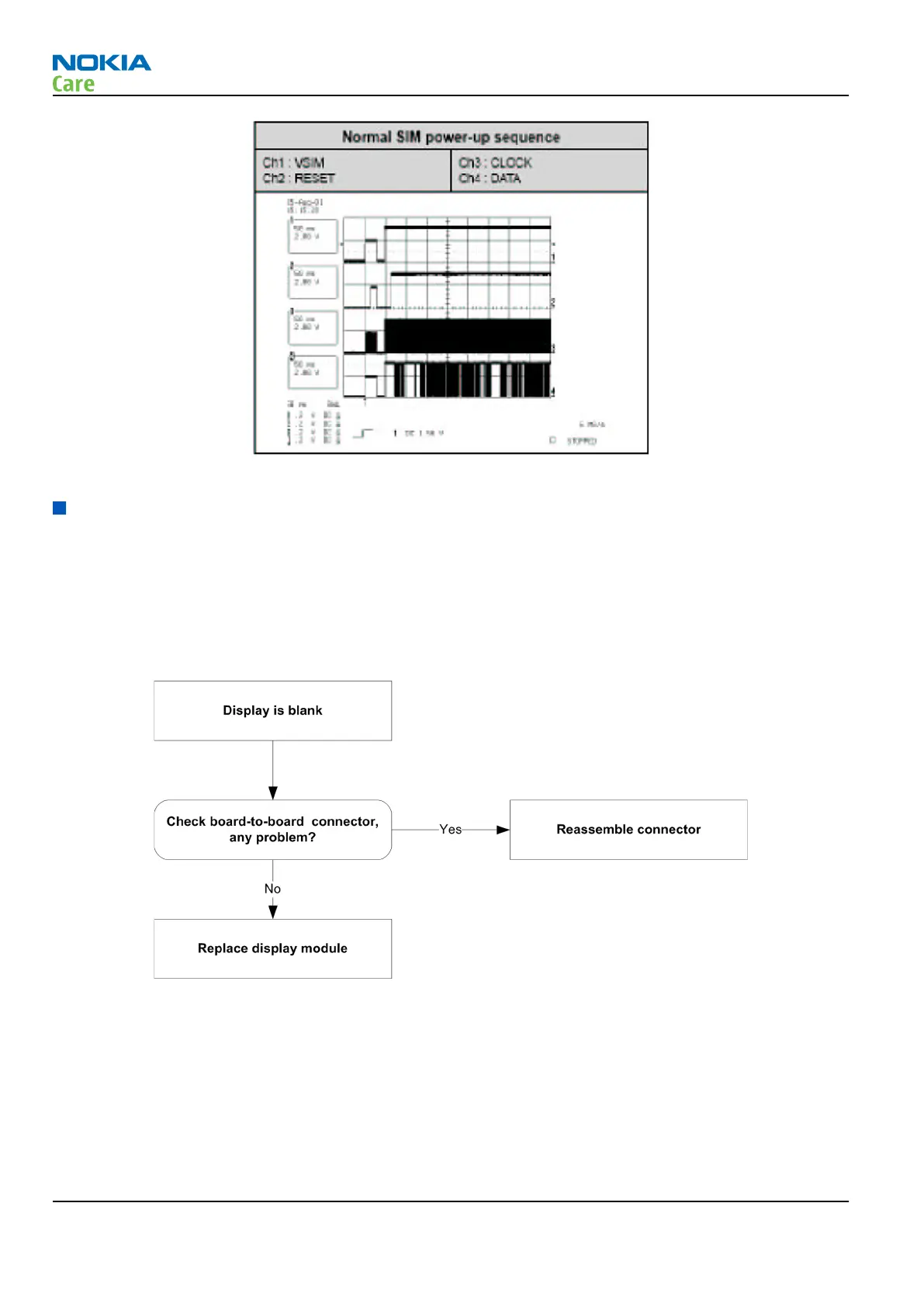

The display does not show any information at all. For display blank, refer to troubleshooting flow below.
Troubleshooting flow
Corrupted display
Context
The display contains missing or fading segments, or color presentation is incorrect.
