Nokia RM-512 - RF-Test;Bb-Tune & Flash Concept with JBV-1, FPS-10

RF-test/BB-tune & flash concept with JBV-1, FPS-10

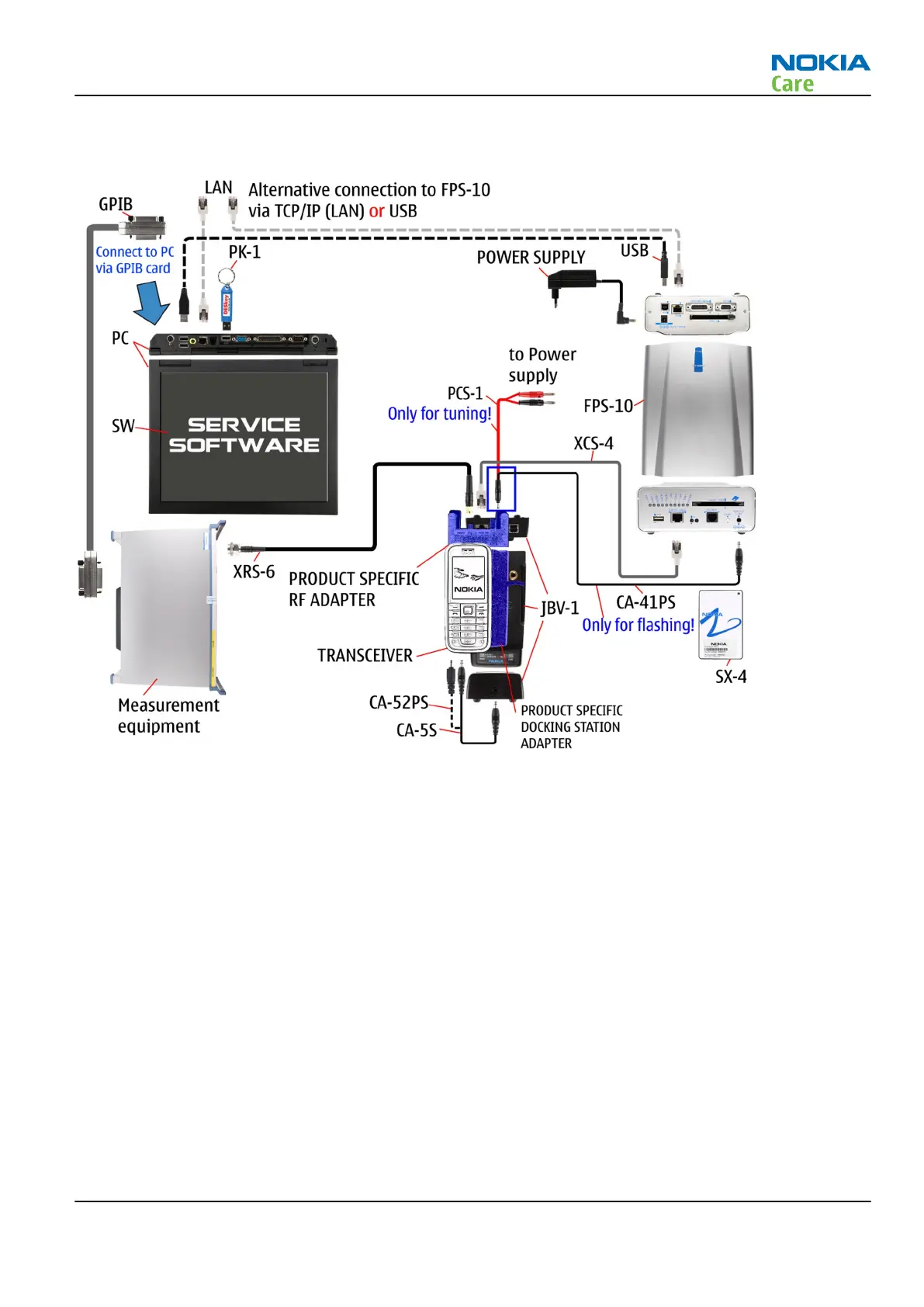

Figure 9 RF-test/BB-tune & flash concept with JBV-1, FPS-10
RM-512; RM-513; RM-514; RM-515; RM-543
Service Devices and Service Concepts
