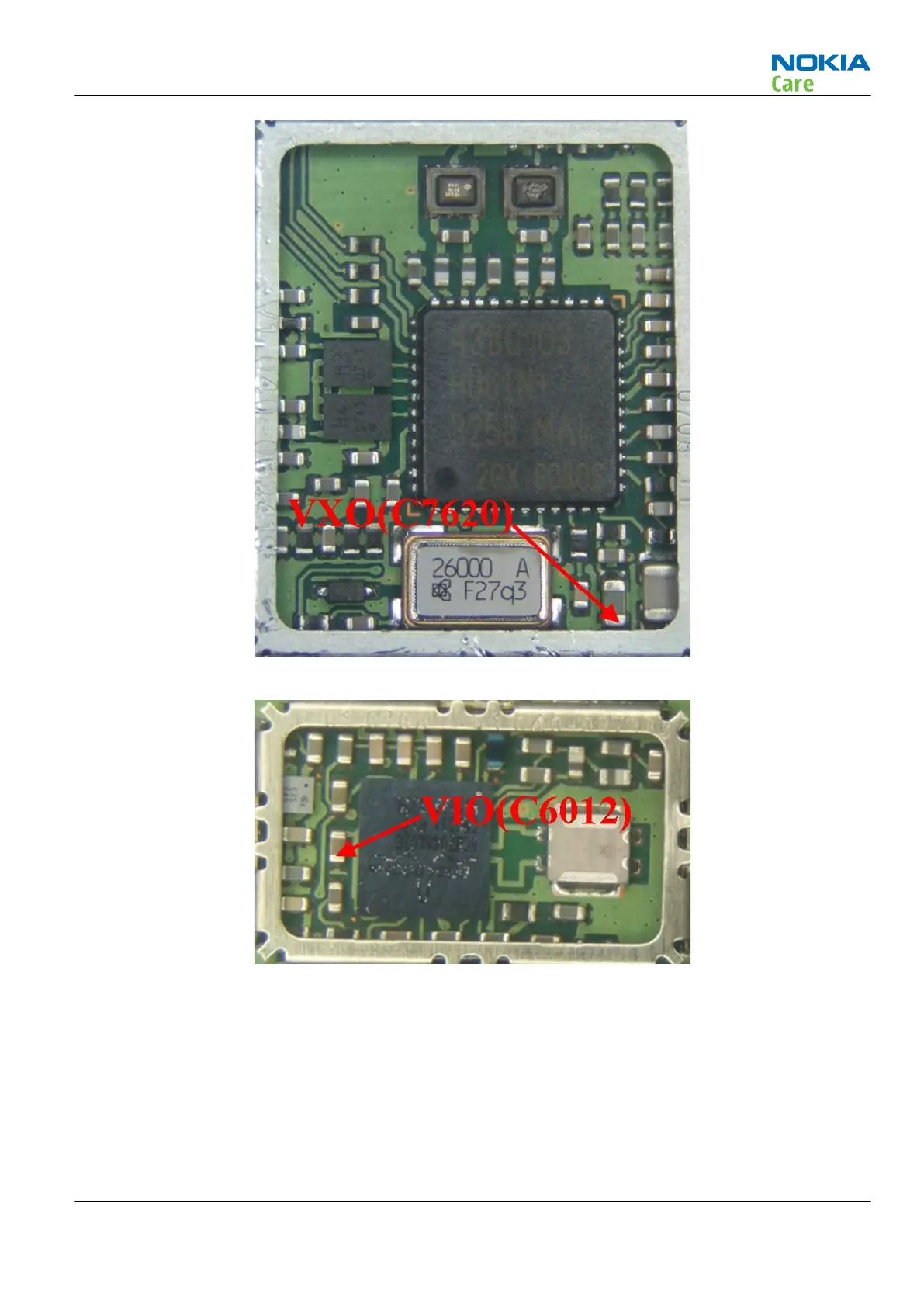

Figure 35 Supply point at RF IC (N7600)
Figure 36 Supply point at BT & FM IC (N6000)
Auto tuning
This phone can be tuned automatically.
Autotune is designed to align the phone's RF part easier and faster. It performs calibrations, tunings and
measurements of RX and TX. The results are displayed and logged in a result file, if initiated.
Hardware set up
Hardware requirements for auto tuning:
RM-512; RM-513; RM-514; RM-515; RM-543
