Antenna troubleshooting

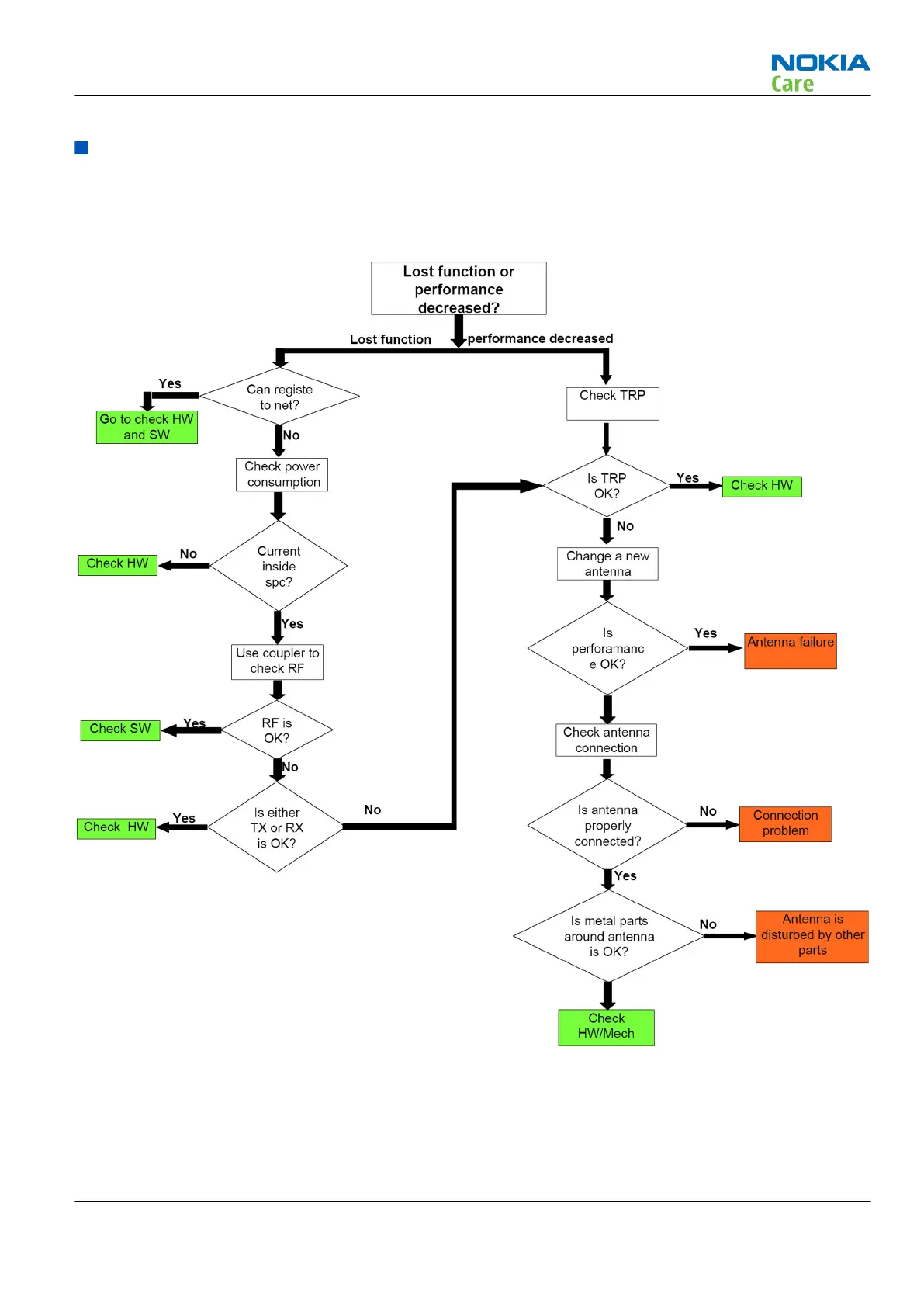

Antenna troubleshooting diagram
Troubleshooting flow
Figure 93 Antenna troubleshooting
RM-512; RM-513; RM-514; RM-515; RM-543
RF Troubleshooting Instructions
Issue 2 COMPANY CONFIDENTIAL Page 4 –57
Copyright © 2009 Nokia. All rights reserved.
