5. Check if sound is heard in IHF.

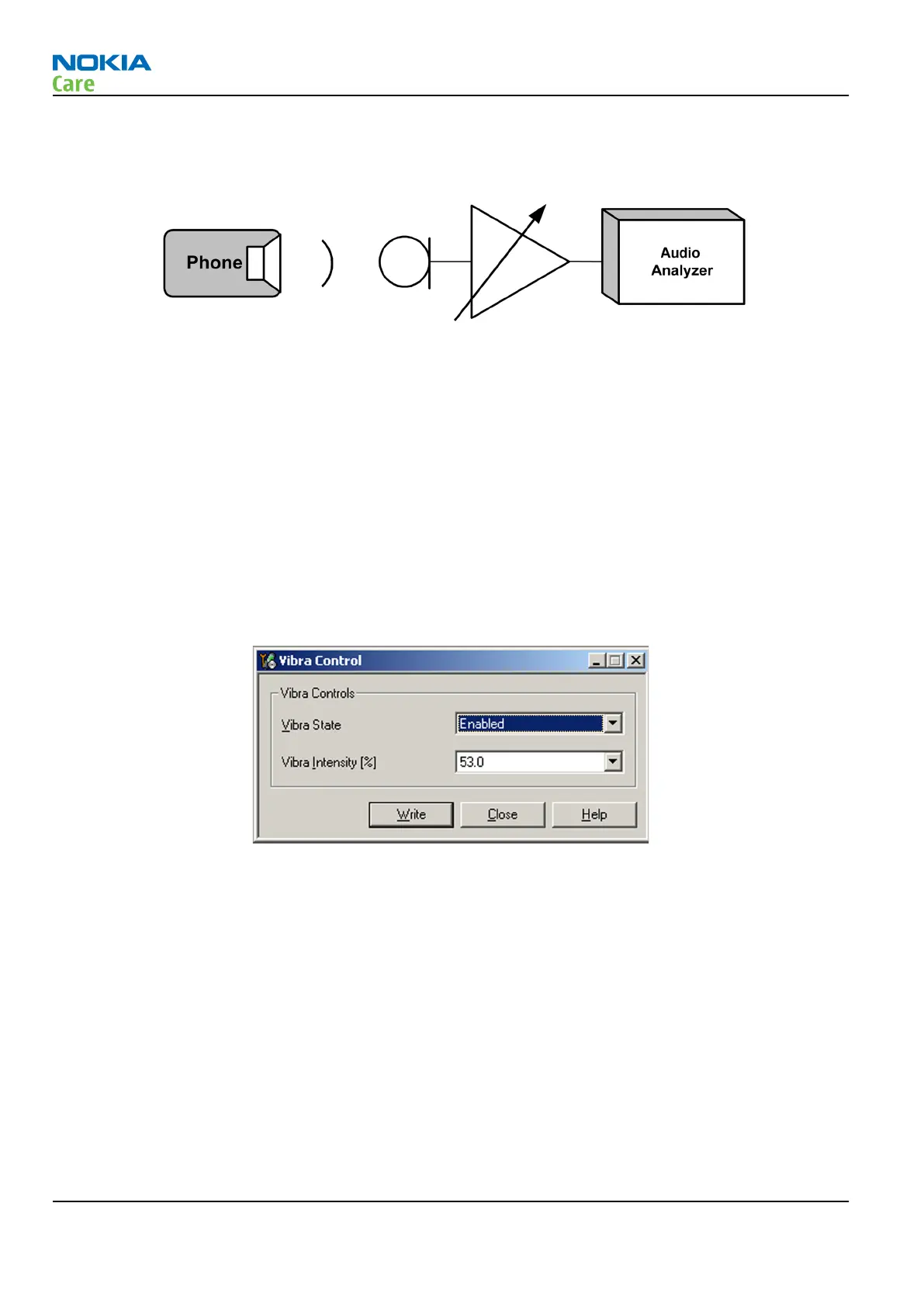

Figure 26 Checking IHF and ring tone by using "Buzzer"
Check vibra function using "Vibra control"
Steps
1. Connect phone with Phoenix.
2. Open “Vibra control” window from “Testing -> Vibra control”, as shown in the figure below.
3. Select suitable intensity value, for example 53 %.
4. Select “Vibra state” as “Enabled”
5. Click “Write”.
6. Check if Vibra works.
Figure 27 Checking vibra function by using vibra control
RM-512; RM-513; RM-514; RM-515; RM-543
Baseband Troubleshooting Instructions
Page 3 –20 COMPANY CONFIDENTIAL Issue 2
Copyright © 2009 Nokia. All rights reserved.
