Nokia RM-512 - Bluetooth Self Tests in Phoenix

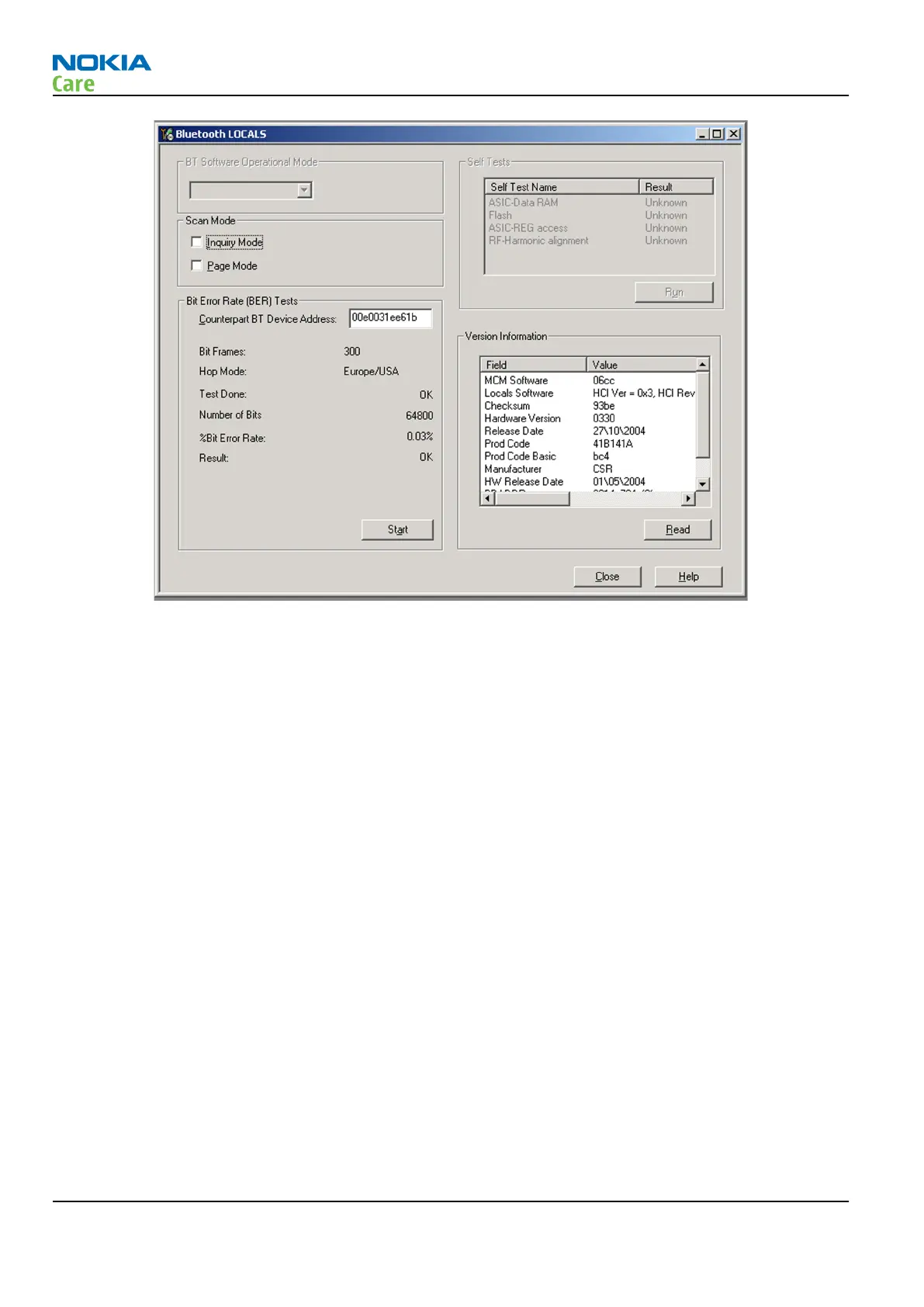

Figure 91 BER test result
Bluetooth self tests in Phoenix
Steps
1. Start
Phoenix service software.
2. ChooseFile→Scan Product.
3. Place the phone to a flash adapter.
4. From the Mode drop-down menu, set mode to Local.
5. Choose Testing→Self Tests.
6. In the Self Tests window check the following Bluetooth related tests:
•
ST_LPRF_IF_TEST
•
ST_LPRF_AUDIO_LINES_TEST
•
ST_BT_WAKEUP_TEST
RM-512; RM-513; RM-514; RM-515; RM-543
RF Troubleshooting Instructions
