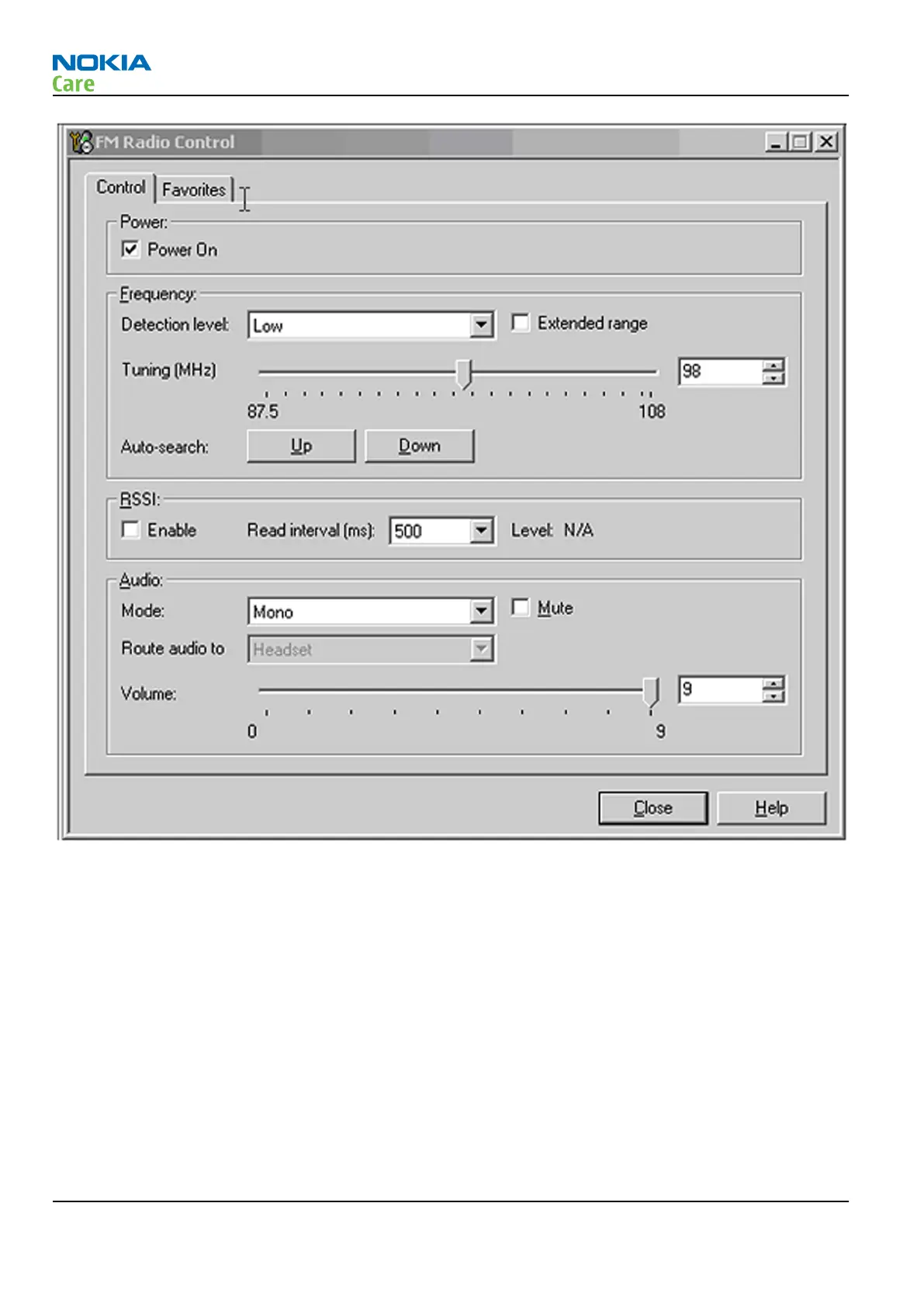

Figure 86 Phoenix settings
4. Establish input of a standard FM signal to the FM module.
5. Signal generator settings shall be as follows:
i Frequency: 98 MHz
ii Level: - 60 dBm
iii FM deviation: 75 kHz
iv LFGEN frequency: 1 kHZ
