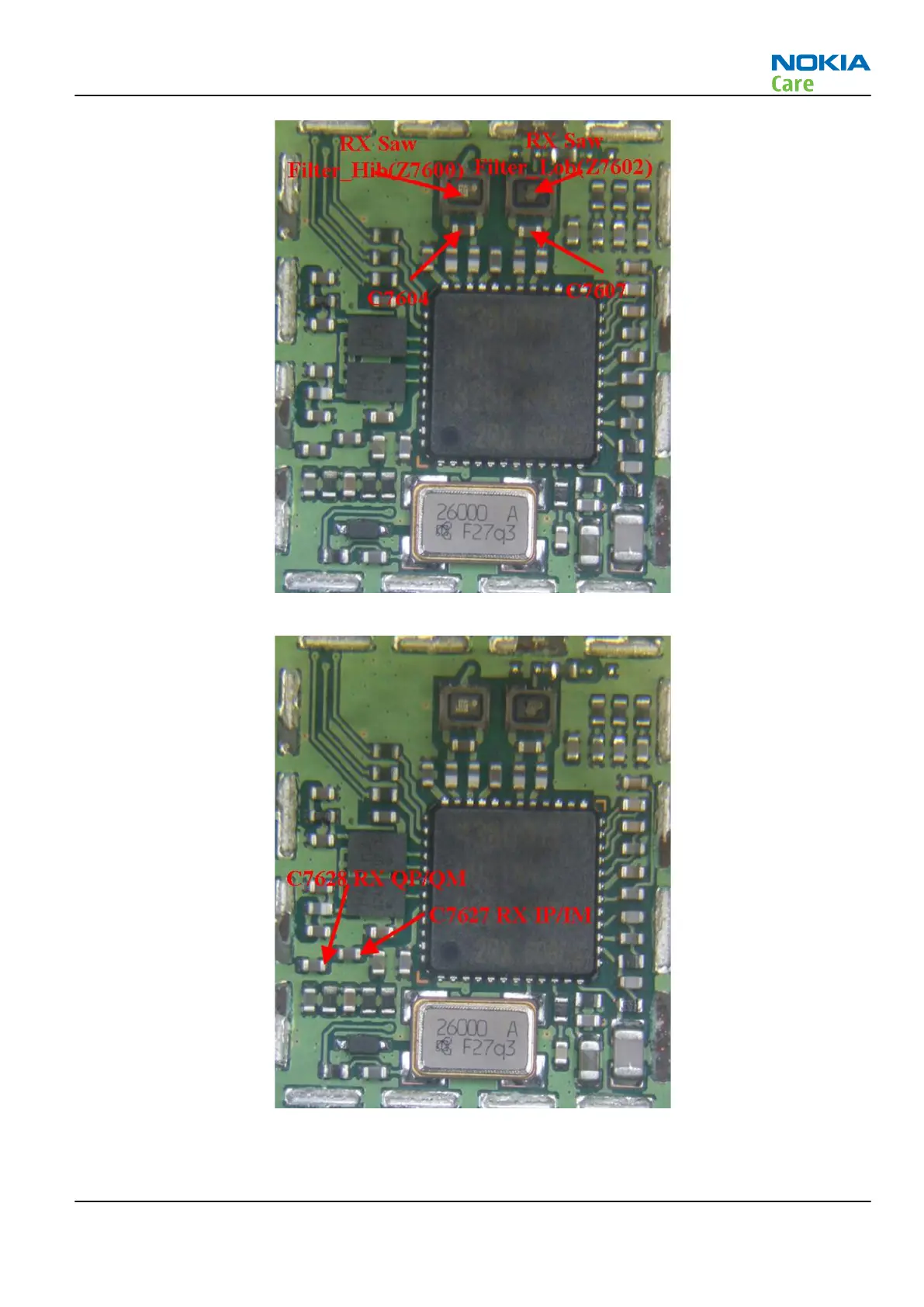

Figure 44 Measurement points at the RX SAW Filters – Z7600/Z7602
Figure 45 RX I/Q signals
RM-512; RM-513; RM-514; RM-515; RM-543
RF Troubleshooting Instructions
Issue 2 COMPANY CONFIDENTIAL Page 4 –17
