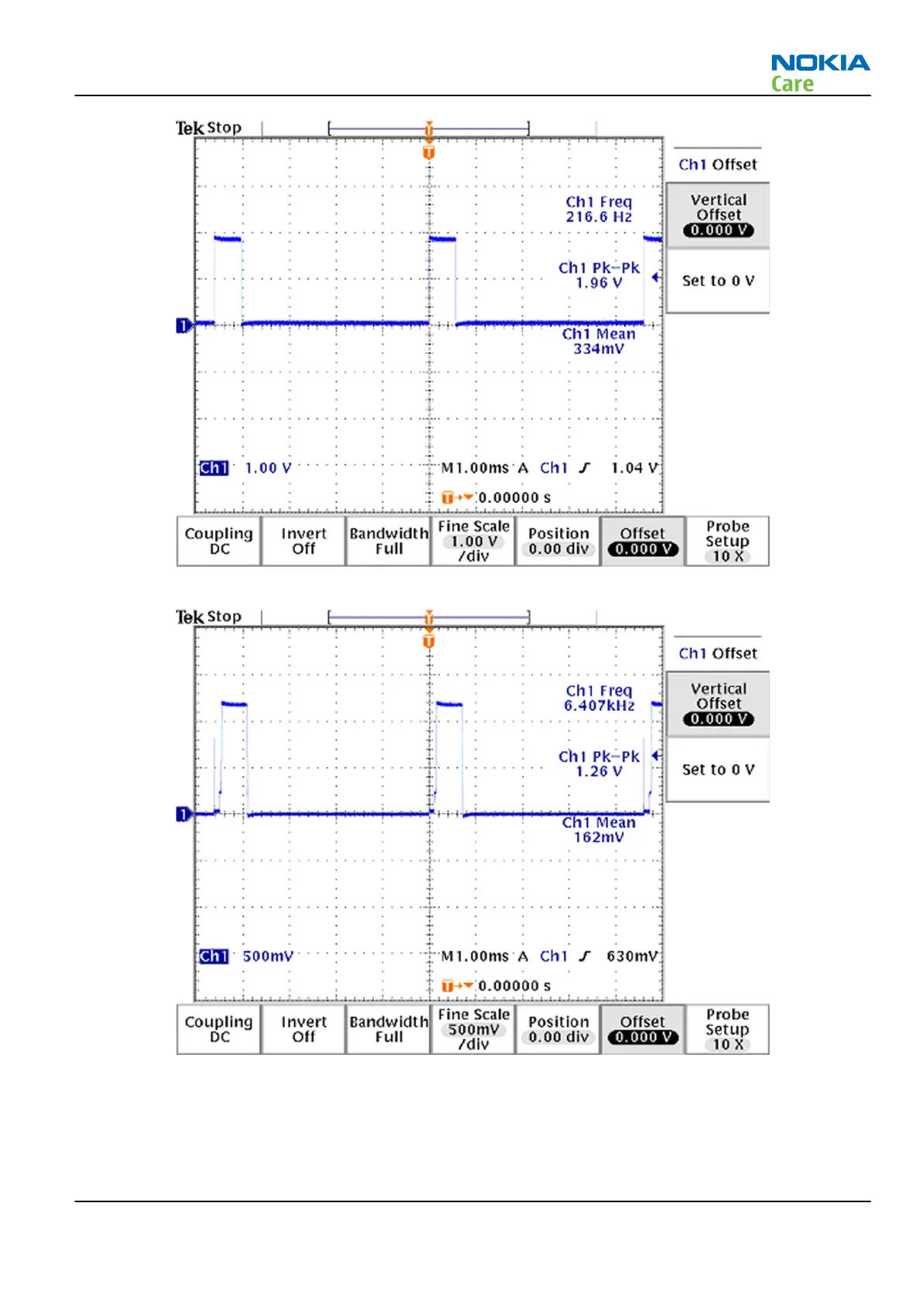

Figure 57 TXP signal
Figure 58 TXC signals at PCL0
RM-512; RM-513; RM-514; RM-515; RM-543
RF Troubleshooting Instructions
Issue 2 COMPANY CONFIDENTIAL Page 4 –27
Copyright © 2009 Nokia. All rights reserved.
