NONLINEAR LABS C15 - Page 47

Synthesis Engine
Synthesis Engine
92 93

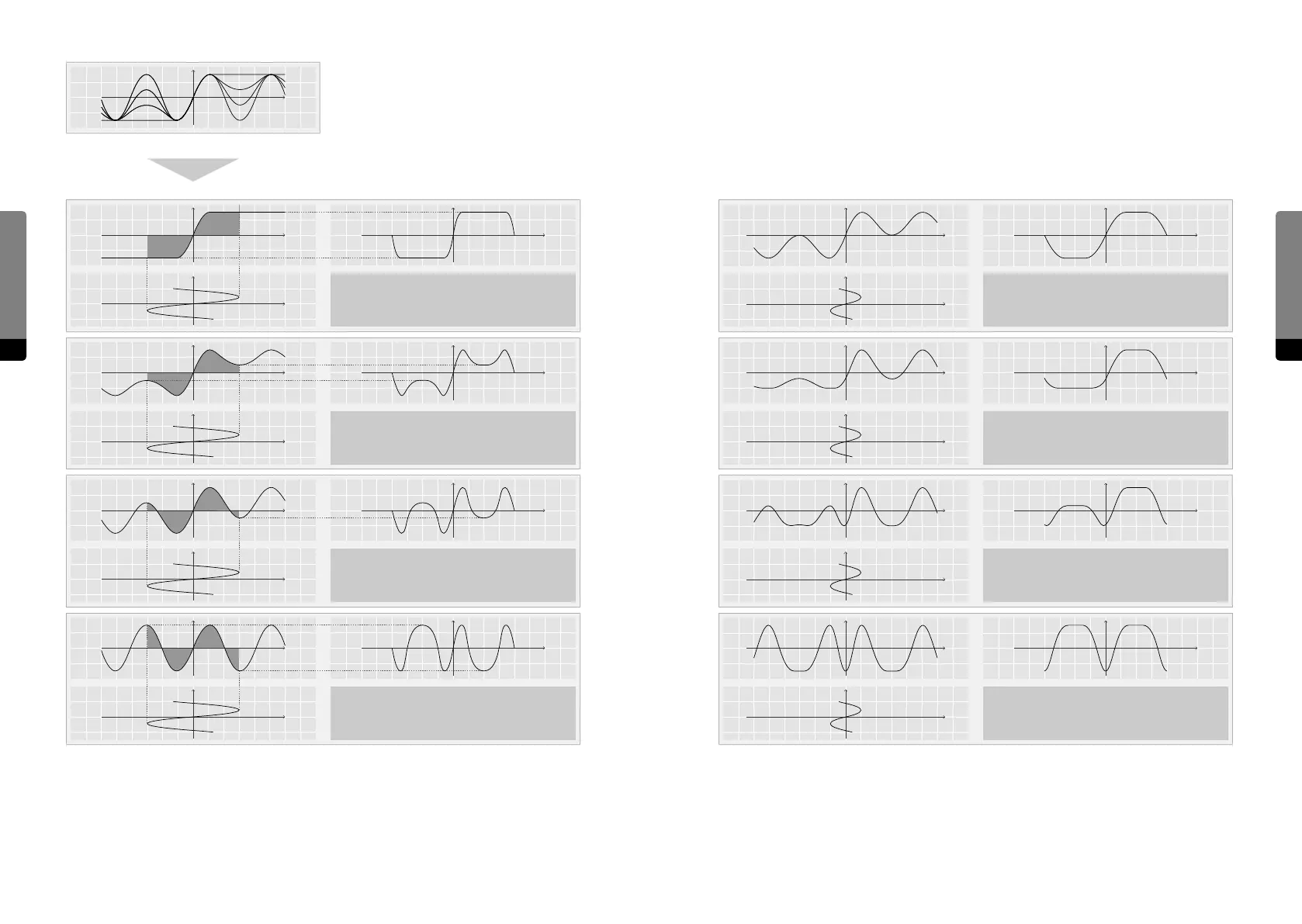

Shaper: Asymetry
5
Drive: 3.4 dB
Fold: 50 %
Asymetry: 0 %
Drive: 3.4 dB
Fold: 50 %
Asymetry: 20 %
Drive: 3.4 dB
Fold: 50 %
Asymetry: 60 %
Drive: 3.4 dB
Fold: 50 %
Asymetry: 100 %
t
t
y
x
t
t
y
x
t
t
y
x
t
t
y
x
Shaper: Fold
4
Drive: 12.0 dB
Fold: 0 %
Asymetry: 0 %
Drive: 12.0 dB
Fold: 33 %
Asymetry: 0 %
Drive: 12.0 dB
Fold: 66 %
Asymetry: 0 %
Drive: 12.0 dB
Fold: 100 %
Asymetry: 0 %
t
t
y
x
y
x
t
t
y
x
t
t
y
x
t
t
y
x
Input
Output
Input
Output
Input
Output
Input
Output
