2.2 Type plate
Explanation
1 Matrix – Barcode
2 NORD gear unit type
3 Operating mode
4 Year of manufacture
5 Serial number
6
Rated torque of gear unit
output shaft
7 Drive power
8
Weight according to ordered
version
9 Overall gear unit ratio
10 Installation orientation
11
Rated speed of gear unit
output shaft
12
Lubricant type,
viscosity and quantity
13 Customer’s part number
14 Operating factor

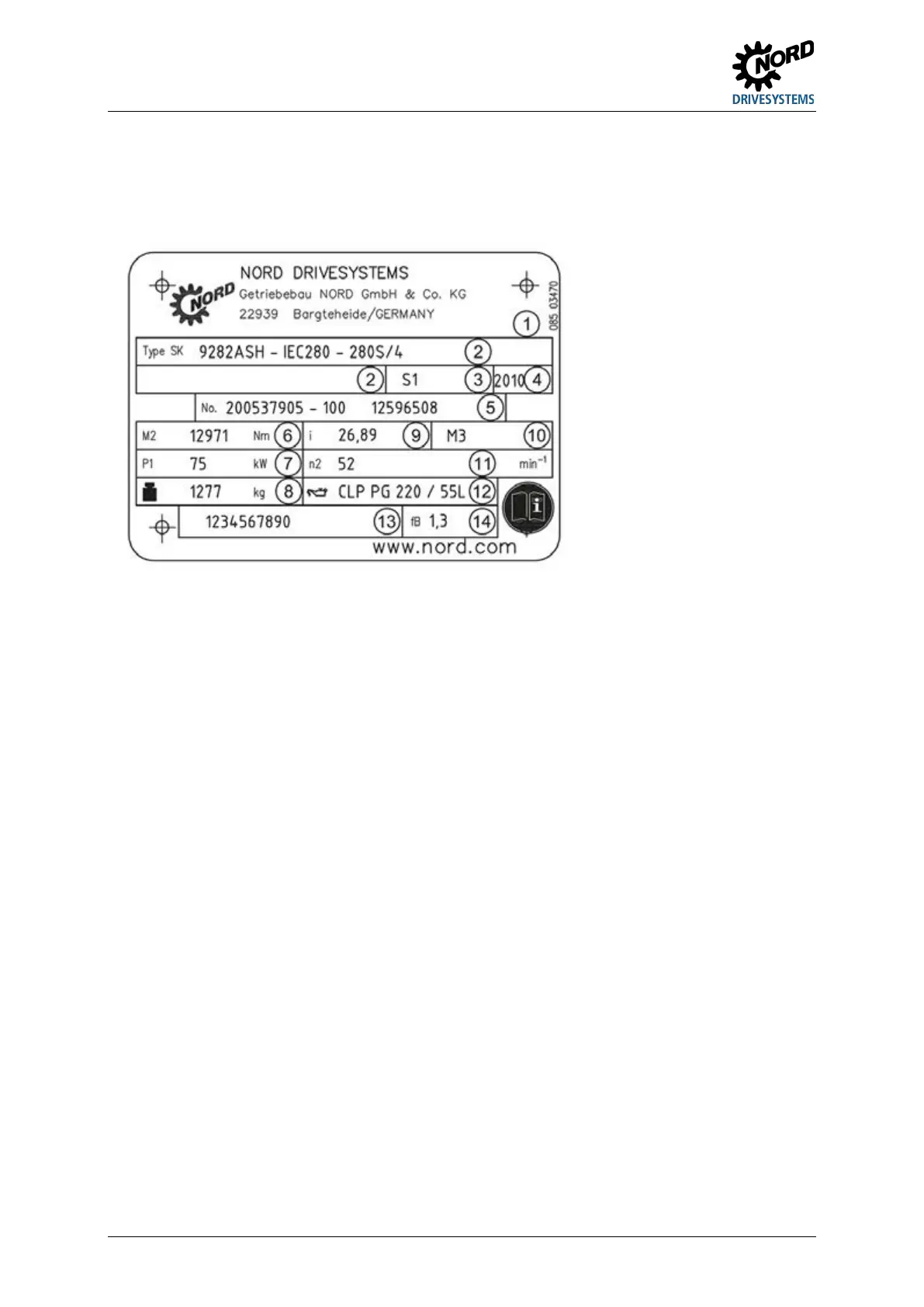

Figure 1: Type plate (example) with explanation of type plate fields
