3 Assembly instructions, storage, preparation, installation
B 1000 en-4419 23
The transverse force must be applied as closely as possible to the gear unit. For drive shafts with free
shaft ends – Option W – the maximum permissible radial force F
R1
applies for the application of the
radial force to the centre of the free shaft journal. For output shafts, the application of the radial force
F
R2
must not exceed the dimension x
R2
. If the radial force F
R2
for the output shaft is stated on the rating
plate, but no dimension x
R2
is stated, the application of the force is assumed to be to the centre of the
shaft journal.
Pos: 82 /Anleitungen/Getriebe/3. Montage, Lagerung, Vorbereitung, Aufstellung/Montage/Montage von Naben auf Getriebewellen 03 @ 35\mod_1560339342655_388.docx @ 2540956 @ @ 1

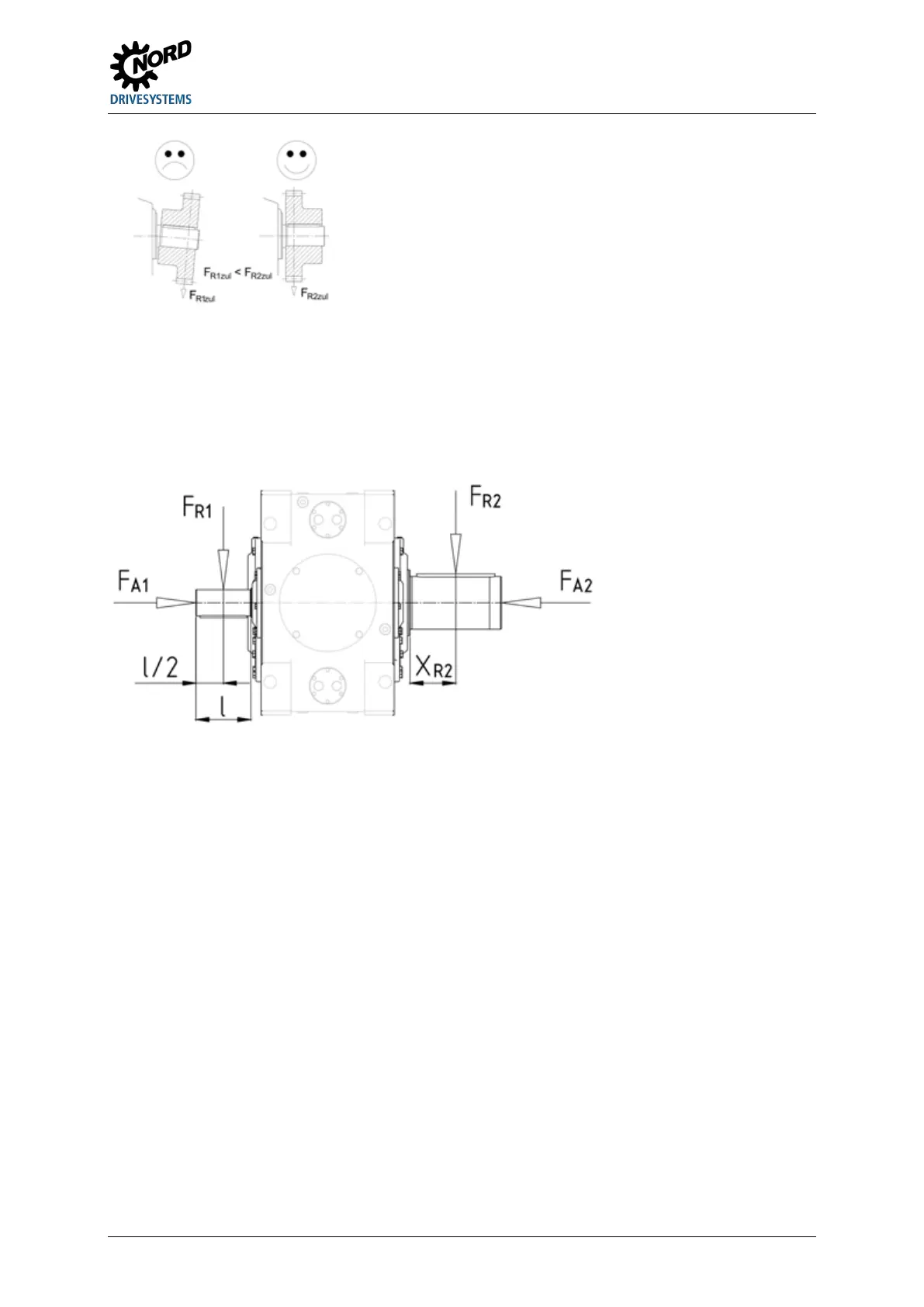

Figure 6: Permissible application of force to drive and driven shafts
