Nord Drivesystems B 1000 - Figure 8: Removing the Factory-Fitted Closing Cap; Figure 9: Gear Unit Mounted on Shaft with a Shoulder Using the Fastening Element; Figure 10: Gear Unit Mounted on Shaft Without a Shoulder Using the Fastening Element; Figure 11: Removal Using Dismantling Device

3 Assembly instructions, storage, preparation, installation
B 1000 en-4419 25

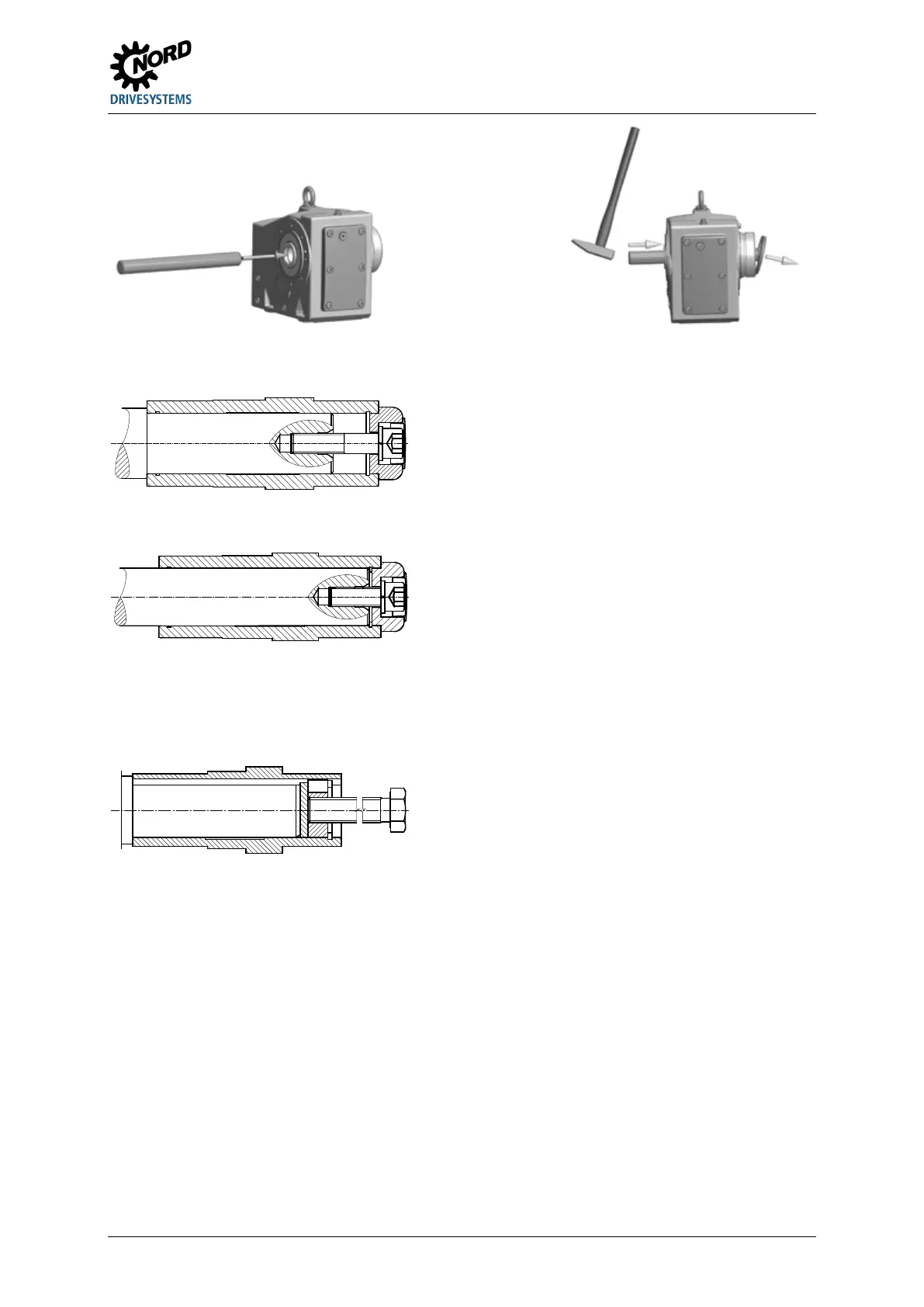

Figure 8: Removing the factory-fitted closing cap
Figure 9: Gear unit mounted on shaft with a shoulder using the fastening element
Figure 10: Gear unit mounted on shaft without a shoulder using the fastening element
A gear unit can be removed from a shaft with a shoulder e.g. using the following device.
Figure 11: Removal using dismantling device
When assembling push-on gears with torque supports, the support must not be distorted. Tension-free
mounting is aided by the rubber buffer (Option G or VG).
