Nord Drivesystems B 1000 - Figure 28: Oil Level Check with Oil Level Tank

Gear units – Operating and Assembly Instructions
48 B 1000 en-4419
Parallel shaft gear units with oil level tank
The following applies for parallel shaft gear units SK 9282, SK 9382, SK 10282, SK 10382,
SK 10382.1, SK 11282, SK 11382, SK 11382.1 and SK 12382 in installation position M4 with oil tank:

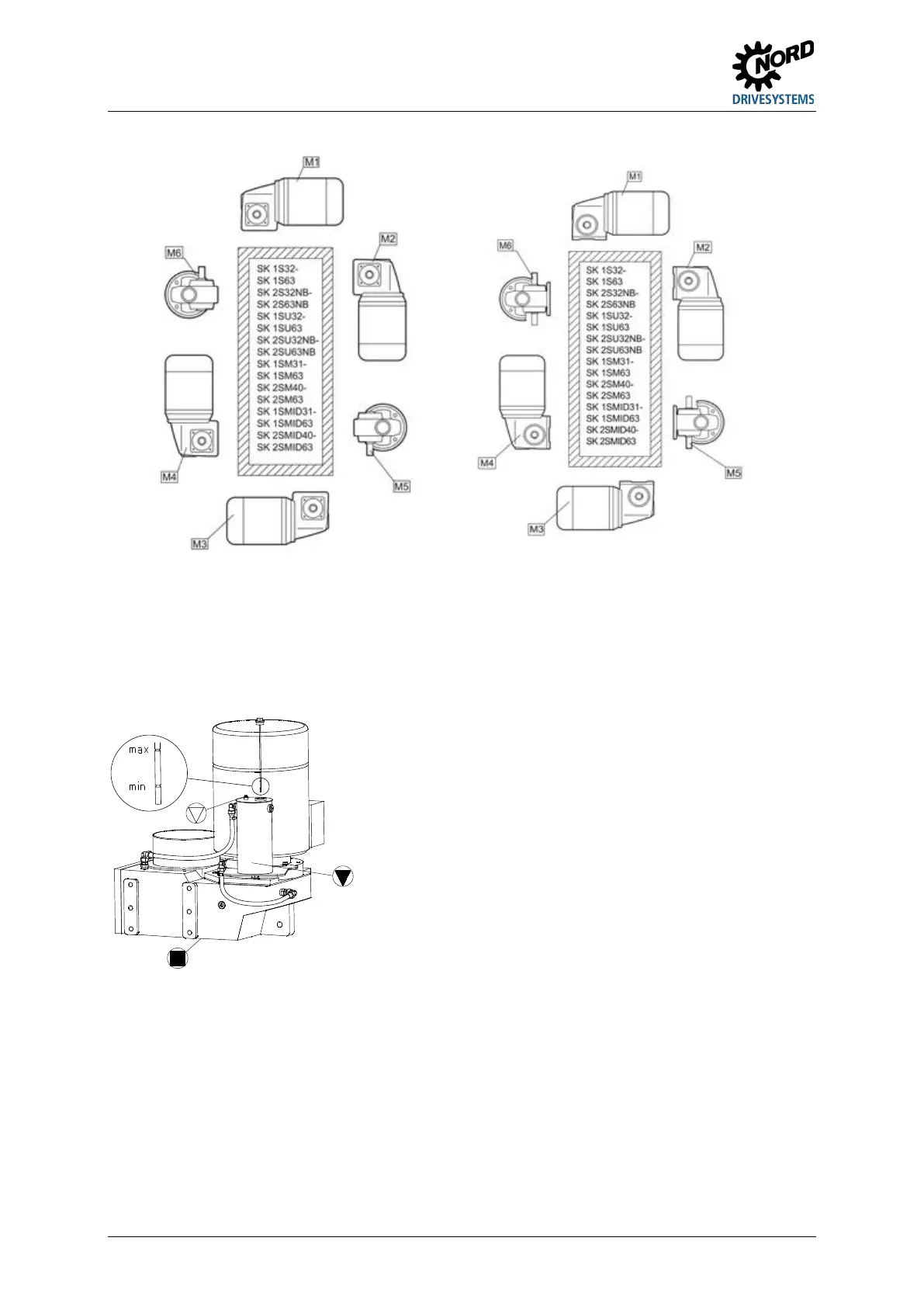

Figure 28: Oil level check with oil level tank
