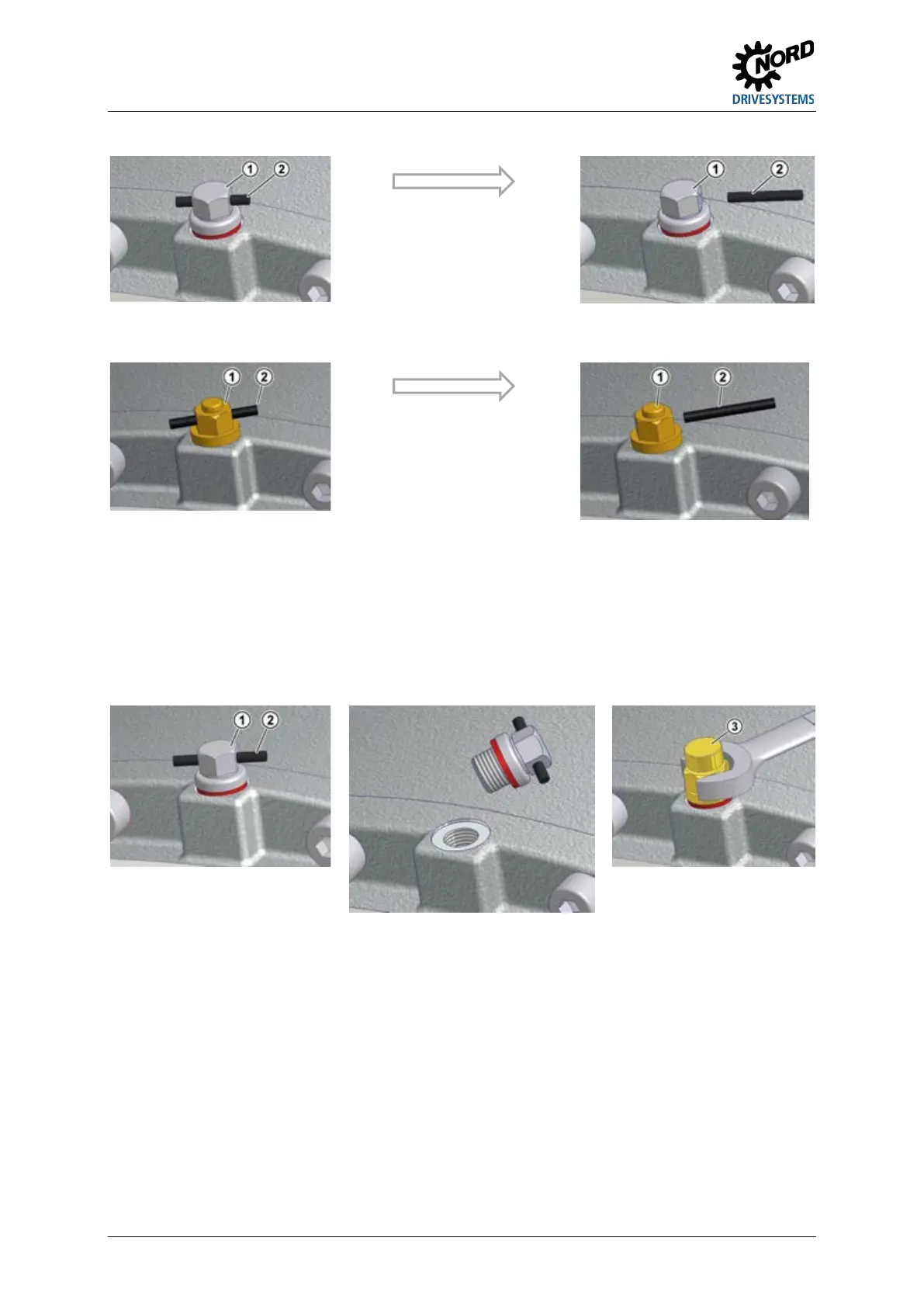

Nord Drivesystems B 1000 - Figure 2: Activating the Vent Screw; Figure 3: Activating the Pressure Vent Screw; Figure 4: Removing the Vent Plug and Fitting the Special Pressure Vent

Gear units – Operating and Assembly Instructions
20 B 1000 en-4419
Explanation
1
Vent screw
2
Transport securing device
Figure 2: Activating the vent screw
Explanation
1
Vent screw
2 Transport securing device
Figure 3: Activating the pressure vent screw
Special pressure vents are supplied as loose parts. Before commissioning, the vent screws must be
replaced with the special pressure vents which are supplied as loose parts. This is done by
unscrewing the vent fitting and replacing it with the special pressure vent and seal (please see chapter
7.1 "Versions and maintenance"). Double gear units consist of two single units and are equipped with
2 oil chambers and possibly 2 pressure vents.
Explanation
1
Vent screw
2
Transport securing device
3
Special vent screw
Figure 4: Removing the vent plug and fitting the special pressure vent
