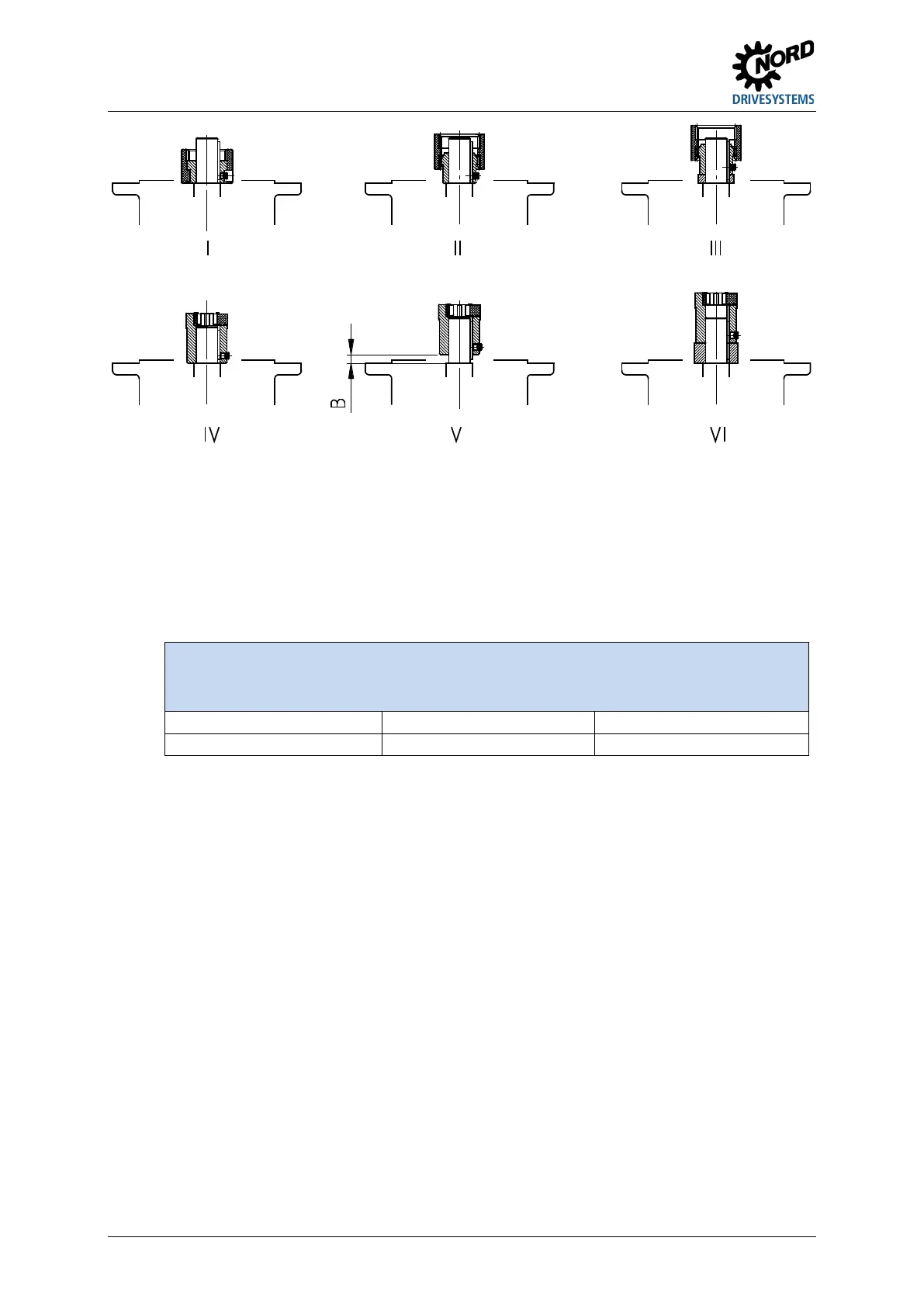

Figure 19: Fitting the coupling onto the motor shaft - various types of coupling
I Curved tooth coupling (BoWex

) one-piece
II Curved tooth coupling (BoWex

), two-piece
III Curved tooth coupling (BoWex

), two-part with spacer bush
IV Claw coupling (ROTEX

), two-piece
V Claw coupling (ROTEX

), two-piece, observe dimension B:
Standard helical gear units:
SK 0, SK 01, SK 20, SK 25, SK 30, SK 33 (2-stage)
SK 010, SK 200, SK 250, SK 300, SK 330 (3-stage)
IEC size 63
IEC size 71
Dimension B (Fig. V) B = 4.5 mm B = 11.5 mm
VI Claw coupling (ROTEX

), two-piece with spacer bush
