NORDAC FLEX (SK 200E ... SK 235E) – Brief instructions for Frequency Inverters
22 BU 0240 en-US-4920
2 Mounting and installation
Pos: 71 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/M otor mo ntag e - St a ndard [S K 1xx E, SK 2xxE ]/M ont age "G erät " [S K 1x xE / SK 2xx E] @ 1\mod_1341484255223_14638.docx @ 29902 @ 2 @ 1
2.1 Mounting SK 2xxE
The devices are available in various sizes depending on their output. They can be mounted on the
terminal box of a motor or in its immediate vicinity.

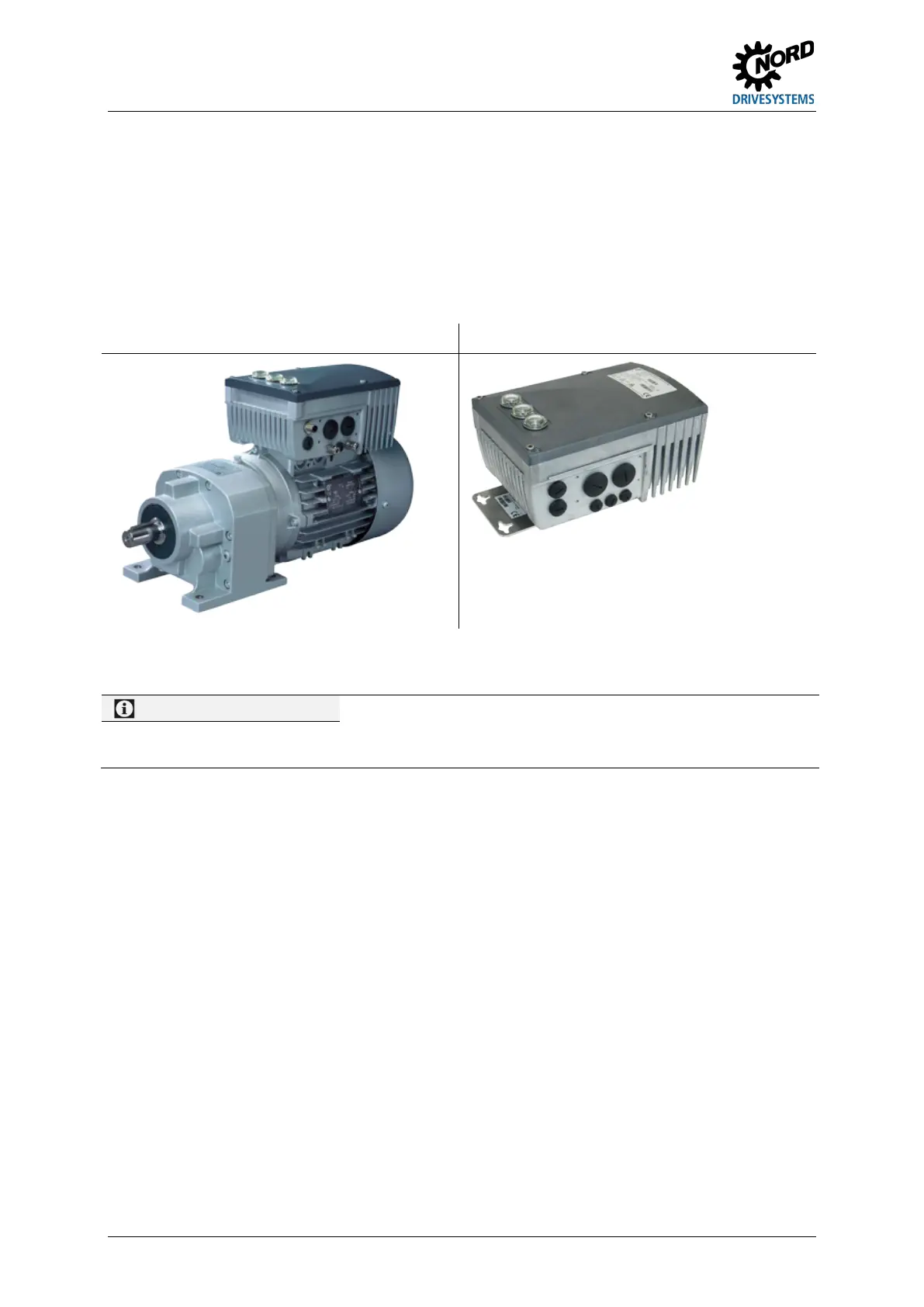

Motor-mounted version Wall-mounted version
When a complete drive unit (gear unit + motor + SK 2xxE) is delivered, the device is always fully
installed and tested.
IP6x-compliant devices must be installed by NORD since special measures have to be taken. IP6x components
that are retrofitted on site cannot guarantee this degree of protection.
Pos: 72 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M ont age und Ins tall ation/M ont age/M otorm ontag e - Standard [SK 1xxE, SK 2xxE]/Montage "Gerät"_Ergänzung 1 [SK 2xxE] @ 7\mod_1434102314079_14638.docx @ 224573 @ @ 1
The SK 2xxE is connected to the motor or the wall mounting kit using the size that is suitable for the
SK TI4-… connection unit . The connection unit can also be ordered separately for subsequent
mounting on an existing motor or to replace a different motor-mounted variable frequency drive.
The Connection Unit SK TI4 module includes the following components:
• Cast housing, seal (already glued in) and insulation plate
• Power terminal block in accordance with line power connection
• Control terminal block in accordance with SK 2xxE version
• Screw kit for mounting on the motor and terminal blocks
• Ready-made cables for motor and PTC thermistor connection
• Size 4 only: From hardware status "EAA" (variable frequency drive) or "EA" (connection unit)
toroidal core (ferrite) with fastening material
Pos: 73 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/M otor mo ntag e - Standard [SK 1xxE, SK 2xxE]/Montage "Gerät"_Ergänzung 2 [SK 1x0E / SK 2xxE] @ 7\mod_1434103340270_14638.doc x @ 224637 @ @ 1
