NORDAC FLEX (SK 200E ... SK 235E) – Brief instructions for Frequency Inverters
26 BU 0240 en-US-4920
Pos: 79 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M ont age/M ot ormo ntag e - St andar d [SK 1xx E, SK 2xx E]/A npassu ng an di e Motor baugr öße [SK 1xx E, SK 2x xE] @ 1\mod_1341491159493_14638.docx @ 30000 @ 4 @ 1
2.1.2.1 Adapters for motor size
In some cases, the terminal box attachments are different for different motor sizes. Therefore, it may
be necessary to use adapters to mount the device.
In order to ensure the maximum IPxx rating of the device for the entire unit, all elements of the drive
unit (e.g. motor) must correspond to at least the same degree of protection.
Information
Third-party motors
Check the adaptability of motors from other manufacturers individually!
Please refer to BU0320
for information about converting a drive to the device.
Pos: 80 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M ont age/M ot ormo ntag e - St andar d [SK 1xx E, SK 2xx E]/A npassu ng an di e Motor baugr öße_A dapt er [SK 2xx E] @ 7\mod_1434357316607_14638.docx @ 224946 @ 5 @ 1

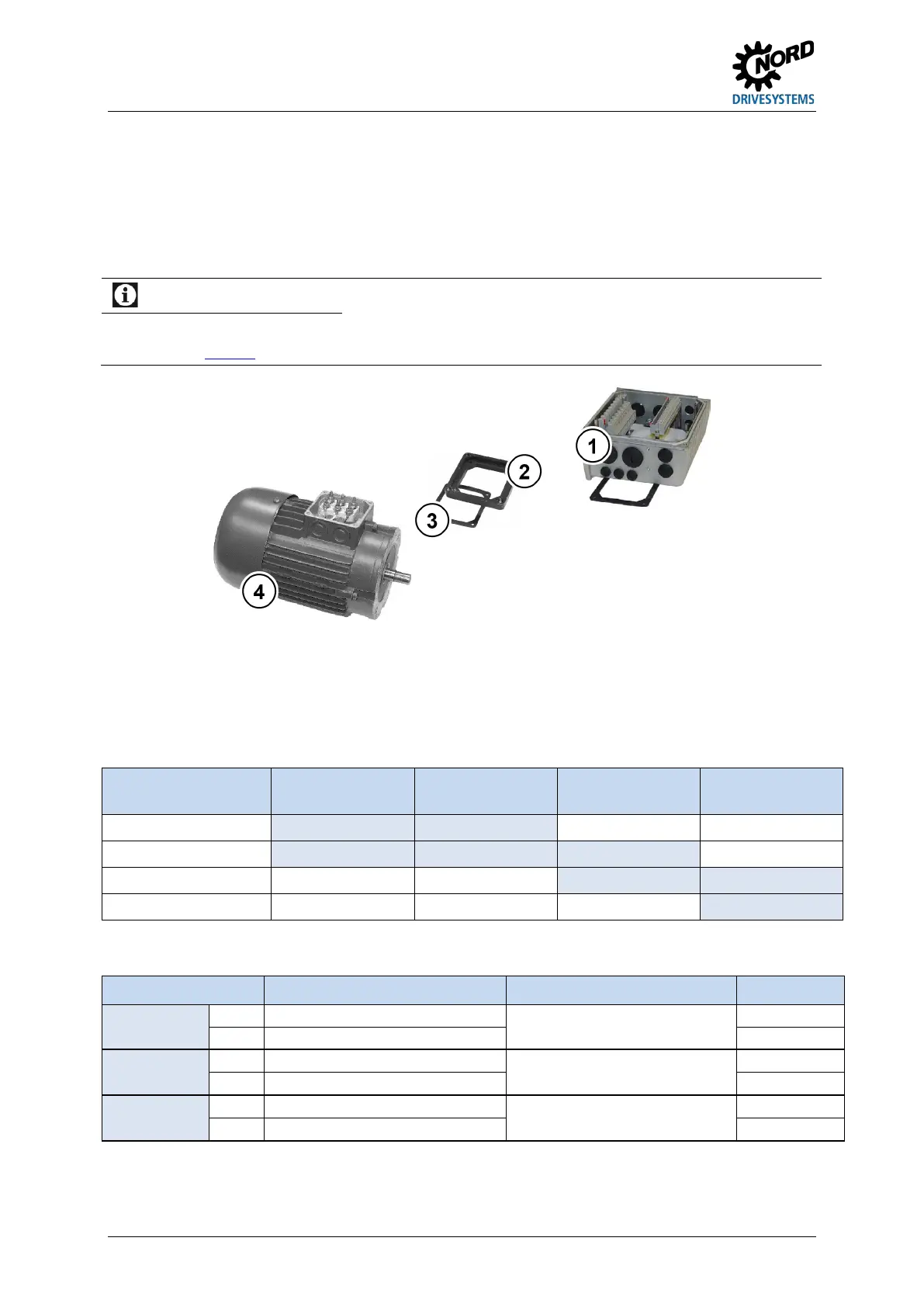

1
Connection unit SK TI4
2
Adapter plate
3
Gasket
4
Motor, size 71
Figure 4: Example of motor size adaptation
NORD motor
sizes
Add-on
SK 2xxE Size 1
Add-on
SK 2xxE Size 2
Add-on
SK 2xxE Size 3
Add-on
SK 2xxE Size 4
Size 63 – 71
with adapter kit I
with adapter kit I
Not possible
Not possible
Size 80 – 112
Direct mounting
Direct mounting
with adapter kit II
Not possible
Size 132
Not possible
Not possible
Direct mounting
with adapter kit III
Size 160-180
Not possible
Not possible
Not possible
Direct mounting
Overview of adapter kits
Adapter kit Designation Components Mat. No.
Adapter kit I
IP55
SK TI4-12-adapter kit_63-71
Adapter plate, terminal box frame
seal and screws
275119050
IP66
SK TI4-12-adapter kit_63-71-C
275274324
Adapter kit II
IP55
SK TI4-3-adapter kit_80-112
Adapter plate, terminal box frame
seal and screws
275274321
IP66
SK TI4-3-adapter kit_80--C
275274325
Adapter kit III
IP55
SK TI4-4-adapter kit_132
Adapter plate, terminal box frame
seal and screws
275274320
IP66
SK TI4-132-adapter kit_132-C
275274326
