NORDAC FLEX (SK 200E ... SK 235E) – Brief instructions for Frequency Inverters
62 BU 0240 en-US-4920
Pos: 25 1 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe trieb nahme/ SK 1xx E, SK 2xx E, -FDS/I nbe triebn ahme G erät/ Inbetr iebna hmeb eispi ele [SK 1x 0E, SK 2xxE] @ 1\mod_1343222512142_14638.docx @ 37574 @ 3 @ 1
4.2.3 Commissioning examples
All SK 2xxE devices can basically be operated in the condition in which they are delivered. Standard
motor data of a standard NORD 4-pole asynchronous motor of the same power is parameterized. The
PTC input must be bypassed if no motor PTC is available. Parameter (P428) must be changed if an
automatic startup with "Power On" is required.
Pos: 25 2 /Anlei tung en/El ektr onik/FU un d St art er/4 . I nbe tri ebn ahme/ SK 1xx E, S K 2x xE, -FD S/In betrie bnahm e Gerät /Mini malk onfig uratio n SK 2x0 E [SK 2xxE} @ 1\mod_1343222569379_14638.docx @ 37598 @ 4 @ 1

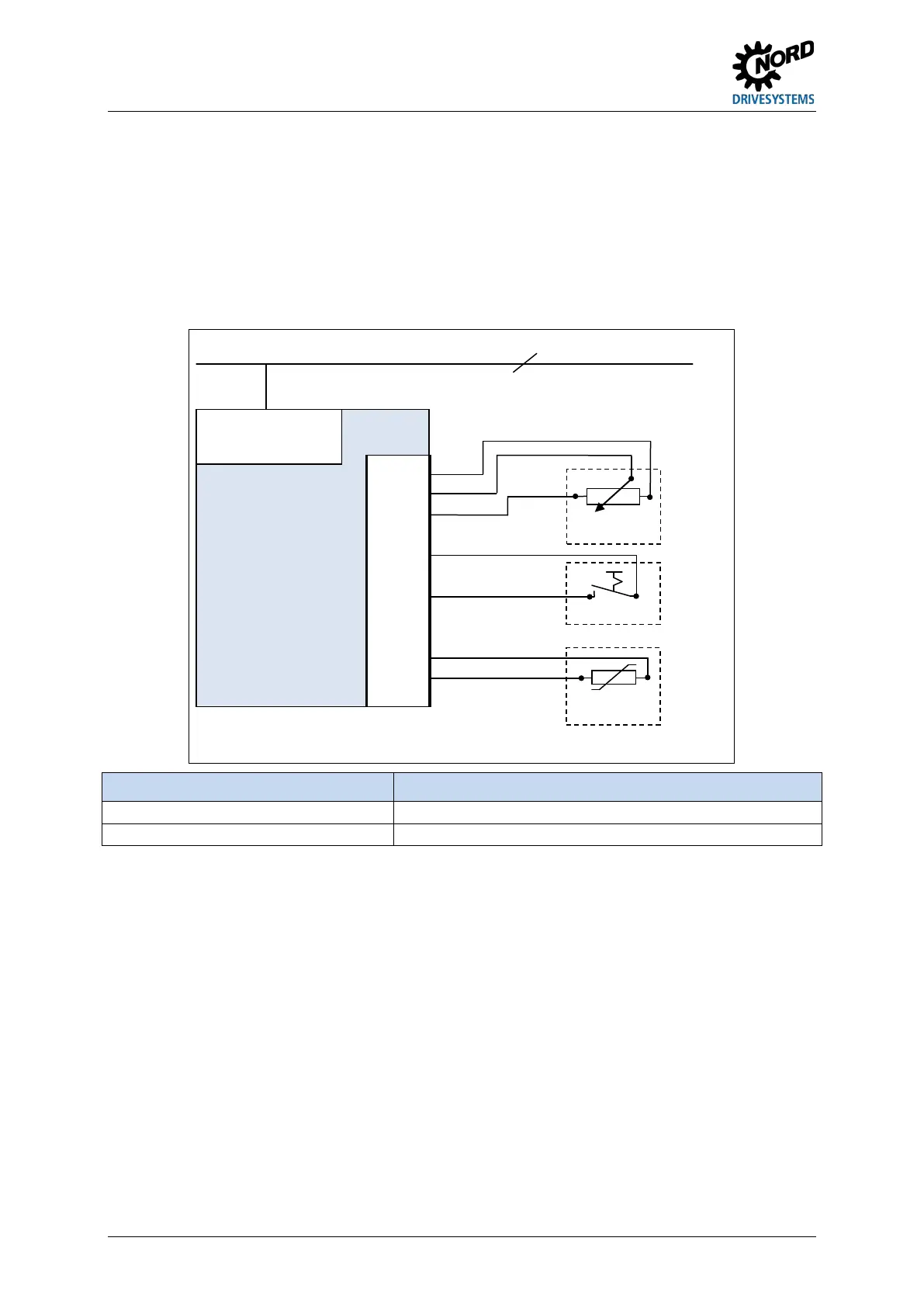

4.2.3.1 SK 2x0E minimum configuration
The variable frequency drive provides all the necessary control voltages (24 VDC/10 VDC).
Variable Frequency
Drives
SK 2x0E
-...
12*
14**
11
.
43
.
21
22
.
38
39
* in SK 220E and SK230E: use GND (terminal 40)
** in SK 220E and SK230E: use Analog In 2 (Terminal 16) and parameterise P400[02] to {1}
Function Setting
External 10 kΩ potentiometer
