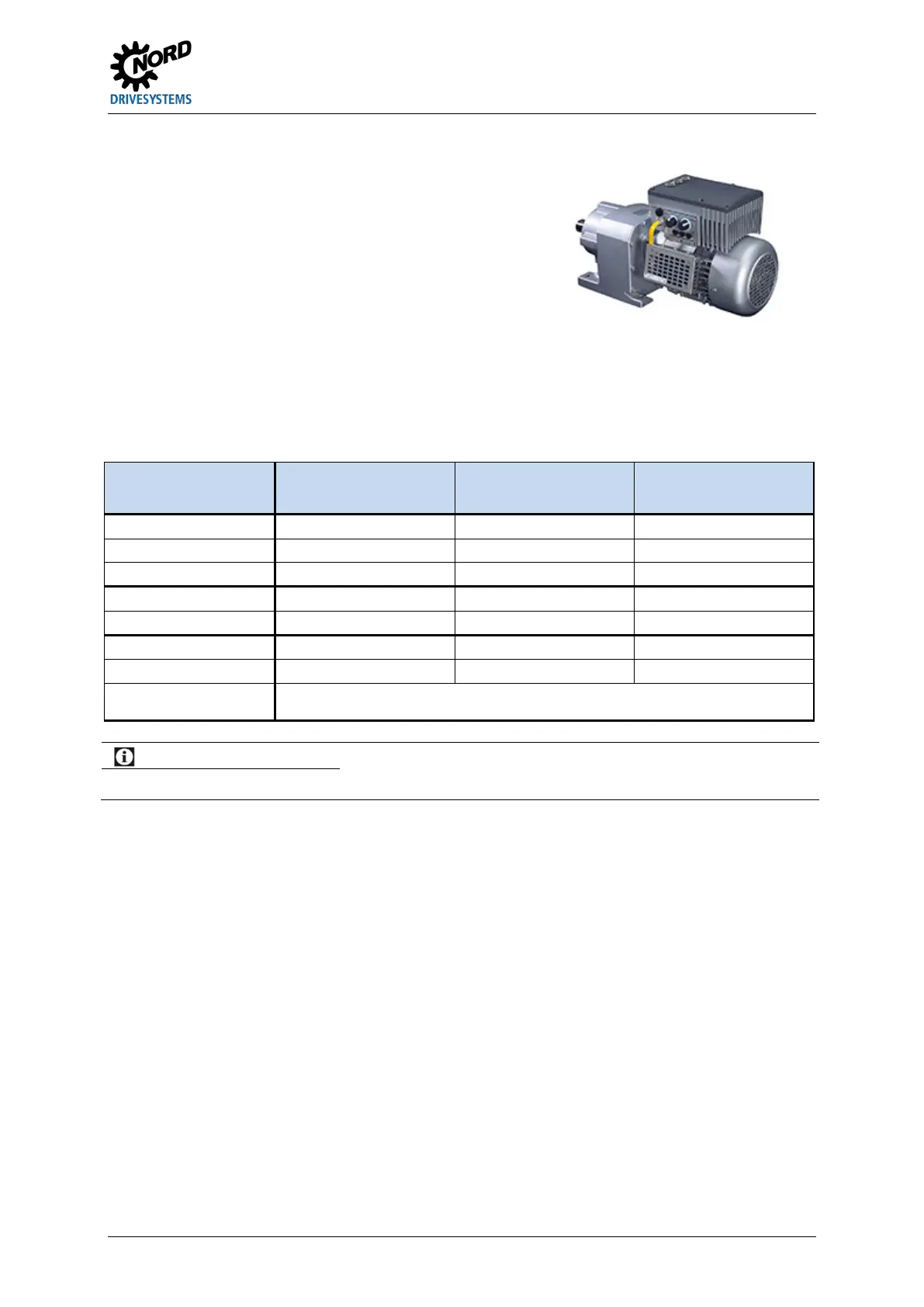

2.2.2 External braking resistor SK BRE4-... / SK BRW4-… / SK BREW4-…
The external braking
resistor is provided for energy
feedback, e.g. as occurs in pulsed drive units or lifting gear.
It may be necessary here to plan for the exact braking
resistor required (see adjacent figure).
Installation of an SK BRE4-… is not possible in combination
with wall mounting kit SK TIE4-WMK….. In this case, braking
resistors of type SK BREW4-…
are available as an
alternative and they can also be mounted on the variable
frequency drive.
Pos: 11 0 /Anlei tung en/El ektr onik/FU und Star ter/2 . Mon tage un d Install atio n/Zub ehör/ Brems wider stan d/SK 1x0 E, SK 2xx E/Ex terner Bremswi der stan d SK BRE4-. .. _Erg änz ung 1 @ 1 9\mod_1507880334919_14638.docx @ 2367795 @ @ 1
In addition SK BRW4-… type braking resistors are available for mounting on a wall near the device.
Pos: 11 1 /Anlei tu nge n/El ektr onik /FU un d St art er/2 . M on tage un d Inst all ati on/Z ub ehör/ Br ems wid erst an d/SK 1x0 E, SK 2x xE /El ektr isc he D ate n (B RE, BREW , BR W) [ SK 2x xE] @ 1 9\mod_1507876653198_14638.docx @ 2367723 @ 5 @ 1
Electrical data
Designation
1)
(IP67)
Resistor Max. continuous power
(P
n
)
Power consumption
2)
(P
max
)
SK BRx4-1-100-100
100
Ω
100 W
2.2 kWs
SK BRx4-1-200-100
200 Ω
100 W
2.2 kWs
SK BRx4-1-400-100
400 Ω
100 W 2.2 kWs
SK BRx4-2-100-200
100 Ω
200 W 4.4 kWs
SK BRx4-2-200-200
200 Ω
200 W 4.4 kWs
SK BRx4-3-050-450
50
Ω
450 W
3.0 kWs
SK BRx4-3-100-450
100
Ω
450 W
3.0 kWs
1)
SK BRx4-: Variants: SK BRE4-, SK BRW4-, SK BREW4-
2)
Maximum once within 120 s
Pos: 11 7 /Anlei tu nge n/El ektr onik /FU un d St art er/2 . M on tage un d Inst all ati on/Z ub ehör/ Br ems wid erst an d/SK 1x0 E, SK 2x xE /Ex ter ner Brems wi der stand SK BR E4-... _Erg änz ung 4-Info fel d "W ei ter e ..." [S K 1x 0E, SK 2xx E] @ 7\mod_1432127587649_14638. docx @ 221129 @ @ 1
Information
Braking resistor
Other versions or installation variants for external braking resistors can be provided upon request.
