4.2.2.3 DIP switches, analog input (only SK 2x0E)
The analog inputs in the SK 2x0E are suitable for current and voltage
setpoints. For correct processing of current setpoints (0-20 mA/4-20 mA)
the relevant DIP switch must be set for current signals ("ON").
Adjustment to wire-break-proof signals (2-10 V/4-20
mA) is made via
parameters (P402) and (P403).
Access to DIP switches

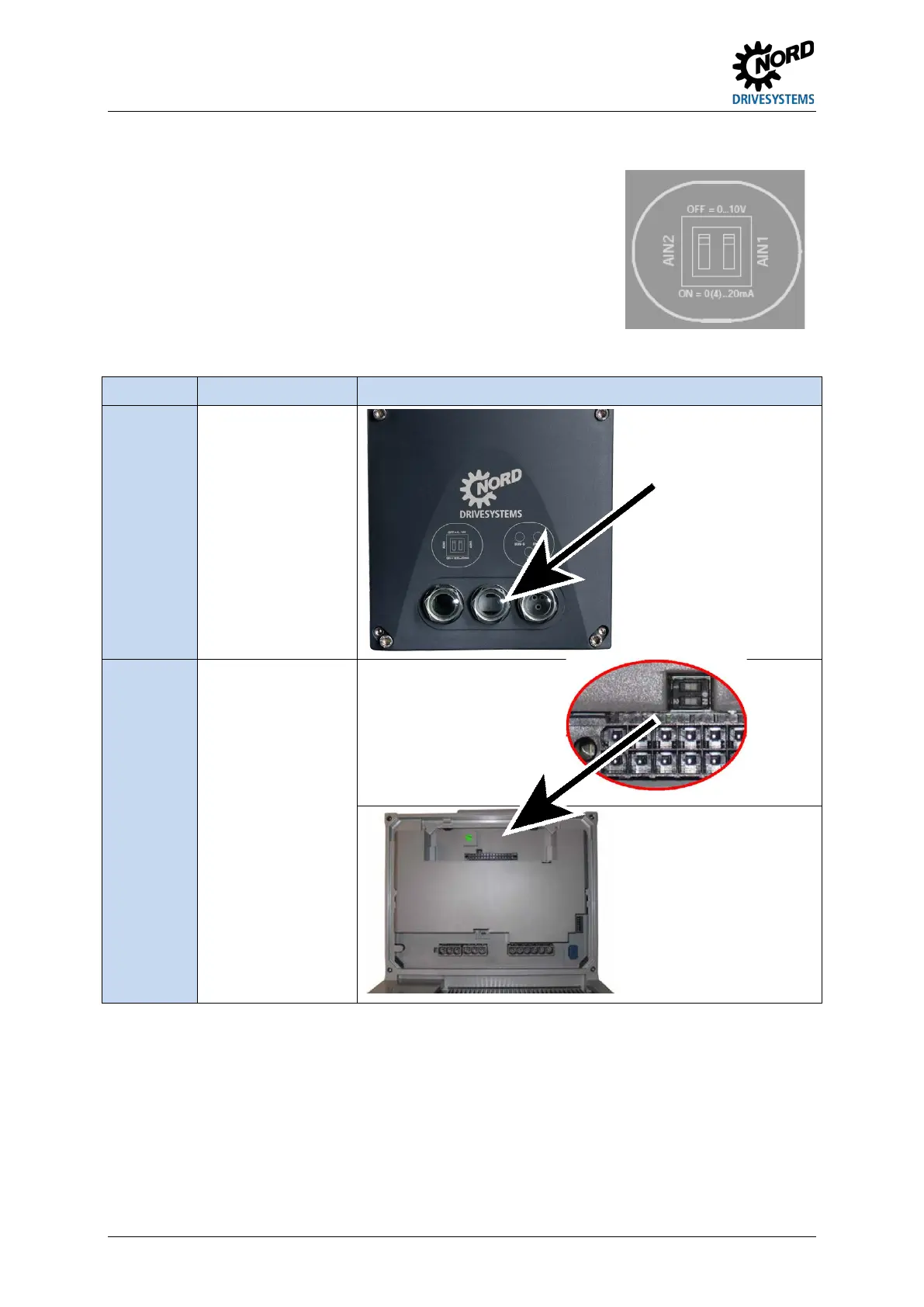

SK 2x0E Access Detail
Size 1 … 3
… from outside,
middle diagnostic
opening
Size 4 ... from inside
