2.4.2 Operation in potentially explosive environments - EAC Ex
Pos: 17 7.2 /A nleitu ngen/ Elektr onik /FU und St art er/ 2. M ont age un d Ins tal lati on/ ATE X un d E AC E X ( SK 1x xE, S K 20 0E) /EAC EX /Bet rie b i n expl osi onsg ef ähr det er Um g ebung - E AC EX_02 [S K 1xxE / SK 2xx E] @ 22\mod_1528899727448_14638.docx @ 2426869 @ @ 1
All of the conditions which must be observed for operation of the device in an explosion hazard
environment according to EAC Ex are summarized below. The conditions according to  Section
2.4.1 "Operation in potentially explosive environments - ATEX zone 22 3D "apply .Deviations which are
relevant for approval according to EAC Ex are described below and must be complied with .
Pos: 17 7.3 /A nleitu ngen/ Elektr onik /FU und St art er/2. M ontage und Inst allati on/AT EX und E AC EX (SK 1x xE, SK 200E) /EAC EX /Modi fizier ung d es Ger ätes - (EAC Ex) _0 1 [S K 1xxE / SK 2xx E] @ 22\mod_1528900809619_14638.docx @ 2426941 @ 4 @ 1
2.4.2.1 Modification of the device
 Section 2.4.1.1applies.

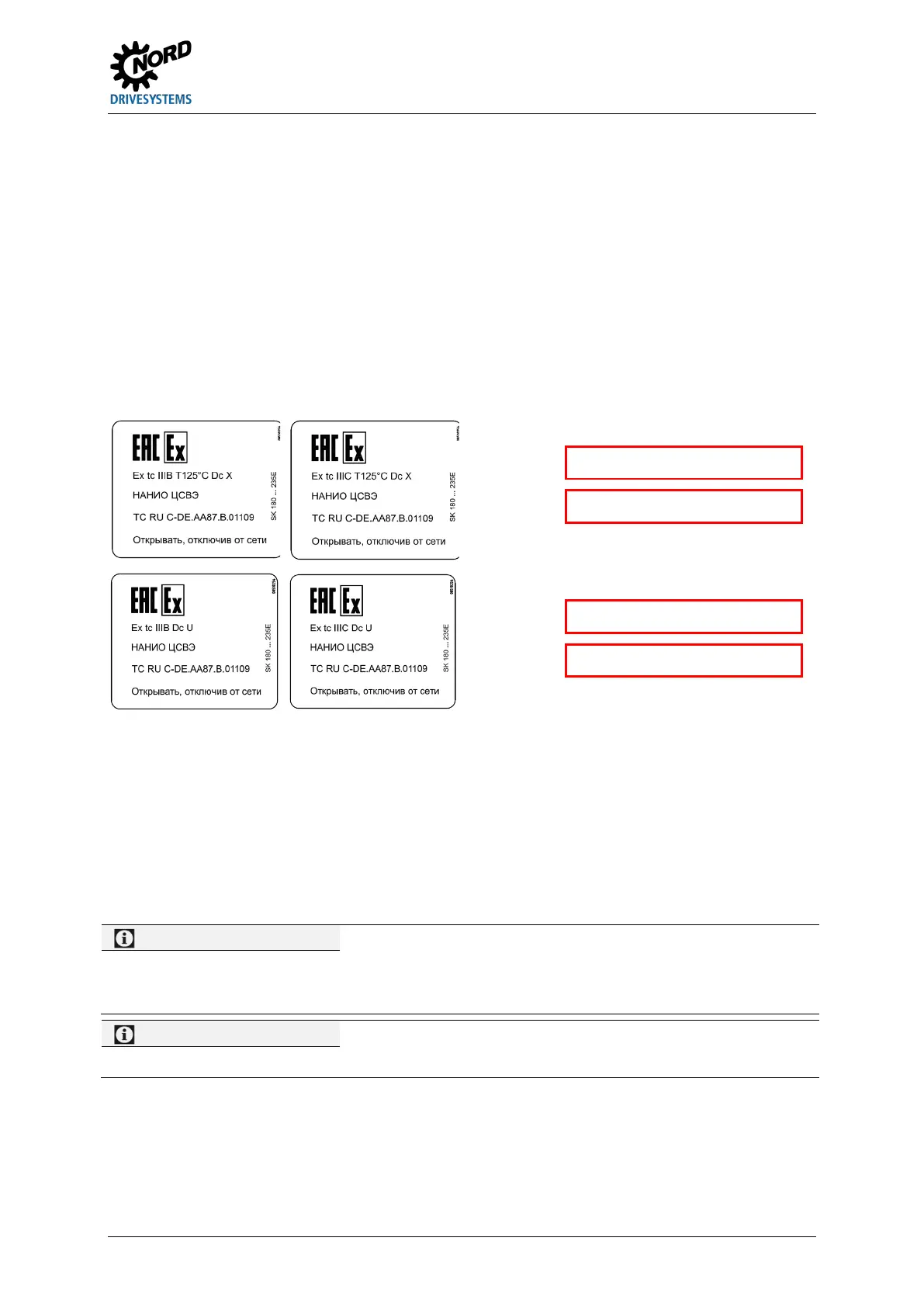

Labeling of the device according to EAC EX deviates as follows.
Device labeling
The following applies for wall mounted devices:
IP55:
Ex tc IIIB T125 °C Dc X
IP66:
Ex tc IIIC T125 °C Dc X
For motor mounted devices, the following apply:
IP55:
Ex tc IIIB Dc U
IP66:
Ex tc IIIC Dc U
Allocation:
• Protection with "housing"
• Procedure "A" zone "22" category 3D
• IP55/IP66 rating (according to the device)
IP66 is required for conductive dust
• Maximum surface temperature 125°C
• Ambient temperature -20°C to +40°C
Pos: 17 7.4 /A nleitu ngen/ Elektr onik /FU und St art er/2. M ontage und Inst allati on/AT EX und E AC EX (SK 1x xE, SK 200E) /EAC EX /INFOR MATI ON - Kennzeichen "U" @ 22\mod_1528902567435_14638.docx @ 2426977 @ @ 1
Information
Code "U"
Code "U" applies for devices which are intended for motor mounting. Devices which are so labeled are classed
as incomplete and may only be operated together with a corresponding motor. If a device with code "U" is
mounted on a motor, the codes and restrictions indicated on the motor or geared motor also apply.
Pos: 17 7.5 /A nleitu ngen/ Elektr onik /FU und St art er/2. M ontage und Inst allati on/AT EX und E AC EX (SK 1x xE, SK 200E) /EAC EX /INFOR MATI ON - Kennzeichen "X" @ 22\mod_1529310271690_14638.docx @ 2427071 @ @ 1
Information
Code "X"
Code "X" indicates that the permissible ambient temperature range is between -20°C and +40°C.
Pos: 177. 6 / Anlei tu ngen /El ektr onik /F U un d St art er/ 2. M ont age un d Ins talla tion/ ATEX un d EAC EX ( SK 1xxE, SK 200 E)/EAC EX/Wei terf ühren de Infor mati onen [S K 1x0E, S K 2xxE] @ 22\mod_1529310638187_14638.docx @ 2427106 @ 4 @ 1
