4 Commissioning
BU 0240 en-US-4920 63
Pos: 25 4 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe trieb nahme/ SK 1xx E, SK 2xx E, -FDS/I nbe triebn ahme G erät/ Minim alko nfigur ation SK 2x5E [SK 2xxE] @ 1\mod_1345558127539_14638.doc x @ 38273 @ 45 @ 1

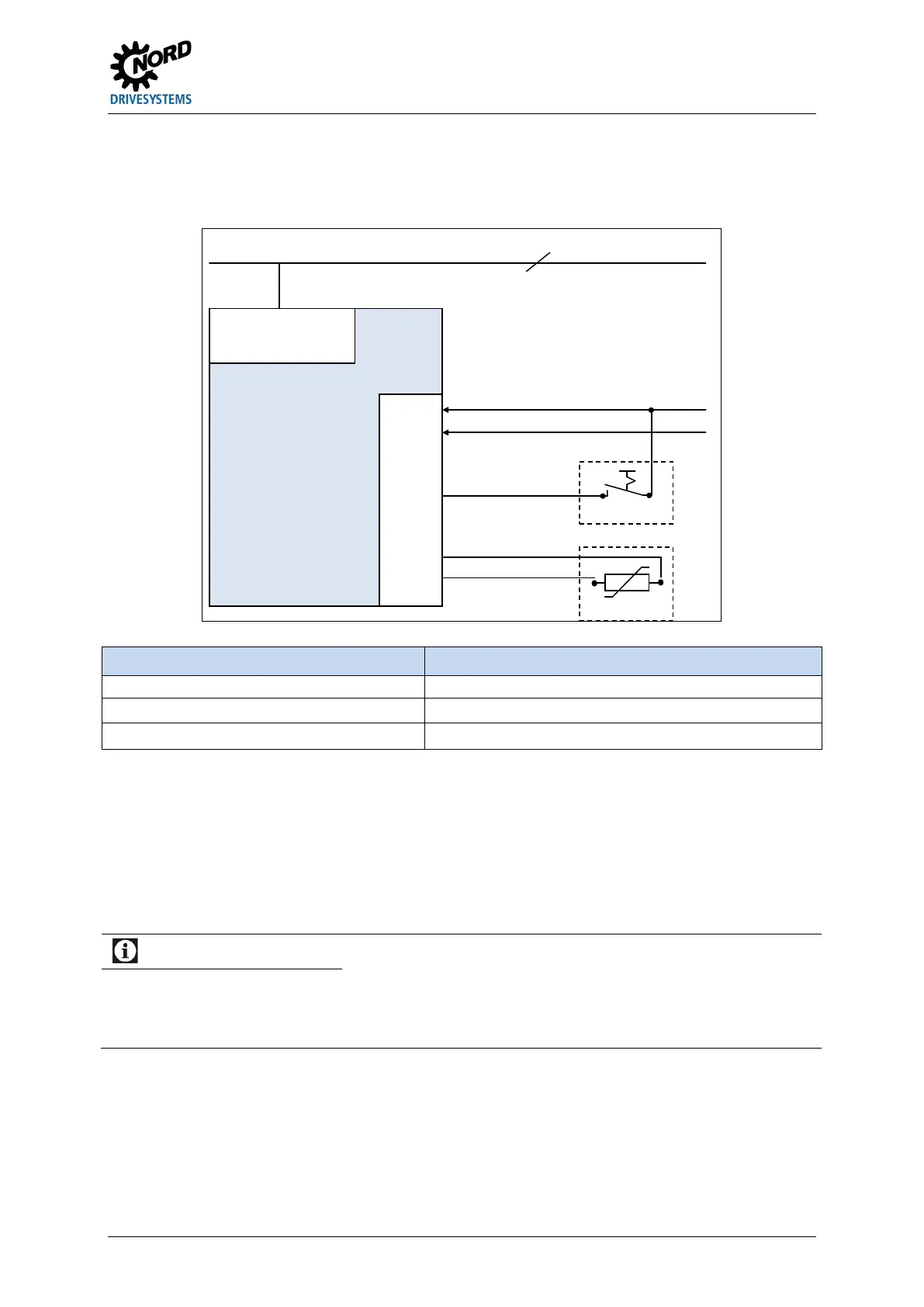

4.2.3.2 SK 2x5E minimum configuration
Minimal configuration without options
The variable frequency drive must be provided with an external control voltage.
Variable Frequency
Drives
SK 2x5E-...
Control terminal block
44
40
.
.
21
22
.
38
39
L1 -
L2/N
- L3
115/230/400V
24V=
GND
1/3~ 115/230/400V + PE
Switch S1
Motor
PTC thermistor
Function Setting
Setpoint
Integrated potentiometer P1
Frequency ramp Integrated potentiometer P2
Controller enable
External switch S1
Pos: 25 5 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbe tri ebn ahme/ SK 1xx E, S K 2x xE, -FD S/In betrie bnahm e Gerät /Mini malk onfig uratio n SK 2x5 E_01 (.. . mit Opt ionen) [SK 2xx E] @ 8\mod_1441629963804_14638.docx @ 240533 @ 5 @ 1
Minimum configuration with options
One switch and one potentiometer (such as SK CU4-POT) are required in order to implement
completely autonomous operation (independent of control lines, etc.). In combination with an
integrated power supply unit (SK CU4-…-24V), a solution that only has the power supply line can be
set up with an SK 2x5E, and demand-oriented speed and rotation direction control can be ensured
( Section 3.1.2 "Potentiometer adapter, SK CU4-POT").
Information
Convert analog signal
An 8-bit A/D - converter is integrated in the SK TU4-…-24V and SK CU4-…-24V power supply units. This makes
it possible to connect a potentiometer or another analog setpoint source to the power supply unit. The power
supply unit can convert the analog setpoint into an appropriate pulse signal. This signal can be connected to a
digital input of the variable frequency drive and processed by it as a setpoint.
