3 Display, operation and options
BU 0240 en-US-4920 49
3 Display, operation and options
Pos: 18 3 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Anz eige , Bedie nung un d Optio nen_ 01 [SK 2xx E] @ 8\mod_1441111756429_14638.docx @ 238818 @ @ 1
In the factory default configuration, without additional options, the diagnostic LEDs are externally
visible. These indicate the actual device status. Two potentiometers (only SK 2x5E) and 8 DIP
switches (S1) are provided in order to set the most important parameters. In this minimum
configuration no other adapted parameters are stored in the external (plug-in) EEPROM. The only
exception is data concerning operating hours, faults and fault circumstances. This data can only be
saved in the external EEPROM (memory module) up to firmware version V1.2. As of firmware version
1.3, this data is saved in the internal EEPROM of the variable frequency drive.
The memory module (external EEPROM) can be pre-parameterized independently of the variable
frequency drive using programming adapter SK EPG-3H.

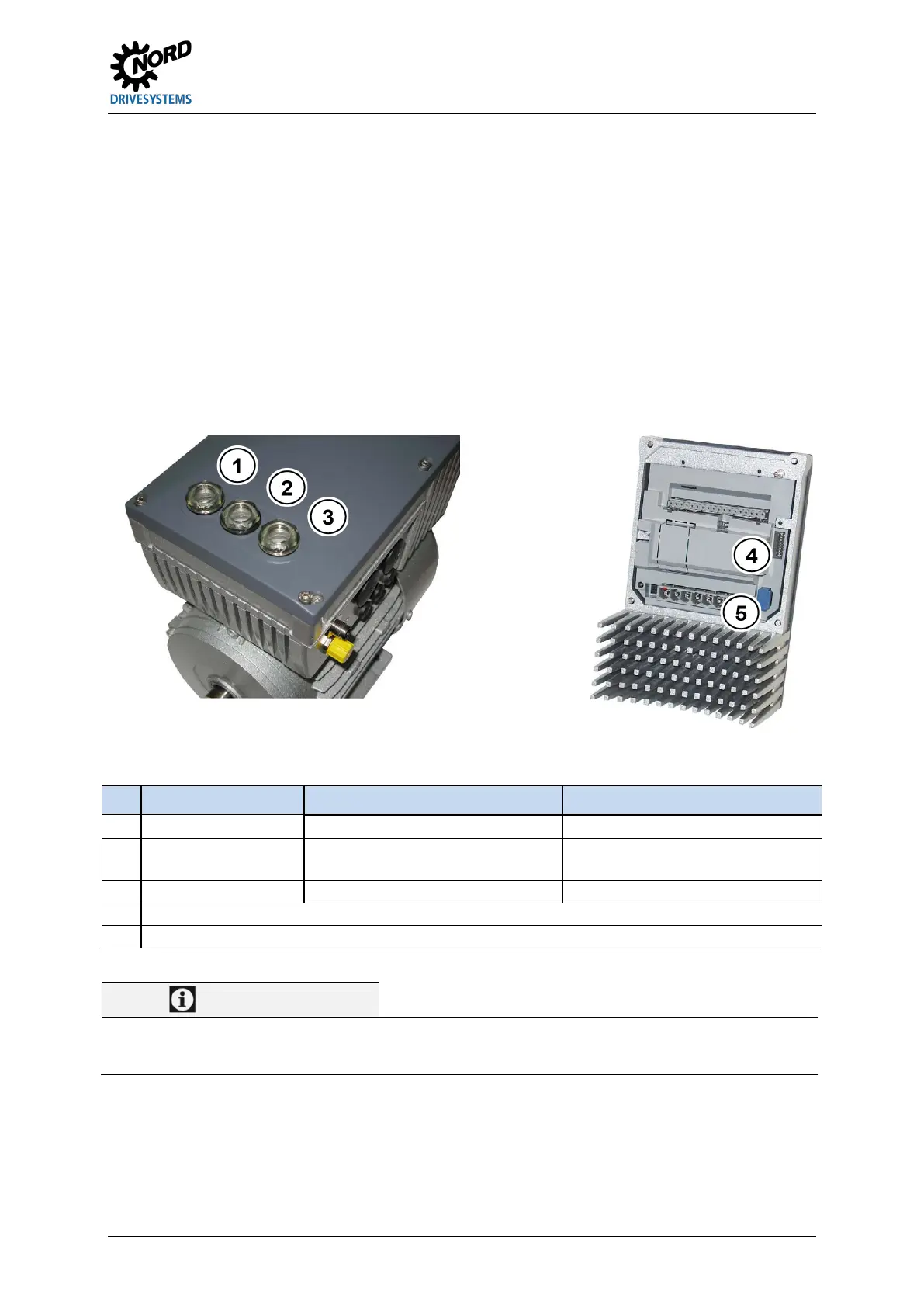

Figure 5: SK 2xxE (size 1), top view
Figure 6: SK 2xxE (size 1), internal view
No. Designation SK 2x0E size 1 … 3 SK 2x5E and SK 2x0E size 4
(250 Ω for current setpoint)
Pos: 18 4 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Bedi enu ng [SK 1xx E, 2xx E, -FDS] /Bedi en- und P aram etr i erbox en, Ver we ndu ng_ 02_IN FOR MA TION _Dr ehm om ent [SK 1xx E, SK 2 xxE , SK xxx E-F DS] @ 42\m od_1590584836809_1463 8. doc x @ 262 865 9 @ @ 1
,
Diagnostic caps’ tightening torques
The tightening torque for the transparent diagnostic caps (inspection glasses) is 2.5 Nm.
